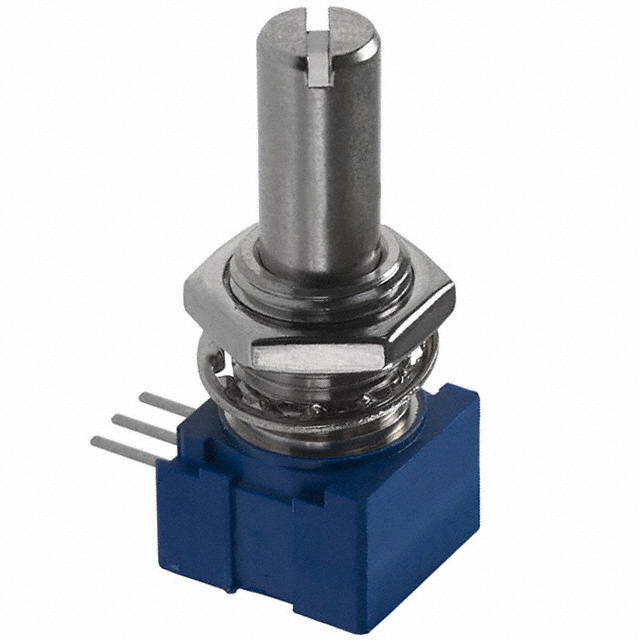

51AAD Series
Manufacturer: Bourns Inc.
Beta
⌘K
PANEL CONTROL - 1/2" (12.5MM) SQ 1-TURN /TRAY PACKAGING ROHS COMPLIANT: YES
| Part | Size - Body [y] | Size - Body [x] | Size - Body [y] | Size - Body [x] | Built in Switch | Number of Turns | Rotation | Mounting Type | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Taper | Features | Power (Watts) | Number of Gangs | Resistance (Ohms) | Resistive Material | Bushing Thread | Adjustment Type | Temperature Coefficient | Termination Style | Actuator Type | Tolerance | Actuator Length [x] | Actuator Length [x] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | None | 1 | 290 ° | Panel Mount | 6.35 mm | 0.25 in | Linear | Sealed | 1 W | 1 | 100k | Cermet | 3/8-32 | Side Adjustment | 150 ppm/°C | PC Pins | Slotted | 10 % | 19.05 mm | 0.75 in | |
Bourns Inc. | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | None | 1 | 290 ° | Panel Mount | 6.35 mm | 0.25 in | Linear | Sealed | 0.5 W | 1 | 10k | Conductive Plastic | 3/8-32 | Side Adjustment | 1000 ppm/°C | PC Pins | Slotted | 20 % | 19.05 mm | 0.75 in | 0.5 W |
Bourns Inc. | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | None | 1 | 290 ° | Panel Mount | 6.35 mm | 0.25 in | Linear | Sealed | 1 W | 1 | 10k | Cermet | 3/8-32 | Side Adjustment | 150 ppm/°C | PC Pins | Slotted | 10 % | 19.05 mm | 0.75 in | |
Bourns Inc. | 0.492 " | 0.521 " | 12.5 mm | 13.25 mm | None | 1 | 290 ° | Panel Mount | 6.35 mm | 0.25 in | Linear | Sealed | 1 W | 1 | 10k | Cermet | 3/8-32 | Side Adjustment | 150 ppm/°C | PC Pins | Slotted | 10 % | 19.05 mm | 0.75 in |
