6319 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

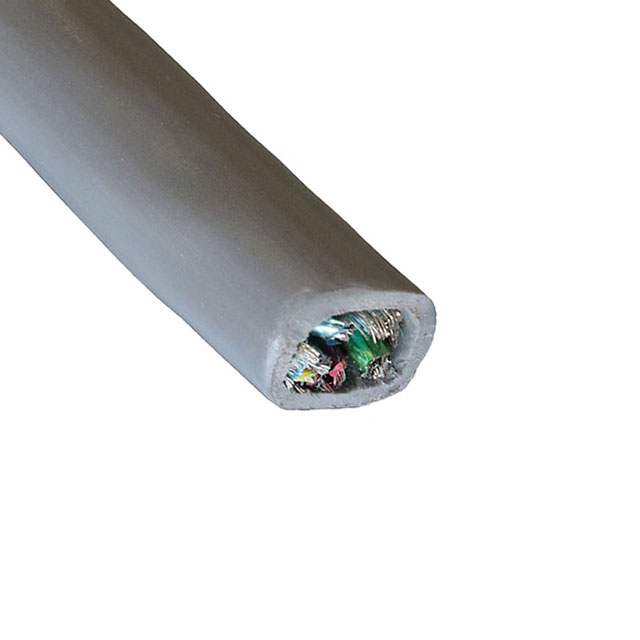

MULTI-PAIR 10COND 24AWG
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Features | Conductor Material | Shield Type | Jacket Color | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Length | Length | Jacket (Insulation) Material | Cable Type | Conductor Insulation | Voltage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 7 | 32 AWG | UL Style 2493 | Drain Wire | Copper Tinned | Braid Foil | Slate | 10 | 1.219 mm | 0.048 in | 24 AWG | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | Multi-Pair | Foam Polypropylene (FPP) | 300 VDC | ||
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 7 | 32 AWG | UL Style 2493 | Drain Wire | Copper Tinned | Braid Foil | Slate | 10 | 1.219 mm | 0.048 in | 24 AWG | Poly-Vinyl Chloride (PVC) | Multi-Pair | Foam Polypropylene (FPP) | 300 VDC | 100 ft | 30.5 m |
