FFB1248 Series

Catalog

FAN AXIAL 120X38MM 48VDC WIRE

Part	Material - Blade	Current Rating (Amps)	Material - Frame	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Termination	Approval Agency	Bearing Type	RPM	Power (Watts)	Features	Air Flow	Air Flow	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	Weight	Weight	Voltage - Rated	Static Pressure	Static Pressure	Noise	Fan Type
Delta Electronics FFB1248VHE-F00	Plastic	0.28 A	Plastic	70000 Hrs	28 V	56 VDC	3 Wire Leads	CE CSA UL VDE	Ball	3200 RPM	13.44 W	Locked Rotor Protection Speed Sensor (Tach)	151.8 CFM	4.25 m³/min	120 mm	120 mm	-10 °C	60 °C	38 mm	370.13 g	0.816 lb	48 VDC	0.445 in H2O	110.8 Pa	53 dB	Tubeaxial

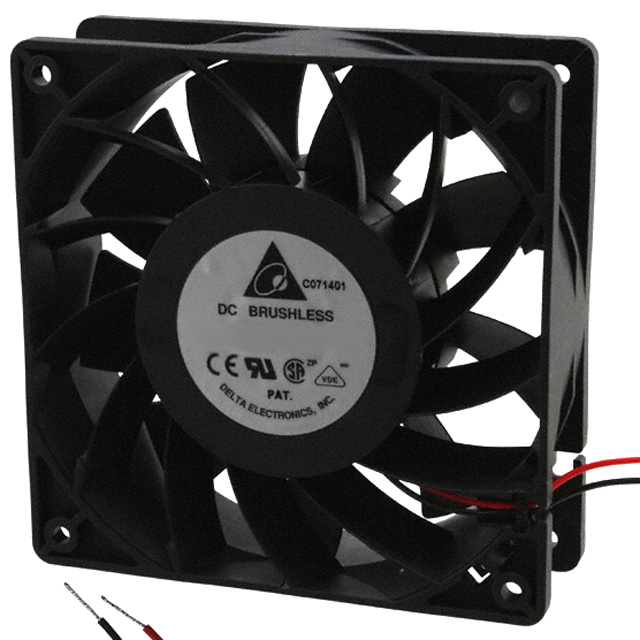

Delta Electronics FFB1248SHE	Plastic	0.38 A	Plastic	70000 Hrs	28 V	56 VDC	2 Wire Leads	CE CSA UL VDE	Ball	3600 RPM	18.24 W		170.9 CFM	4.79 m³/min	120 mm	120 mm	-10 °C	60 °C	38 mm	370.13 g	0.816 lb	48 VDC	0.563 in H2O	140.2 Pa	56.5 dB	Tubeaxial
Delta Electronics FFB1248VHE	Plastic	0.28 A	Plastic	70000 Hrs	28 V	56 VDC	2 Wire Leads	CE CSA UL VDE	Ball	3200 RPM	13.44 W		151.8 CFM	4.25 m³/min	120 mm	120 mm	-10 °C	60 °C	38 mm	370.13 g	0.816 lb	48 VDC	0.445 in H2O	110.8 Pa	53 dB	Tubeaxial
Delta Electronics FFB1248VHE-R00	Plastic	0.28 A	Plastic	70000 Hrs	28 V	56 VDC	3 Wire Leads	CE CSA UL VDE	Ball	3200 RPM	13.44 W	Locked Rotor Sensor	151.8 CFM	4.25 m³/min	120 mm	120 mm	-10 °C	60 °C	38 mm	370.13 g	0.816 lb	48 VDC	0.445 in H2O	110.8 Pa	53 dB	Tubeaxial
Delta Electronics FFB1248EH-R00	Plastic	320 mA	Plastic	70000 Hrs	28 V	53 VDC	3 Wire Leads	CE CSA UL VDE	Ball	4000 RPM	15.36 W	Locked Rotor Sensor	150.3 CFM	4.21 m³/min	120 mm	120 mm	-10 °C	60 °C	25.4 mm	205.02 g	0.452 lb	48 VDC	0.489 in H2O	121.9 Pa	56.4 dB(A)	Tubeaxial
Delta Electronics FFB1248EHE-F00	Plastic	0.5 A	Plastic	70000 Hrs	28 V	53 VDC	3 Wire Leads	CE CSA UL VDE	Ball	4000 RPM	24 W	Locked Rotor Protection Speed Sensor (Tach)	190 CFM	5.32 m³/min	120 mm	120 mm	-10 °C	50 °C	38 mm	370.13 g	0.816 lb	48 VDC	0.7 in H2O	174.4 Pa	59 dB(A)	Tubeaxial

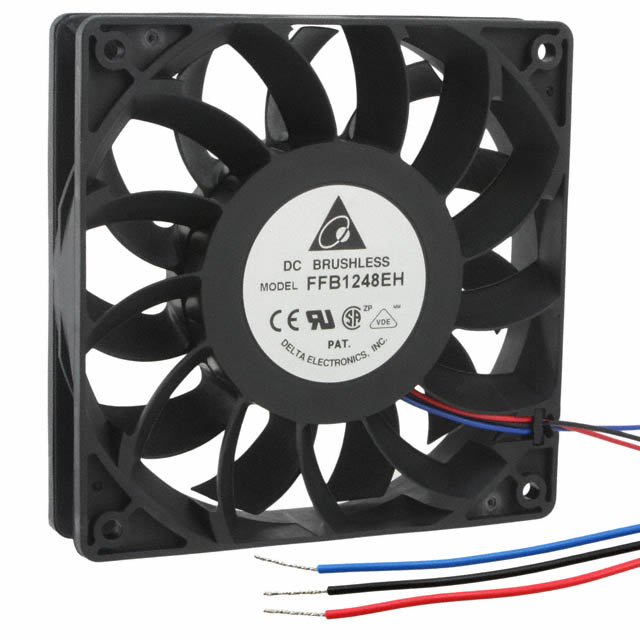

Delta Electronics FFB1248EH-F00	Plastic	320 mA	Plastic	70000 Hrs	28 V	53 VDC	3 Wire Leads	CE CSA UL VDE	Ball	4000 RPM	15.36 W	Locked Rotor Protection Speed Sensor (Tach)	150.3 CFM	4.21 m³/min	120 mm	120 mm	-10 °C	60 °C	25.4 mm	205.02 g	0.452 lb	48 VDC	0.489 in H2O	121.9 Pa	56.4 dB(A)	Tubeaxial

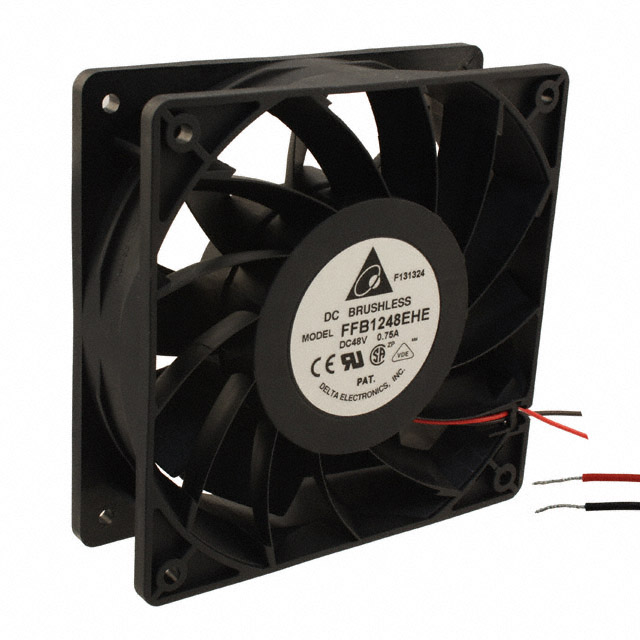

Delta Electronics FFB1248EHE	Plastic	0.5 A	Plastic	70000 Hrs	28 V	53 VDC	2 Wire Leads	CE CSA UL VDE	Ball	4000 RPM	24 W		190 CFM	5.32 m³/min	120 mm	120 mm	-10 °C	50 °C	38 mm	370.13 g	0.816 lb	48 VDC	0.7 in H2O	174.4 Pa	59 dB(A)	Tubeaxial
Delta Electronics FFB1248SHE-R00	Plastic	0.38 A	Plastic	70000 Hrs	28 V	56 VDC	3 Wire Leads	CE CSA UL VDE	Ball	3600 RPM	18.24 W	Locked Rotor Sensor	170.9 CFM	4.79 m³/min	120 mm	120 mm	-10 °C	60 °C	38 mm	370.13 g	0.816 lb	48 VDC	0.563 in H2O	140.2 Pa	56.5 dB	Tubeaxial
