725-038 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 38POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Pitch	Pitch	Card Type	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination	Mounting Type	Read Out	Contact Material	Contact Type	Color	Number of Positions	Gender	Termination Rows	Number of Positions/Bay/Row [custom]	Number of Rows

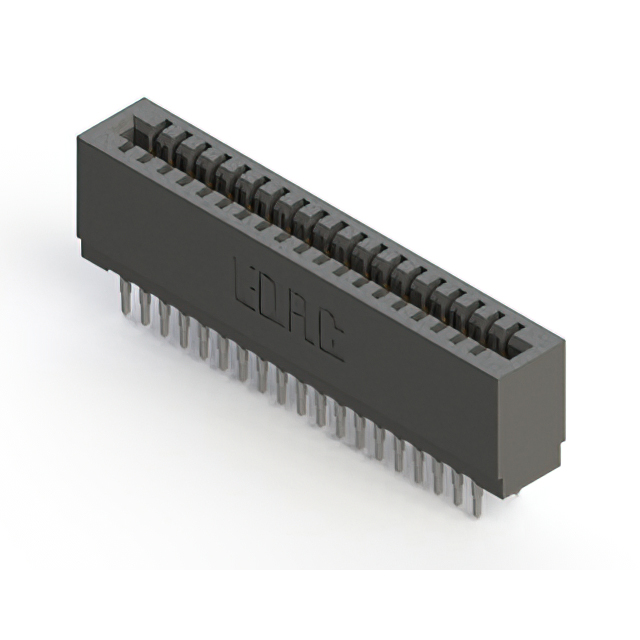

EDAC Inc. 725-038-520-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.1 "	2.54 mm	Non Specified - Dual Edge	19	-40 C	105 ░C	30 Áin	0.76 Ám	Gold	Press-Fit	Through Hole	Dual	Copper Alloy	Cantilever	Black	38	Female

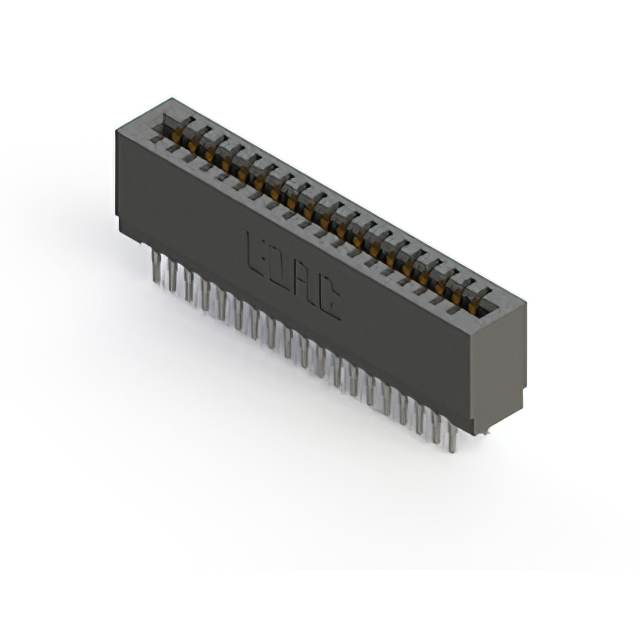

EDAC Inc. 725-038-545-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.1 "	2.54 mm	Non Specified - Dual Edge	19	-40 C	105 ░C	30 Áin	0.76 Ám	Gold	Press-Fit Wire Wrap	Through Hole	Dual	Copper Alloy	Cantilever	Black	38	Female
EDAC Inc. 725-038-540-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.1 "	2.54 mm	Non Specified - Dual Edge	19	-40 C	105 ░C	30 Áin	0.76 Ám	Gold	Press-Fit Wire Wrap	Through Hole	Dual	Copper Alloy	Cantilever	Black	38	Female
EDAC Inc. 725-038-560-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	2	0.1 "	2.54 mm	Non Specified - Dual Edge	19	-40 C	105 ░C	30 Áin	0.76 Ám	Gold	Press-Fit	Through Hole	Dual	Copper Alloy	Cantilever Make Before Break	Black	38	Female

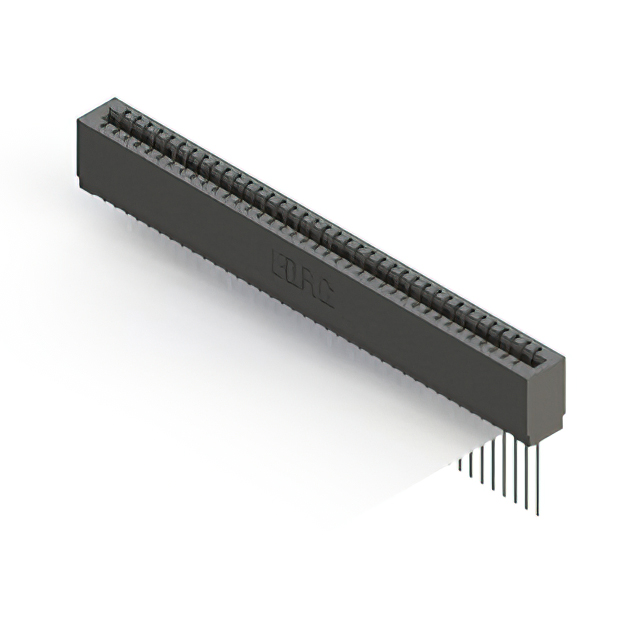

EDAC Inc. 725-038-541-101	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm		0.1 "	2.54 mm	Non Specified - Single Edge		-40 C	105 ░C	30 Áin	0.76 Ám	Gold	Press-Fit Wire Wrap	Through Hole	Single	Copper Alloy	Cantilever	Black	38	Female	1	38	1
EDAC Inc. 725-038-540-101	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm		0.1 "	2.54 mm	Non Specified - Single Edge		-40 C	105 ░C	30 Áin	0.76 Ám	Gold	Press-Fit Wire Wrap	Through Hole	Single	Copper Alloy	Cantilever	Black	38	Female	1	38	1
