887-050 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 50POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Card Type	Contact Material	Color	Contact Finish Thickness	Contact Finish Thickness	Read Out	Number of Positions/Bay/Row	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Gender	Termination	Contact Type	Number of Positions	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Features
EDAC Inc. 887-050-500-203	Polyphenylene Sulfide (PPS)	2	3.96 mm	0.156 in	125 °C	-40 C	Through Hole	Non Specified - Dual Edge	Copper Alloy	Black	0.25 Ám	10 Áin	Dual	25	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	Solder Eyelet(s)	Cantilever	50	0.116 "	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 887-050-544-203	Polyphenylene Sulfide (PPS)	2	3.96 mm	0.156 in	125 °C	-40 C	Through Hole	Non Specified - Dual Edge	Copper Alloy	Black	0.25 Ám	10 Áin	Dual	25	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	Wire Wrap	Cantilever	50	0.116 "	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 887-050-558-202	Polyphenylene Sulfide (PPS)	2	3.96 mm	0.156 in	125 °C	-40 C	Right Angle Through Hole	Non Specified - Dual Edge	Copper Alloy	Black	0.25 Ám	10 Áin	Dual	25	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	Solder	Cantilever	50	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm

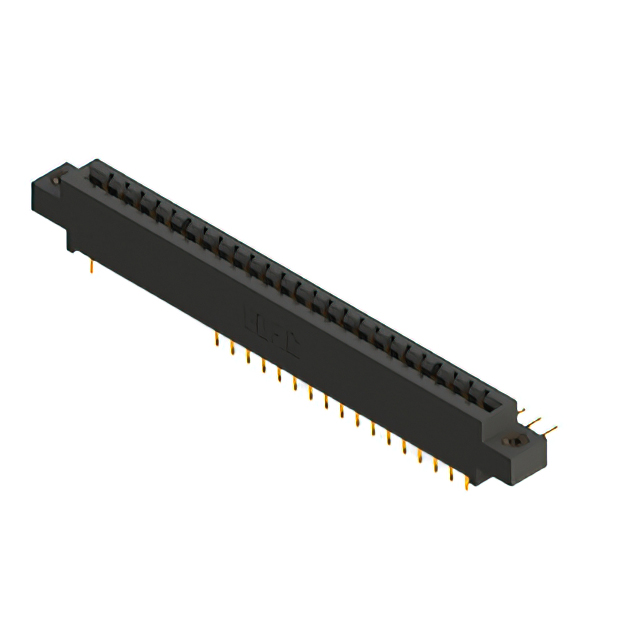

EDAC Inc. 887-050-558-808	Polyphenylene Sulfide (PPS)	2	3.96 mm	0.156 in	125 °C	-40 C	Right Angle Through Hole	Non Specified - Dual Edge	Copper Alloy	Black	0.25 Ám	10 Áin	Dual	25	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	Solder	Cantilever	50		4-40 Threaded Insert Top Mount Opening

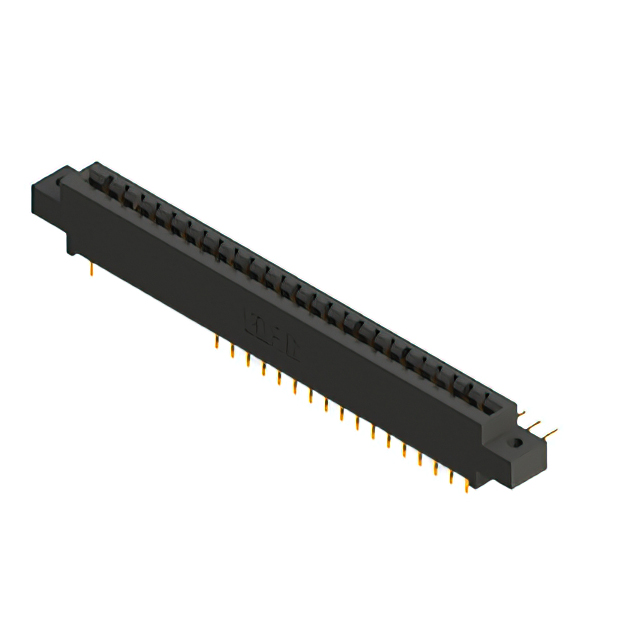

EDAC Inc. 887-050-559-802	Polyphenylene Sulfide (PPS)	2	3.96 mm	0.156 in	125 °C	-40 C	Right Angle Through Hole	Non Specified - Dual Edge	Copper Alloy	Black	0.25 Ám	10 Áin	Dual	25	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	Solder	Cantilever	50	0.128 "		3.25 mm
EDAC Inc. 887-050-544-208	Polyphenylene Sulfide (PPS)	2	3.96 mm	0.156 in	125 °C	-40 C	Through Hole	Non Specified - Dual Edge	Copper Alloy	Black	0.25 Ám	10 Áin	Dual	25	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	Wire Wrap	Cantilever	50		4-40 Flush Mount Threaded Insert Top Opening

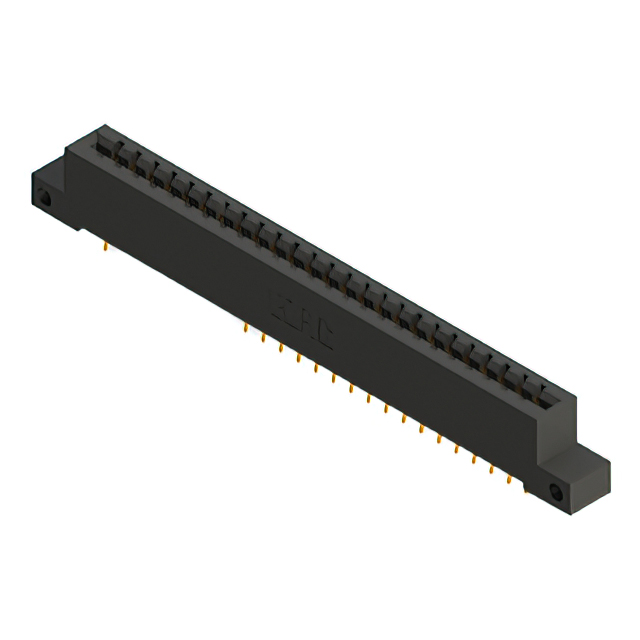

EDAC Inc. 887-050-556-212	Polyphenylene Sulfide (PPS)	2	3.96 mm	0.156 in	125 °C	-40 C	Board Edge Straddle Mount	Non Specified - Dual Edge	Copper Alloy	Black	0.25 Ám	10 Áin	Dual	25	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	Solder	Cantilever	50	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Card Extender

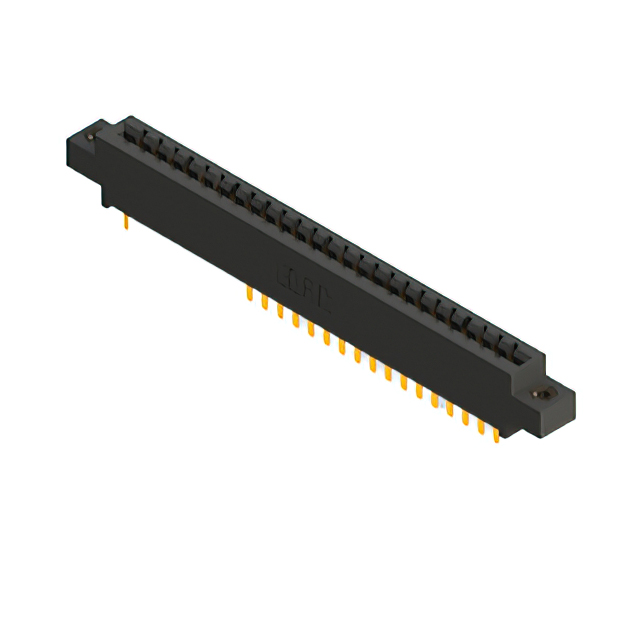

EDAC Inc. 887-050-544-808	Polyphenylene Sulfide (PPS)	2	3.96 mm	0.156 in	125 °C	-40 C	Through Hole	Non Specified - Dual Edge	Copper Alloy	Black	0.25 Ám	10 Áin	Dual	25	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	Wire Wrap	Cantilever	50		4-40 Threaded Insert Top Mount Opening
EDAC Inc. 887-050-556-202	Polyphenylene Sulfide (PPS)	2	3.96 mm	0.156 in	125 °C	-40 C	Board Edge Straddle Mount	Non Specified - Dual Edge	Copper Alloy	Black	0.25 Ám	10 Áin	Dual	25	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	Solder	Cantilever	50	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Card Extender
EDAC Inc. 887-050-524-802	Polyphenylene Sulfide (PPS)	2	3.96 mm	0.156 in	125 °C	-40 C	Through Hole	Non Specified - Dual Edge	Copper Alloy	Black	0.25 Ám	10 Áin	Dual	25	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Female	Solder	Cantilever	50	0.128 "		3.25 mm
