1977105 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

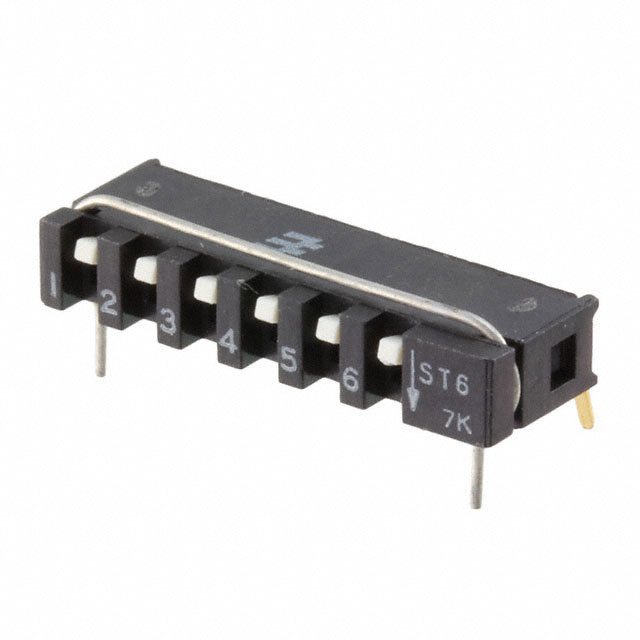

SWITCH SLIDE DIP SPST 0.01A 5V
| Part | Height Above Board [z] | Height Above Board [z] | Electrical Life | Operating Temperature [Min] | Operating Temperature [Max] | Mechanical Life | Body Material | Contact Material | Pitch [x] | Pitch | Pitch [x] | Circuit | Washable | Contact Finish | Voltage Rating | Length [x] | Length [x] | Termination Style | Mounting Type | Actuator Type | Actuator Level | Current Rating (Amps) | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 6.2 mm | 0.244 " | 1000 Cycles | -30 ░C | 85 °C | 1000 Cycles | Polyphenylene Sulfide (PPS) | Copper Alloy | 0.1 in | Full | 2.54 mm | SPST | Gold | 5 V | 18.44 mm | 0.726 " | PC Pin | Through Hole Right Angle | Slide (Standard) | Flush Recessed | 10 mA | 6 |
