737-011 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 11POS 0.156

Part	Material - Insulation	Termination Rows	Number of Rows	Number of Positions/Bay/Row	Termination	Read Out	Gender	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Contact Material	Color	Mounting Type	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Card Type

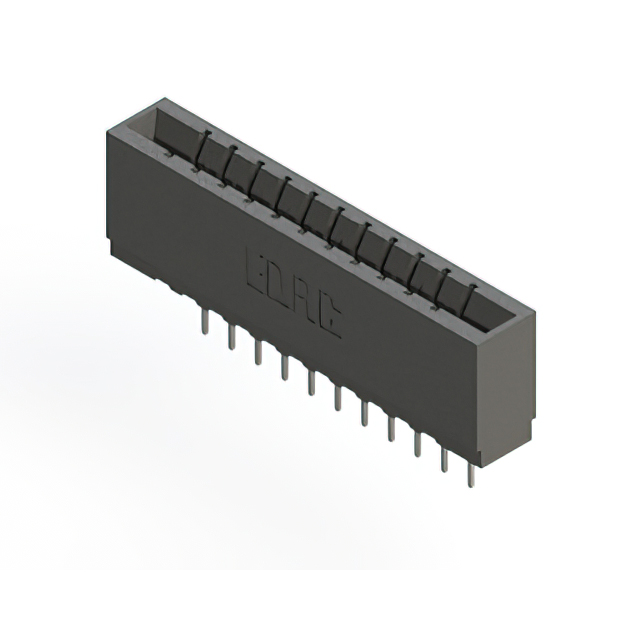

EDAC Inc. 737-011-522-101	Polyester Thermoplastic	1	1	11	Press-Fit	Single	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	11	Cantilever	-40 C	105 ░C	Gold	Copper Alloy	Black	Through Hole	3.96 mm	0.156 in	30 Áin	0.76 Ám	Non Specified - Single Edge

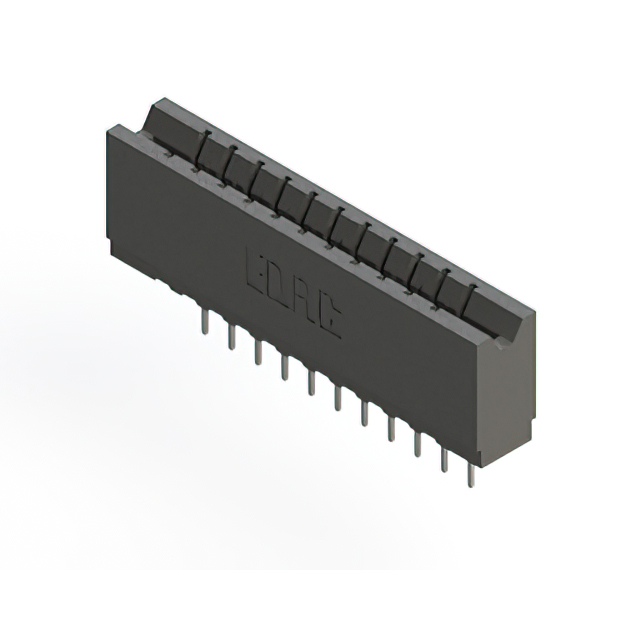

EDAC Inc. 737-011-522-106	Polyester Thermoplastic	1	1	11	Press-Fit	Single	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	11	Cantilever	-40 C	105 ░C	Gold	Copper Alloy	Black	Through Hole	3.96 mm	0.156 in	30 Áin	0.76 Ám	Non Specified - Single Edge
EDAC Inc. 737-011-525-101	Polyester Thermoplastic	1	1	11	Press-Fit	Single	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	11	Cantilever	-40 C	105 ░C	Gold	Copper Alloy	Black	Through Hole	3.96 mm	0.156 in	30 Áin	0.76 Ám	Non Specified - Single Edge
EDAC Inc. 737-011-525-106	Polyester Thermoplastic	1	1	11	Press-Fit	Single	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	11	Cantilever	-40 C	105 ░C	Gold	Copper Alloy	Black	Through Hole	3.96 mm	0.156 in	30 Áin	0.76 Ám	Non Specified - Single Edge

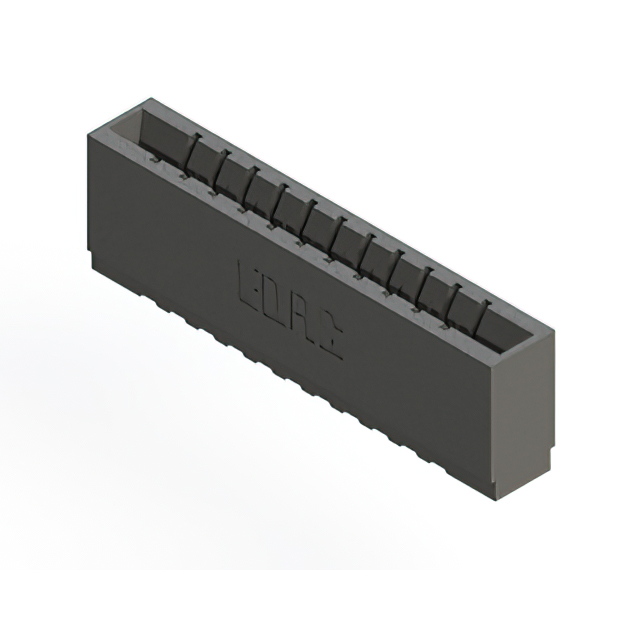

EDAC Inc. 737-011-520-101	Polyester Thermoplastic	1	1	11	Press-Fit	Single	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	11	Cantilever	-40 C	105 ░C	Gold	Copper Alloy	Black	Through Hole	3.96 mm	0.156 in	30 Áin	0.76 Ám	Non Specified - Single Edge
EDAC Inc. 737-011-545-106	Polyester Thermoplastic	1	1	11	Press-Fit Wire Wrap	Single	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	11	Cantilever	-40 C	105 ░C	Gold	Copper Alloy	Black	Through Hole	3.96 mm	0.156 in	30 Áin	0.76 Ám	Non Specified - Single Edge
EDAC Inc. 737-011-541-101	Polyester Thermoplastic	1	1	11	Press-Fit Wire Wrap	Single	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	11	Cantilever	-40 C	105 ░C	Gold	Copper Alloy	Black	Through Hole	3.96 mm	0.156 in	30 Áin	0.76 Ám	Non Specified - Single Edge

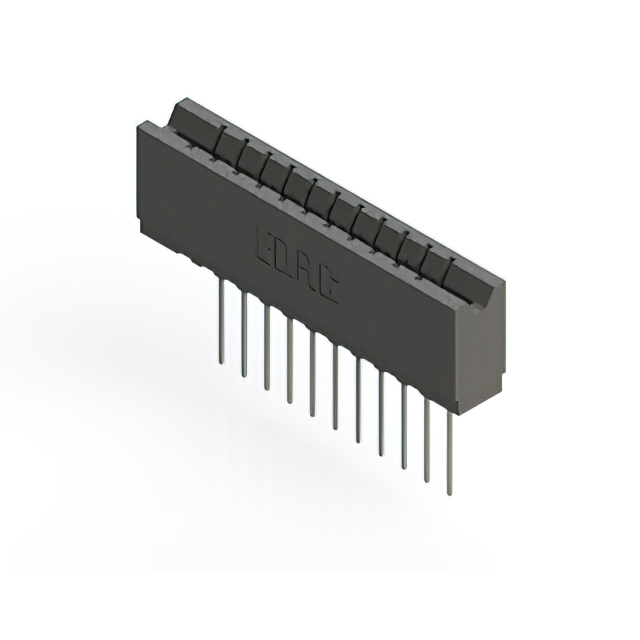

EDAC Inc. 737-011-541-106	Polyester Thermoplastic	1	1	11	Press-Fit Wire Wrap	Single	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	11	Cantilever	-40 C	105 ░C	Gold	Copper Alloy	Black	Through Hole	3.96 mm	0.156 in	30 Áin	0.76 Ám	Non Specified - Single Edge

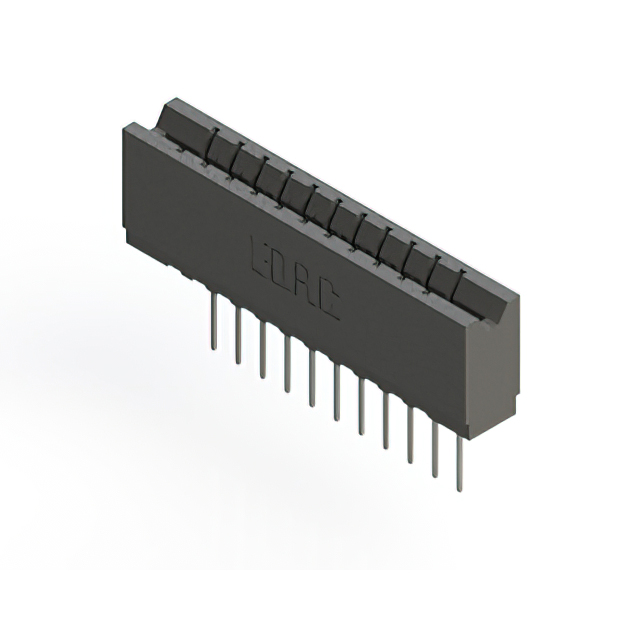

EDAC Inc. 737-011-540-106	Polyester Thermoplastic	1	1	11	Press-Fit Wire Wrap	Single	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	11	Cantilever	-40 C	105 ░C	Gold	Copper Alloy	Black	Through Hole	3.96 mm	0.156 in	30 Áin	0.76 Ám	Non Specified - Single Edge

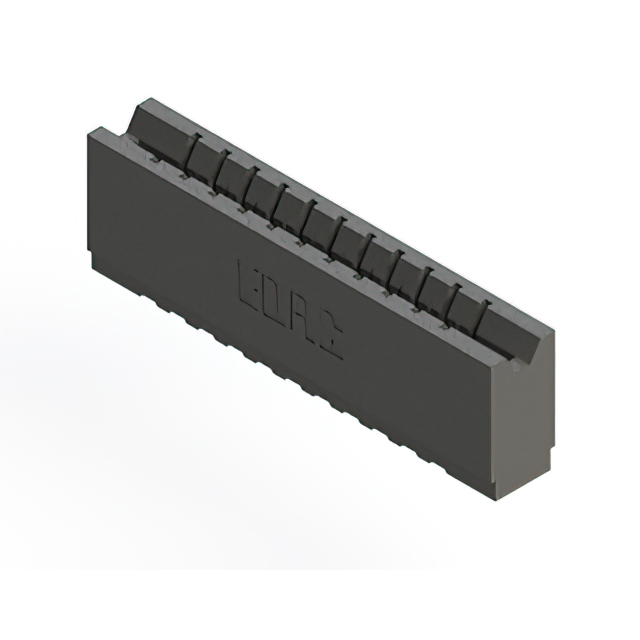

EDAC Inc. 737-011-520-106	Polyester Thermoplastic	1	1	11	Press-Fit	Single	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	11	Cantilever	-40 C	105 ░C	Gold	Copper Alloy	Black	Through Hole	3.96 mm	0.156 in	30 Áin	0.76 Ám	Non Specified - Single Edge
