207479 Series
KK Plus 396 Header, 3.96mm Pitch, Vertical, Fully Shrouded, Tin (Sn) Plating, 5 Circuits, with Peg
Manufacturer: Molex
Catalog
KK Plus 396 Header, 3.96mm Pitch, Vertical, Fully Shrouded, Tin (Sn) Plating, 5 Circuits, with Peg
Beta
⌘K
KK Plus 396 Header, 3.96mm Pitch, Vertical, Fully Shrouded, Tin (Sn) Plating, 5 Circuits, with Peg
KK Plus 396 Header, 3.96mm Pitch, Vertical, Fully Shrouded, Tin (Sn) Plating, 5 Circuits, with Peg
KK Plus 396 Header, 3.96mm Pitch, Vertical, Fully Shrouded, Tin (Sn) Plating, 5 Circuits, with Peg
| Part | Features | Overall Contact Length | Overall Contact Length | Number of Rows | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Current Rating (Amps) | Contact Finish - Post | Insulation Material | Number of Positions Loaded | Shrouding | Contact Length - Post | Contact Length - Post | Fastening Type | Termination | Pitch - Mating | Pitch - Mating | Insulation Color | Connector Type | Contact Shape | Number of Positions | Contact Type | Voltage Rating | Style | Mounting Type | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

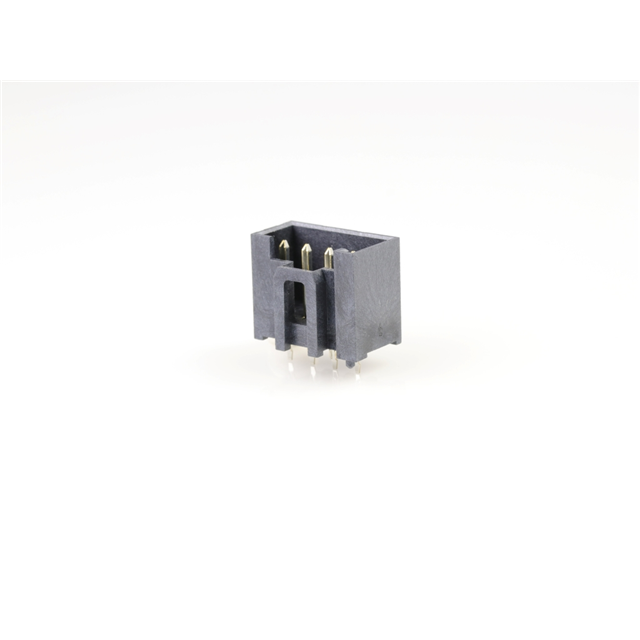

 Molex | Board Guide Glow Wire Compliant | 17.6 mm | 0.693 in | 1 | Automotive General Purpose Industrial Medical Telecommunications | -40 °C | 105 ░C | Brass Alloy | Varies by Wire Gauge | Tin | Liquid Crystal Polymer (LCP) | All | Shrouded - 4 Wall | 3.5 mm | 0.138 in | Latch Holder | Solder | 0.156 in | 3.96 mm | Black | Header | Square | 4 | Male Pin | 350 V | Board to Cable/Wire | Through Hole | UL94 V-0 |

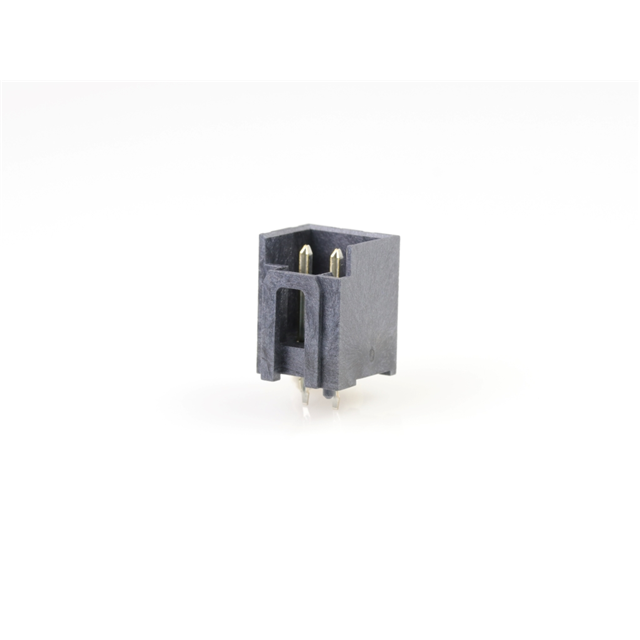

 Molex | Board Guide Glow Wire Compliant | 17.6 mm | 0.693 in | 1 | Automotive General Purpose Industrial Medical Telecommunications | -40 °C | 105 ░C | Brass Alloy | Varies by Wire Gauge | Tin | Liquid Crystal Polymer (LCP) | All | Shrouded - 4 Wall | 3.5 mm | 0.138 in | Latch Holder | Solder | 0.156 in | 3.96 mm | Black | Header | Square | 2 | Male Pin | 350 V | Board to Cable/Wire | Through Hole | UL94 V-0 |

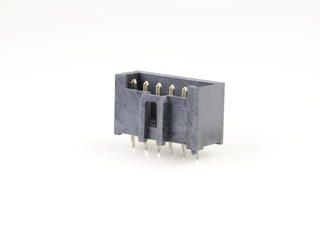

 Molex | Board Guide Glow Wire Compliant | 17.6 mm | 0.693 in | 1 | Automotive General Purpose Industrial Medical Telecommunications | -40 °C | 105 ░C | Brass Alloy | Varies by Wire Gauge | Tin | Liquid Crystal Polymer (LCP) | All | Shrouded - 4 Wall | 3.5 mm | 0.138 in | Latch Holder | Solder | 0.156 in | 3.96 mm | Black | Header | Square | 6 | Male Pin | 350 V | Board to Cable/Wire | Through Hole | UL94 V-0 |
 Molex | Board Guide Glow Wire Compliant | 17.6 mm | 0.693 in | 1 | Automotive General Purpose Industrial Medical Telecommunications | -40 °C | 105 ░C | Brass Alloy | Varies by Wire Gauge | Tin | Liquid Crystal Polymer (LCP) | All | Shrouded - 4 Wall | 3.5 mm | 0.138 in | Latch Holder | Solder | 0.156 in | 3.96 mm | Black | Header | Square | Male Pin | 350 V | Board to Cable/Wire | Through Hole | UL94 V-0 |
