L77SDDH50 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

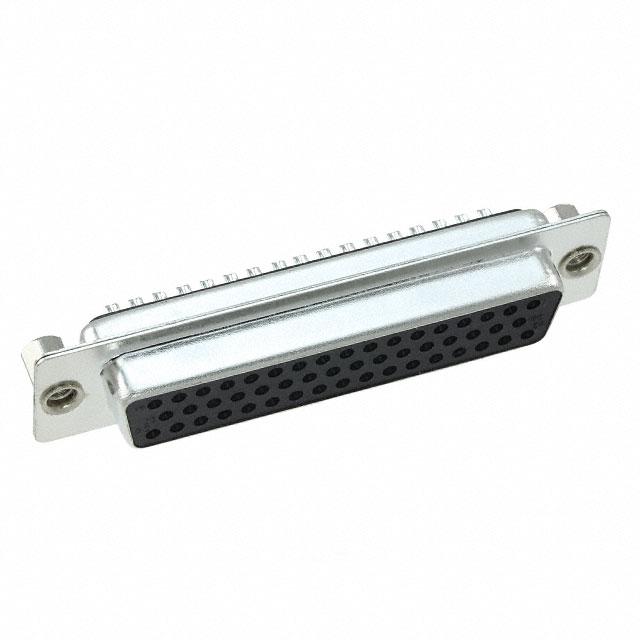

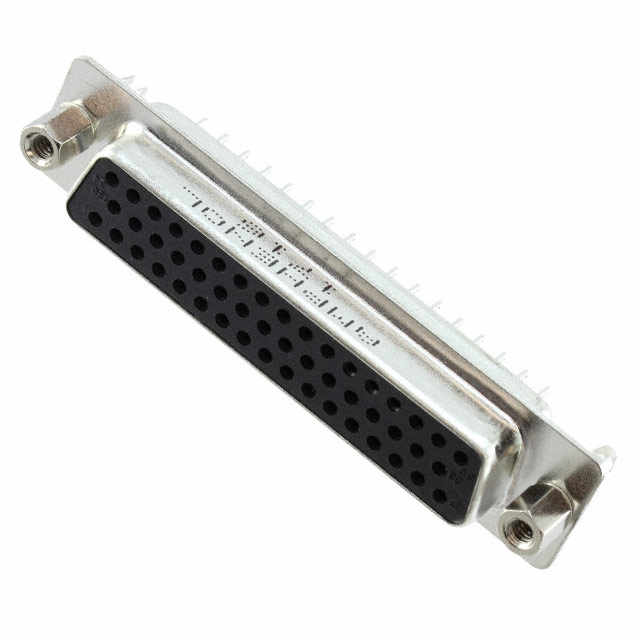

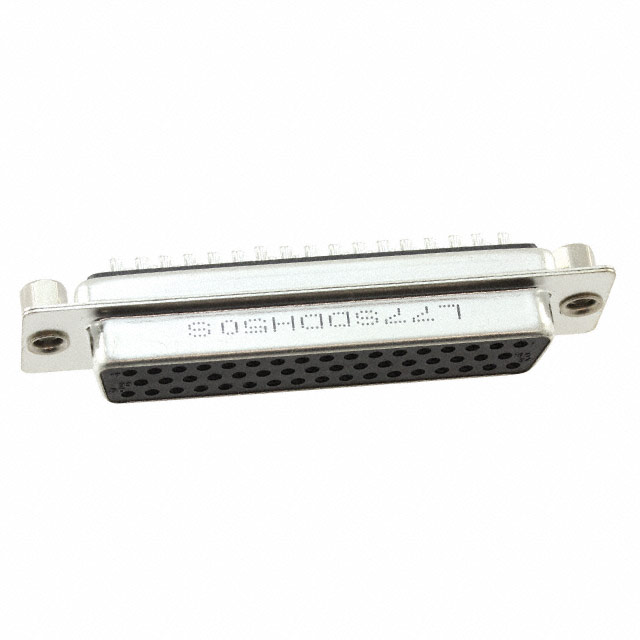

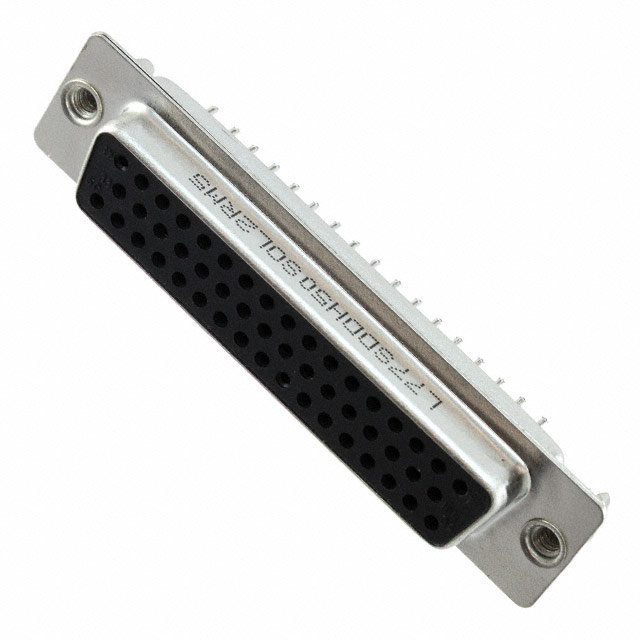

CONN D-SUB RCPT 50POS VERT SLDR
| Part | Dielectric Material | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Form | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Termination | Features | Connector Type | Flange Feature | Mounting Type | Number of Rows [custom] | Number of Positions | Contact Finish | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Current Rating (Amps) | Material Flammability Rating | Wire Gauge | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Phosphor Bronze | Black | -55 C | 125 °C | 250 V | Stamped | Signal | 30 Áin | 0.76 Ám | Solder | Board Lock | Receptacle Female Sockets | Board Side (4-40) Mating Side Female Screwlock (4-40) | Through Hole | 3 | 50 | Gold | D-Sub | 5 | D DD | 3 A | UL94 V-0 | ||
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Brass | Black | -55 C | 105 ░C | 250 V | Stamped | Signal | Receptacle Female Sockets | Cable Side (4-40) Mating Side Female Screwlock (4-40) | Free Hanging (In-Line) | 3 | 50 | Gold | D-Sub | 5 | D DD | 3 A | UL94 V-0 | 20 AWG | Flash | ||||
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Phosphor Bronze | Black | -55 C | 125 °C | 250 V | Stamped | Signal | 30 Áin | 0.76 Ám | Receptacle Female Sockets | Cable Side (4-40) | Free Hanging (In-Line) | 3 | 50 | Gold | D-Sub | 5 | D DD | 3 A | UL94 V-0 | ||||
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Phosphor Bronze | Black | -55 C | 125 °C | 250 V | Stamped | Signal | Solder | Board Lock | Receptacle Female Sockets | Board Side (4-40) | Through Hole | 3 | 50 | Gold | D-Sub | 5 | D DD | 3 A | UL94 V-0 | Flash | |||
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Phosphor Bronze | Black | -55 C | 125 °C | 250 V | Stamped | Signal | Solder | Board Lock | Receptacle Female Sockets | Board Side (4-40) Mating Side Female Screwlock (4-40) | Through Hole | 3 | 50 | Gold | D-Sub | 5 | D DD | 3 A | UL94 V-0 | Flash | |||
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Phosphor Bronze | Black | -55 C | 125 °C | 250 V | Stamped | Signal | Receptacle Female Sockets | Cable Side (4-40) | Free Hanging (In-Line) | 3 | 50 | Gold | D-Sub | 5 | D DD | 3 A | UL94 V-0 | Flash | |||||
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | Phosphor Bronze | Black | -55 C | 125 °C | 250 V | Stamped | Signal | Solder | Board Lock | Receptacle Female Sockets | Board Side (4-40) Mating Side Female Screwlock (4-40) | Through Hole | 3 | 50 | Gold | D-Sub | 5 | D DD | 3 A | UL94 V-0 | Flash |
