M2012E4 Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Actuator Material	Electrical Life	Features	Termination Style	Switch Function	Actuator Length [x]	Voltage Rating - DC	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Actuator Type	Illumination	Mounting Type	Bushing Thread

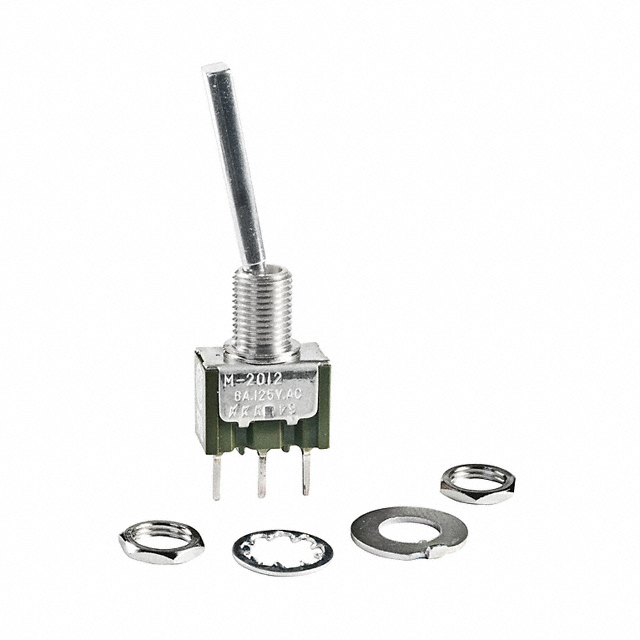

NKK Switches M2012E4S1W03/UC	Brass Chrome Plated	25000 Steps	Epoxy Sealed Terminals	PC Pin	On-On	21.3 mm	30 V	125 V	6.5 mm	SPDT	85 °C	-30 ░C	4 A 6 A	Flatted	Non-Illuminated	Panel Mount	1/4-40
NKK Switches M2012E4S1W01	Brass Chrome Plated	25000 Steps	Epoxy Sealed Terminals	Solder Lug	On-On	21.3 mm	30 V	125 V	6.5 mm	SPDT	85 °C	-30 ░C	4 A 6 A	Flatted	Non-Illuminated	Panel Mount	1/4-40
NKK Switches M2012E4S1W01/3	Brass Chrome Plated	25000 Steps		Solder Lug	On-On	21.3 mm	30 V	125 V	6.5 mm	SPDT	85 °C	-30 ░C	4 A 6 A	Flatted	Non-Illuminated	Panel Mount	1/4-40
NKK Switches M2012E4S2W13	Brass Chrome Plated	25000 Steps	Epoxy Sealed Terminals	PC Pin	On-On	21.3 mm	30 V	125 V		SPDT	85 °C	-30 ░C	4 A 6 A	Flatted	Non-Illuminated	Through Hole	Unthreaded

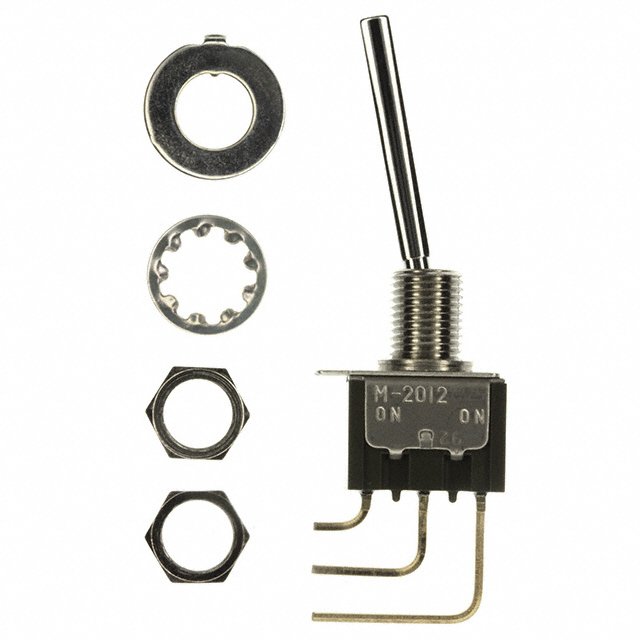

NKK Switches M2012E4S1G40	Brass Chrome Plated	50000 Cycles	Epoxy Sealed Terminals	PC Pin	On-On	21.3 mm	28 V	28 V	6.5 mm	SPDT	85 °C	-30 ░C	0.4 VA	Flatted	Non-Illuminated	Panel Mount Right Angle Vertical	1/4-40
