2823399 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

6P,2MM,SHRD HDR,SRVT,SMD,0.76AU,

Part	Number of Positions	Number of Positions Loaded	Connector Type	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Termination	Voltage Rating	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Current Rating (Amps)	Contact Finish - Mating	Insulation Material	Contact Type	Shrouding	Insulation Height [custom]	Insulation Height [custom]	Fastening Type	Mounting Type	Features
TE Connectivity Raychem Cable Protection 2823399-6	6	All	Header	Black	157.5 Áin	4 Ám	4 mm	0.157 in	1	30 Áin	0.76 Ám	UL94 V-0	Solder	125 VAC	Square	125 °C	-40 °C	Phosphor Bronze	Tin	0.079 in	2 mm	2 A	Gold	Thermoplastic	Male Pin	Shrouded - 2 Wall	5.51 mm	0.217 in	Detent Lock	Surface Mount	Pick and Place
TE Connectivity Raychem Cable Protection 2823399-2	2	All	Header	Black	157.5 Áin	4 Ám	4 mm	0.157 in	1	30 Áin	0.76 Ám	UL94 V-0	Solder	125 VAC	Square	125 °C	-40 °C	Phosphor Bronze	Tin	0.079 in	2 mm	2 A	Gold	Thermoplastic	Male Pin	Shrouded - 2 Wall	5.51 mm	0.217 in	Detent Lock	Surface Mount	Pick and Place

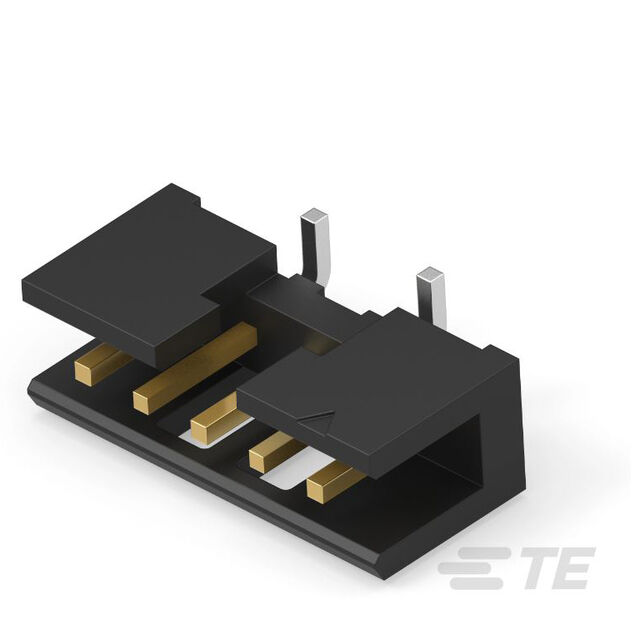

TE Connectivity Raychem Cable Protection 2823399-5		All	Header	Black	157.5 Áin	4 Ám	4 mm	0.157 in	1	30 Áin	0.76 Ám	UL94 V-0	Solder	125 VAC	Square	125 °C	-40 °C	Phosphor Bronze	Tin	0.079 in	2 mm	2 A	Gold	Thermoplastic	Male Pin	Shrouded - 2 Wall	5.51 mm	0.217 in	Detent Lock	Surface Mount	Pick and Place

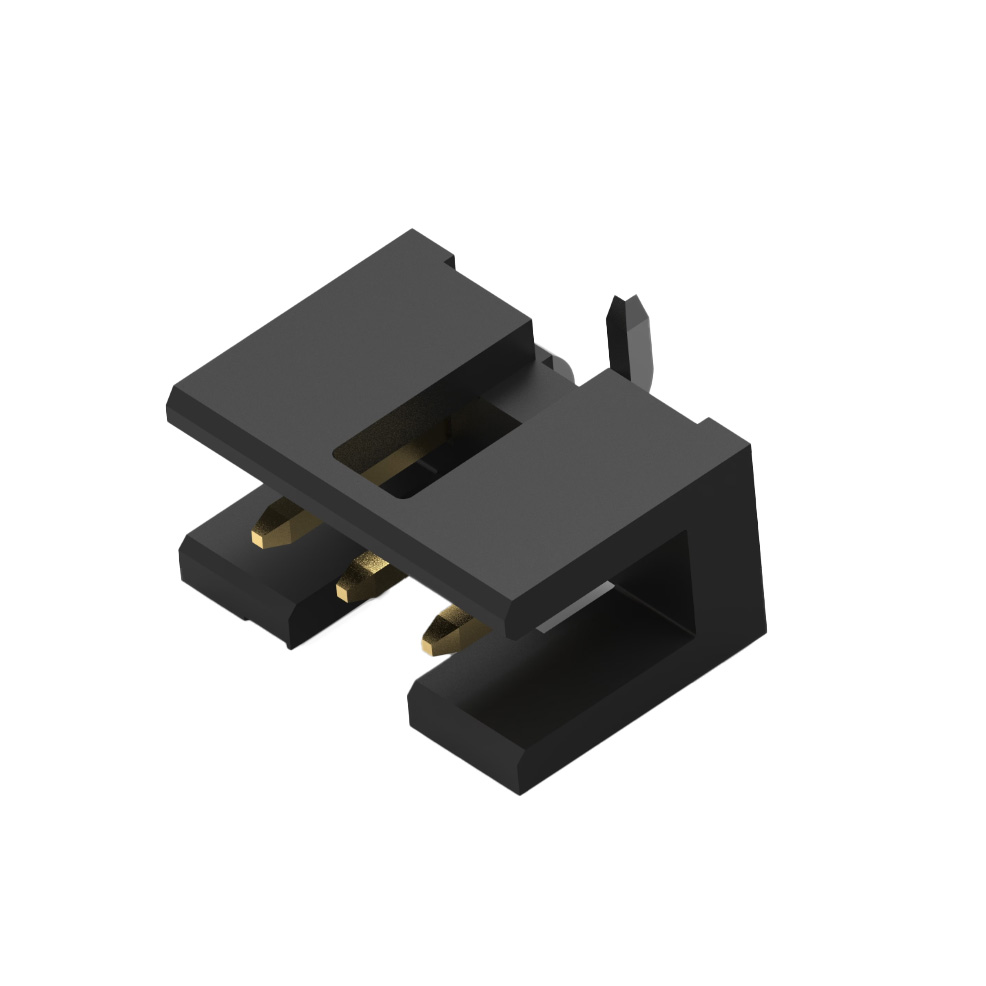

TE Connectivity Raychem Cable Protection 2823399-3		All	Header	Black	157.5 Áin	4 Ám	4 mm	0.157 in	1	30 Áin	0.76 Ám	UL94 V-0	Solder	125 VAC	Square	125 °C	-40 °C	Phosphor Bronze	Tin	0.079 in	2 mm	2 A	Gold	Thermoplastic	Male Pin	Shrouded - 2 Wall	5.51 mm	0.217 in	Detent Lock	Surface Mount	Pick and Place

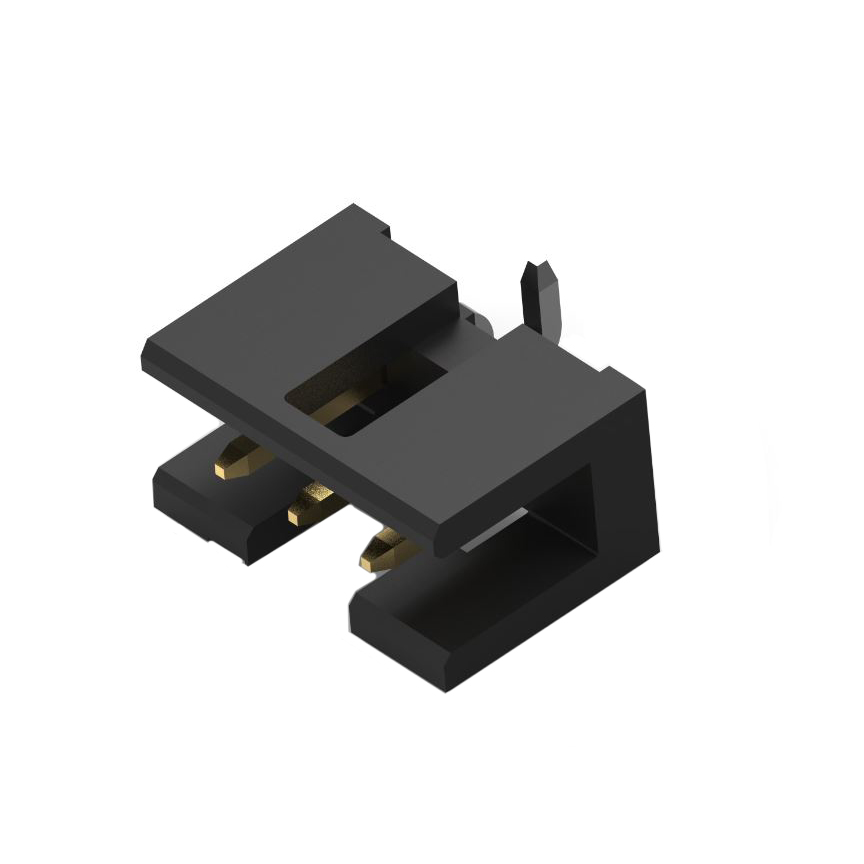

TE Connectivity Raychem Cable Protection 2823399-4	4	All	Header	Black	157.5 Áin	4 Ám	4 mm	0.157 in	1	30 Áin	0.76 Ám	UL94 V-0	Solder	125 VAC	Square	125 °C	-40 °C	Phosphor Bronze	Tin	0.079 in	2 mm	2 A	Gold	Thermoplastic	Male Pin	Shrouded - 2 Wall	5.51 mm	0.217 in	Detent Lock	Surface Mount	Pick and Place
TE Connectivity Raychem Cable Protection 2823399-8	8	All	Header	Black	157.5 Áin	4 Ám	4 mm	0.157 in	1	30 Áin	0.76 Ám	UL94 V-0	Solder	125 VAC	Square	125 °C	-40 °C	Phosphor Bronze	Tin	0.079 in	2 mm	2 A	Gold	Thermoplastic	Male Pin	Shrouded - 2 Wall	5.51 mm	0.217 in	Detent Lock	Surface Mount	Pick and Place
TE Connectivity Raychem Cable Protection 1-2823399-0	10	All	Header	Black	157.5 Áin	4 Ám	4 mm	0.157 in	1	30 Áin	0.76 Ám	UL94 V-0	Solder	125 VAC	Square	125 °C	-40 °C	Phosphor Bronze	Tin	0.079 in	2 mm	2 A	Gold	Thermoplastic	Male Pin	Shrouded - 2 Wall	5.51 mm	0.217 in	Detent Lock	Surface Mount	Pick and Place
