R1973BBL Series

Manufacturer: E-Switch

Catalog

SWITCH ROCKER DPST 9A 125V

Part	Electrical Life	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Type, Color	Illumination Voltage (Nominal)	Switch Function	Termination Style	Voltage Rating - AC	Circuit	Current Rating (Amps)	Actuator Type	Color - Actuator/Cap	Actuator Marking	Mounting Type
E-Switch R1973BBLKGILGF6	10000 Cycles	30000 Steps	-30 ░C	65 °C	Green Incandescent	6 VDC	On-Off	Quick Connect	125 V	DPST	9 A	Concave (Curved) - Illuminated	Green	O I	Panel Mount Snap-In
E-Switch R1973BBLKRILEF1	10000 Cycles	30000 Steps	-30 ░C	65 °C	Neon Red	125 VAC	On-Off	Quick Connect	125 V	DPST	9 A	Concave (Curved) - Illuminated	Red	No Marking	Panel Mount Snap-In
E-Switch R1973BBLKREDFF1	10000 Cycles	30000 Steps	-30 ░C	65 °C	Neon Red	125 VAC	On-Off	Quick Connect	125 V	DPST	9 A	Concave (Curved) - Illuminated	Red	O -	Panel Mount Snap-In
E-Switch R1973BBLKBLKIL0	10000 Cycles	30000 Steps	-30 ░C	65 °C			On-Off	PC Pin	125 V	DPST	9 A	Concave (Curved)	Black	ON OFF	Panel Mount Right Angle Snap-In
E-Switch R1973BBLKRILAF2	10000 Cycles	30000 Steps	-30 ░C	65 °C	Neon Red	250 VAC	On-Off	Quick Connect	125 V	DPST	9 A	Concave (Curved) - Illuminated	Red	Dot	Panel Mount Snap-In
E-Switch R1973BBLKWHTFF0	10000 Cycles	30000 Steps	-30 ░C	65 °C			On-Off	Quick Connect	125 V	DPST	9 A	Concave (Curved)	White	O -	Panel Mount Snap-In

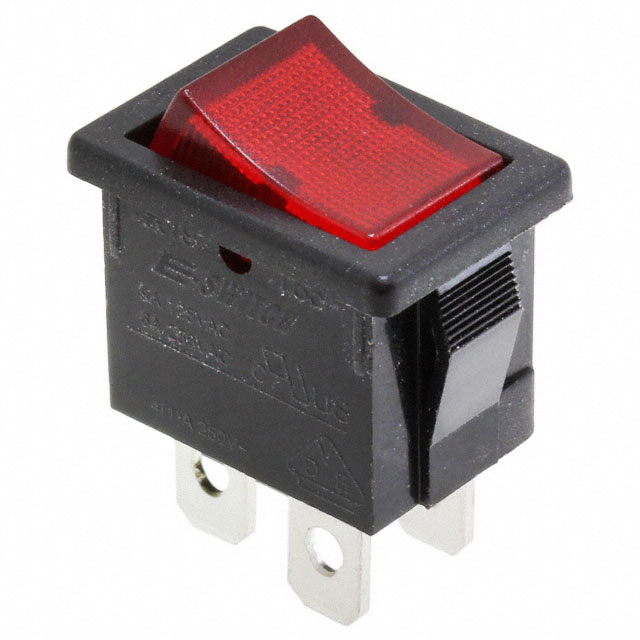

E-Switch R1973BBLKRILKF1	10000 Cycles	30000 Steps	-30 ░C	65 °C	Neon Red	125 VAC	On-Off	Quick Connect	125 V	DPST	9 A	Concave (Curved) - Illuminated	Red	O on End	Panel Mount Snap-In
E-Switch R1973BBLKBLKER0	10000 Cycles	30000 Steps	-30 ░C	65 °C			On-Off	PC Pin	125 V	DPST	9 A	Concave (Curved)	Black	No Marking	Panel Mount Right Angle Snap-In
E-Switch R1973BBLKBLKGL0	10000 Cycles	30000 Steps	-30 ░C	65 °C			On-Off	PC Pin	125 V	DPST	9 A	Concave (Curved)	Black	O I	Panel Mount Right Angle Snap-In
E-Switch R1973BBLKREDIF0	10000 Cycles	30000 Steps	-30 ░C	65 °C			On-Off	Quick Connect	125 V	DPST	9 A	Concave (Curved)	Red	ON OFF	Panel Mount Snap-In
