PCS2 Series

Board to Board & Mezzanine Connectors 2.00 mm Signal/Power Combo Socket Strip

Manufacturer: Samtec Inc.

Catalog

Board to Board & Mezzanine Connectors 2.00 mm Signal/Power Combo Socket Strip

Catalog

Board to Board & Mezzanine Connectors 2.00 mm Signal/Power Combo Socket Strip

Part	Mounting Type	Contact Type	Number of Rows	Insulation Height	Insulation Height	Contact Finish - Post	Contact Shape	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Insulation Color	Fastening Type	Connector Type	Contact Finish - Mating	Termination	Number of Positions [custom]	Number of Positions [custom]	Contact Finish Thickness - Mating	Number of Positions	Number of Positions [custom]

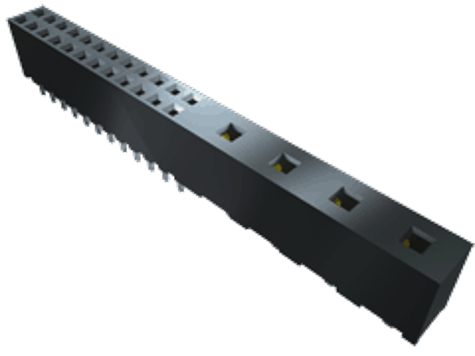

Samtec Inc. PCS2-118-01-L-D-04	Through Hole	Female Socket	2	6.35 mm	0.25 in	Tin	Square	All	0.09 "	2.29 mm	Black	Push-Pull	Receptacle	Gold	Solder	36	4
Samtec Inc. PCS2-102-01-F-D-04	Through Hole	Female Socket	2	6.35 mm	0.25 in	Tin	Square	All	0.09 "	2.29 mm	Black	Push-Pull	Receptacle	Gold	Solder			Flash	8
Samtec Inc. PCS2-104-01-L-D-03	Through Hole	Female Socket	2	6.35 mm	0.25 in	Tin	Square	All	0.09 "	2.29 mm	Black	Push-Pull	Receptacle	Gold	Solder		3		11
Samtec Inc. PCS2-120-01-F-D-03	Through Hole	Female Socket	2	6.35 mm	0.25 in	Tin	Square	All	0.09 "	2.29 mm	Black	Push-Pull	Receptacle	Gold	Solder		3	Flash		40
