78325 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

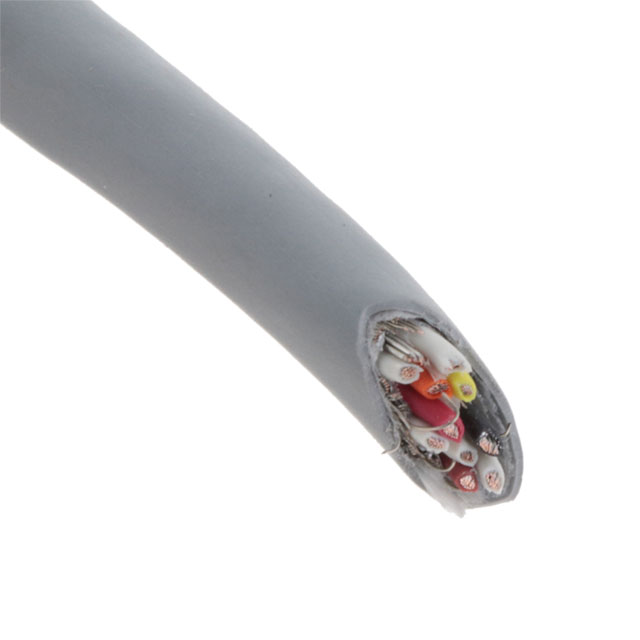

ECOGEN ECOCABLE MINI 24AWG 5PR 300V FOIL/BRAID MPPE 78325 SL 199 BULK FT
| Part | Shield Material | Shield Coverage | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Jacket (Insulation) Material | Voltage | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Shield Type | Length [x] | Length [x] | Conductor Insulation | Number of Conductors | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Cable Type | Wire Gauge | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 100 % | Biological Compatibility Drain Wire Rip Cord | 0.238 " | 6.05 mm | Slate | Polyphenylene Ether Modified (mPPE) | 300 VDC | Copper Tinned | 80 °C | -40 C | ISO 10993 UL Style 21460 | Braid Foil | 300 mm | 1 ' | Polyphenylene Ether Modified (mPPE) | 10 | 0.381 mm | 0.015 in | Multi-Pair | 24 AWG | ||
ALPHA WIRE | Copper Tinned Suprashield® | 100 % | Biological Compatibility Drain Wire Rip Cord | 0.238 " | 6.05 mm | Slate | Polyphenylene Ether Modified (mPPE) | 300 VDC | Copper Tinned | 80 °C | -40 C | ISO 10993 UL Style 21460 | Braid Foil | Polyphenylene Ether Modified (mPPE) | 10 | 0.381 mm | 0.015 in | Multi-Pair | 24 AWG | 304.8 m | 1000 ft | ||
 ALPHA WIRE | Copper Tinned Suprashield® | 100 % | Biological Compatibility Drain Wire Rip Cord | 0.238 " | 6.05 mm | Slate | Polyphenylene Ether Modified (mPPE) | 300 VDC | Copper Tinned | 80 °C | -40 C | ISO 10993 UL Style 21460 | Braid Foil | 30.5 m | 100 ft | Polyphenylene Ether Modified (mPPE) | 10 | 0.381 mm | 0.015 in | Multi-Pair | 24 AWG |
