SMP1307 Series

Catalog

DIODE PIN SGL SOT-23

Part	Voltage - Peak Reverse (Max)	Supplier Device Package	Capacitance @ Vr, F	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Diode Type	Resistance @ If, F	Power Dissipation (Max) [Max]	Supplied Contents	For Use With/Related Products	Utilized IC / Part	Type	Contents
Skyworks Solutions Inc. SMP1307-099	200 V	Chip	0.2 pF	Die	150 °C	-65 °C	PIN - Single	15 Ohm
Skyworks Solutions Inc. SMP1307-011LF	200 V	SOD-323	0.3 pF	SC-76 SOD-323	150 °C	-65 °C	PIN - Single	3 Ohm	250 mW

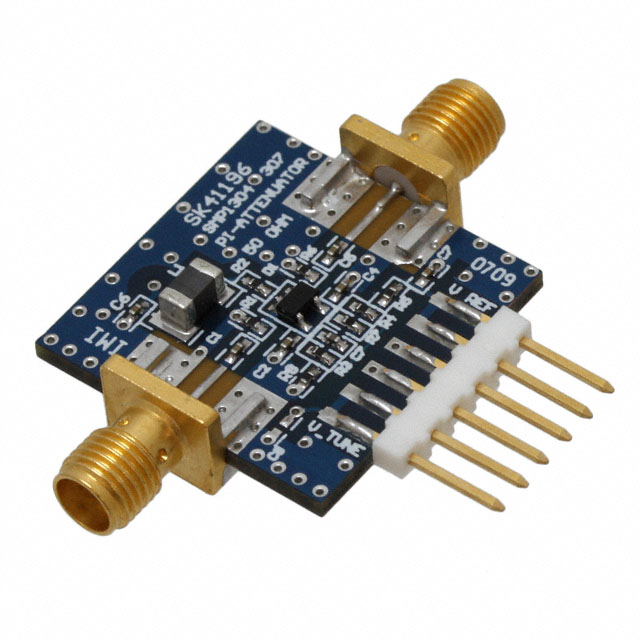

Skyworks Solutions Inc. SMP1307-027LF-EVB (50 OHM)										Board(s)	SMP1307-027LF	SMP1307-027LF	PIN Diode	Board(s)
Skyworks Solutions Inc. SMP1307-003LF	200 V	SOT-23-3	0.3 pF	SC-59 SOT-23-3 TO-236-3	150 °C	-65 °C	PIN - 1 Pair Common Anode	3 Ohm	250 mW
Skyworks Solutions Inc. SMP1307-004LF	200 V	SOT-23-3	0.3 pF	SC-59 SOT-23-3 TO-236-3	150 °C	-65 °C	PIN - 1 Pair Common Cathode	3 Ohm	250 mW
Skyworks Solutions Inc. SMP1307-027LF	200 V	SOT-5	0.3 pF	SOT-5	150 °C	-65 °C	PIN - 2 Pair CA + CC	3 Ohm	250 mW
