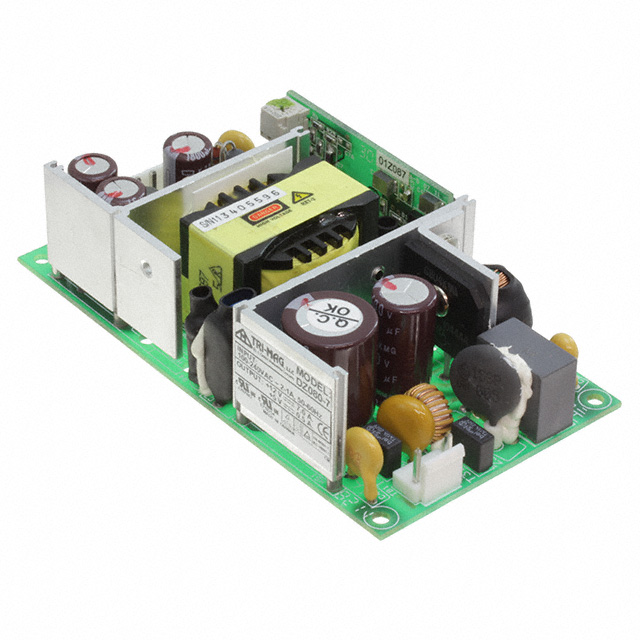

DZ080 Series
Manufacturer: Tri-Mag, LLC
Beta
⌘K
AC/DC CONVERTER 5V 12V 24V 80W
| Part | Minimum Load Required | Current - Output 2 | Applications | Features | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Output 1 | Current - Output 3 | Current - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Type | Power (Watts) | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Number of Outputs | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Tri-Mag, LLC | 500 mA | ITE (Commercial) | Universal Input | 70 °C | 0 °C | Chassis Mount | 5 V | 2 A | 6 A | 12 V | 24 V | Open Frame | 80 W | 63.5 mm | 1.18 in | 30 mm | 2.5 " | 4.5 in | 114.3 mm | 3 | 264 VAC | 90 VAC | |
Tri-Mag, LLC | 4 A | ITE (Commercial) | Universal Input | 70 °C | 0 °C | Chassis Mount | 5 V | 6 A | 12 V | Open Frame | 85 W | 63.5 mm | 1.18 in | 30 mm | 2.5 " | 4.5 in | 114.3 mm | 2 | 264 VAC | 90 VAC | |||
 Tri-Mag, LLC | 500 mA | ITE (Commercial) | Universal Input | 70 °C | 0 °C | Chassis Mount | 12 V | 5 V | Open Frame | 85 W | 63.5 mm | 1.18 in | 30 mm | 2.5 " | 4.5 in | 114.3 mm | 2 | 264 VAC | 90 VAC |
