HT-200 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

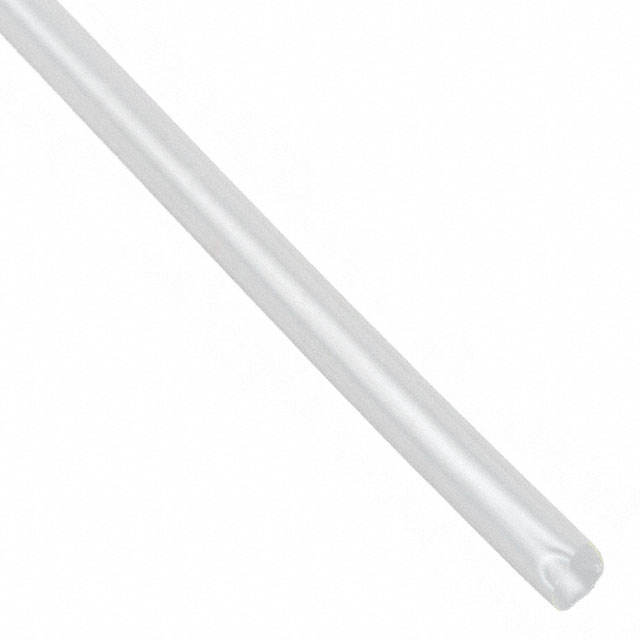

HEAT SHRINK 1/8" CLEAR 1FT

Part	Length	Length	Recovered Wall Thickness	Recovered Wall Thickness	Shelf Life	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrink Temperature	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Material	Color	Features	Type	Spool Size	Spool Size	Length	Length [x]	Length [x]	Inner Diameter - Supplied [diameter]
TE Connectivity AMP Connectors HT-200-1/8-X-SP	3.05 m 7.6 m 152.4 m	10 ft 25 ft 500 ft	0.01 in	0.25 mm	144 Months	0.062 in	1.57 mm	130 °C	1	2	-70 °C	200 °C	3.18 mm	0.125 in	Polyvinylidene Fluoride (PVDF)	Clear	Abrasion Resistant Chemical Resistant Flame Retardant	Tubing Flexible
TE Connectivity AMP Connectors HT-200-3/4-X-SP	76.2 m	250 ft	0.017 in	0.43 mm	144 Months	0.375 in	9.53 mm	130 °C	1	2	-70 °C	200 °C			Polyvinylidene Fluoride (PVDF)	Clear	Abrasion Resistant Chemical Resistant Flame Retardant	Tubing Flexible
TE Connectivity AMP Connectors HT-200-3/8-X-SP	1 m 10 m 25 m 60 m	3.28 ft 32.8 ft 82 ft 196.8 '	0.012 in	0.3 mm	144 Months	0.187 in	4.75 mm	130 °C	1	2	-70 °C	200 °C	9.53 mm	0.375 in	Polyvinylidene Fluoride (PVDF)	Clear	Abrasion Resistant Chemical Resistant Flame Retardant	Tubing Flexible	60 m	196.8 ft	Enter Number of Meters in Order Quantity	16.4 ft	5 m
TE Connectivity AMP Connectors HT-200-1/4-X-SP	1.52 m 3.05 m 7.6 m 76.2 m	10 ft 25 ft 60 in 250 ft	0.012 in	0.3 mm	144 Months	0.125 in	3.18 mm	130 °C	1	2	-70 °C	200 °C	0.25 "		Polyvinylidene Fluoride (PVDF)	Clear	Abrasion Resistant Chemical Resistant Flame Retardant	Tubing Flexible						6.35 mm
TE Connectivity AMP Connectors HT-200-3/32-X-SP	1.52 m 3.05 m 7.6 m 457.2 m	10 ft 25 ft 60 in 1500 ft	0.01 in	0.25 mm	144 Months	0.046 in	1.17 mm	130 °C	1	2	-70 °C	200 °C	2.36 mm	0.093 "	Polyvinylidene Fluoride (PVDF)	Clear	Abrasion Resistant Chemical Resistant Flame Retardant	Tubing Flexible
TE Connectivity AMP Connectors HT-200-1/16-X-SP			0.01 in	0.25 mm	144 Months	0.031 in	0.79 mm	130 °C	1	2	-70 °C	200 °C	1.6 mm	0.063 in	Polyvinylidene Fluoride (PVDF)	Clear	Abrasion Resistant Chemical Resistant Flame Retardant	Tubing Flexible				3000 ft	914.4 m
TE Connectivity AMP Connectors HT-200-3/16-X-SP	1.52 m 3.05 m 7.6 m 152.4 m	10 ft 25 ft 60 in 500 ft	0.01 in	0.25 mm	144 Months	0.093 in	2.36 mm	130 °C	1	2	-70 °C	200 °C	4.75 mm	0.187 "	Polyvinylidene Fluoride (PVDF)	Clear	Abrasion Resistant Chemical Resistant Flame Retardant	Tubing Flexible
TE Connectivity AMP Connectors HT-200-1-X-SP	1.52 m 7.6 m 76.2 m	25 ft 60 in 250 ft	0.019 in	0.48 mm	144 Months	0.5 "	12.7 mm	130 °C	1	2	-70 °C	200 °C	25.4 mm	1 in	Polyvinylidene Fluoride (PVDF)	Clear	Abrasion Resistant Chemical Resistant Flame Retardant	Tubing Flexible				100 ft	30.5 m
TE Connectivity AMP Connectors HT-200-1/2-X-SP	1.52 m 7.6 m 45.7 m	25 ft 60 in 150 '	0.012 in	0.3 mm	144 Months	0.25 in	6.35 mm	130 °C	1	2	-70 °C	200 °C	12.7 mm	0.5 "	Polyvinylidene Fluoride (PVDF)	Clear	Abrasion Resistant Chemical Resistant Flame Retardant	Tubing Flexible
TE Connectivity AMP Connectors HT-200-3/64-X-SP			0.01 in	0.25 mm	144 Months	0.023 in	0.58 mm	130 °C	1	2	-70 °C	200 °C	1.17 mm	0.046 "	Polyvinylidene Fluoride (PVDF)	Clear	Abrasion Resistant Chemical Resistant Flame Retardant	Tubing Flexible				3000 ft	914.4 m
