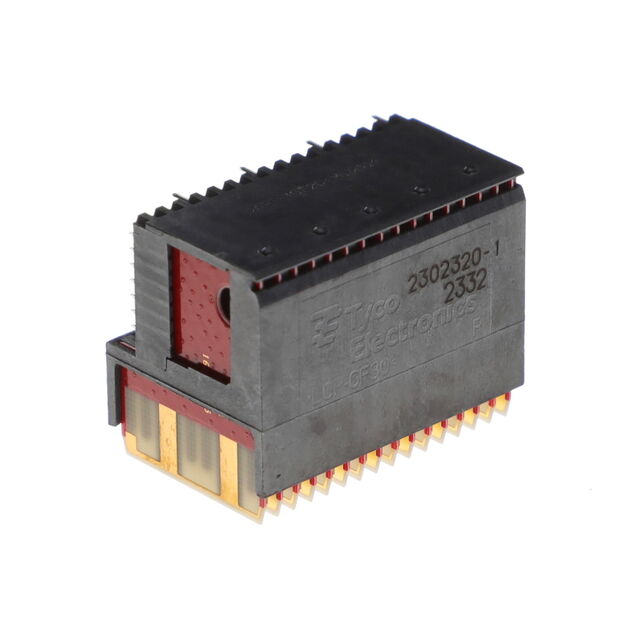

2302320 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
RA ASSY, CENT RTM DP, MULTIGIG R
| Part | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Connector Style | Pitch [x] | Pitch [x] | Mounting Type | Number of Positions Loaded | Number of Columns | Features | Termination | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Connector Type | Connector Usage | Number of Rows | Number of Positions | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | Gold | -55 °C | 125 °C | 50 VAC | 32 | 40 | 8 | Center MULTIG | 0.071 in | 1.8 mm | Board Edge Right Angle Through Hole | All | 16 | Board Guide | Press-Fit | 50 µin | 1.27 µm | UL94 V-0 | Plug Male Blades | Daughtercard | 7 | 112 | Black |
