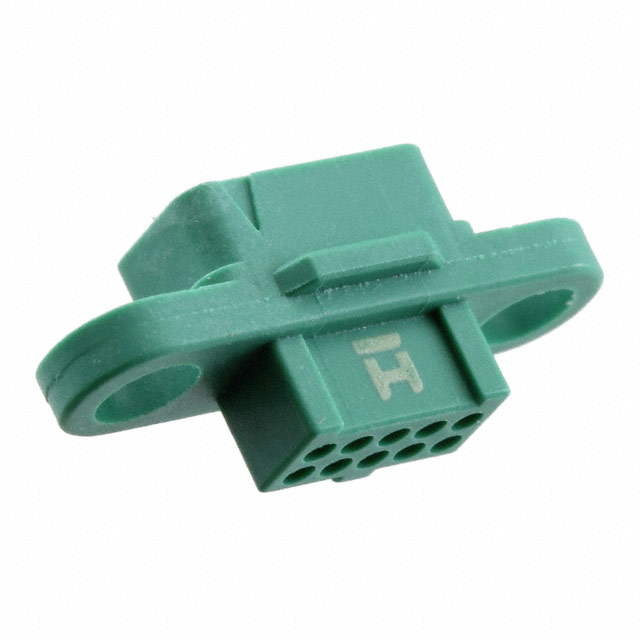

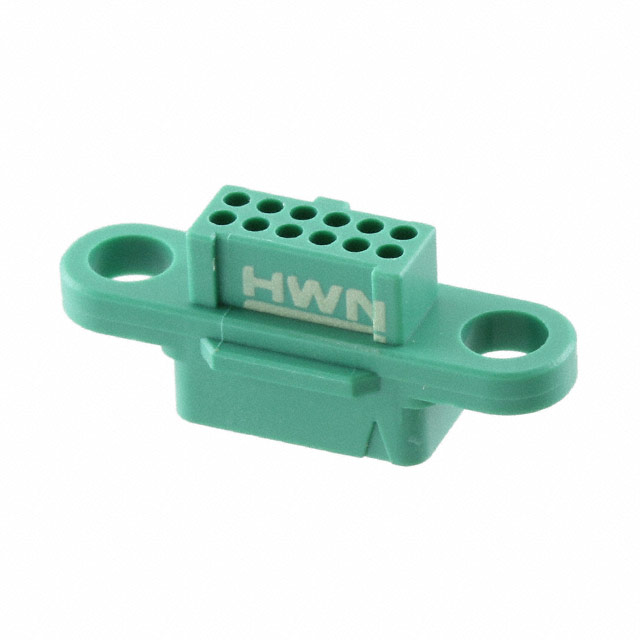

G125-224 Series
Manufacturer: Harwin Inc.
Beta
⌘K

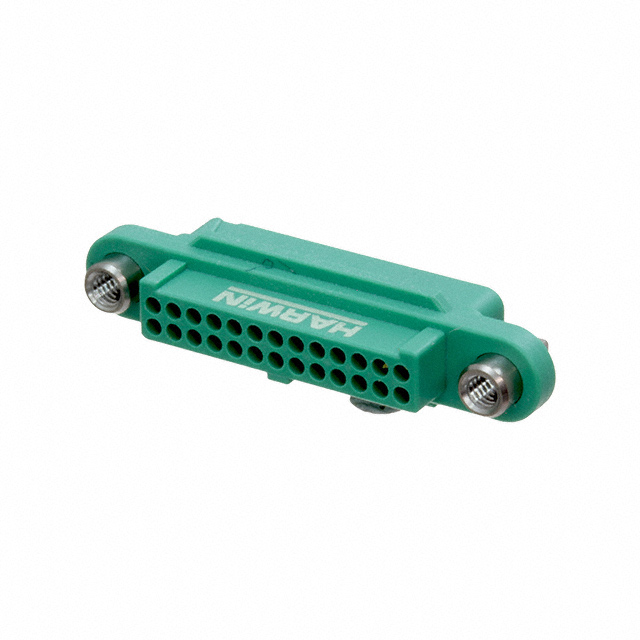

13+13 POS. FEMALE DIL CABLE HOUSING, NO SCREW-LOK ROHS COMPLIANT: YES
| Part | Note | Row Spacing | Row Spacing | Number of Rows [custom] | Contact Termination | Mounting Type | Connector Type | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Pitch | Pitch | Number of Positions | Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Contacts Not Included | 1.25 mm | 0.049 in | 2 | Crimp | Panel Mount | Receptacle | Female Socket | 150 °C | -65 ░C | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.049 in | 1.25 mm | 26 | Green | Mounting Flange Polarizing Key |
 Harwin Inc. | Contacts Not Included | 1.25 mm | 0.049 in | 2 | Crimp | Panel Mount | Receptacle | Female Socket | 150 °C | -65 ░C | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.049 in | 1.25 mm | 50 | Green | Jackscrews Mating Flange Mounting Flange Polarizing Key |
 Harwin Inc. | Contacts Not Included | 1.25 mm | 0.049 in | 2 | Crimp | Panel Mount | Receptacle | Female Socket | 150 °C | -65 ░C | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.049 in | 1.25 mm | 6 | Green | Jackscrews Mating Flange Mounting Flange Polarizing Key |
 Harwin Inc. | Contacts Not Included | 1.25 mm | 0.049 in | 2 | Crimp | Panel Mount | Receptacle | Female Socket | 150 °C | -65 ░C | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.049 in | 1.25 mm | 50 | Green | Jackscrews Mounting Flange Polarizing Key |
 Harwin Inc. | Contacts Not Included | 1.25 mm | 0.049 in | 2 | Crimp | Free Hanging (In-Line) | Receptacle | Female Socket | 150 °C | -65 ░C | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.049 in | 1.25 mm | 10 | Green | Jackscrews Mating Flange Polarizing Key |
 Harwin Inc. | Contacts Not Included | 1.25 mm | 0.049 in | 2 | Crimp | Panel Mount | Receptacle | Female Socket | 150 °C | -65 ░C | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.049 in | 1.25 mm | 10 | Green | Jackscrews Mating Flange Mounting Flange Polarizing Key |
 Harwin Inc. | Contacts Not Included | 1.25 mm | 0.049 in | 2 | Crimp | Panel Mount | Receptacle | Female Socket | 150 °C | -65 ░C | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.049 in | 1.25 mm | 10 | Green | Mounting Flange Polarizing Key |
 Harwin Inc. | Contacts Not Included | 1.25 mm | 0.049 in | 2 | Crimp | Panel Mount | Receptacle | Female Socket | 150 °C | -65 ░C | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.049 in | 1.25 mm | 10 | Green | Jackscrews Mounting Flange Polarizing Key |
 Harwin Inc. | Contacts Not Included | 1.25 mm | 0.049 in | 2 | Crimp | Panel Mount | Receptacle | Female Socket | 150 °C | -65 ░C | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.049 in | 1.25 mm | 16 | Green | Jackscrews Mounting Flange Polarizing Key |
 Harwin Inc. | Contacts Not Included | 1.25 mm | 0.049 in | 2 | Crimp | Panel Mount | Receptacle | Female Socket | 150 °C | -65 ░C | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.049 in | 1.25 mm | 6 | Green | Jackscrews Mounting Flange Polarizing Key |
