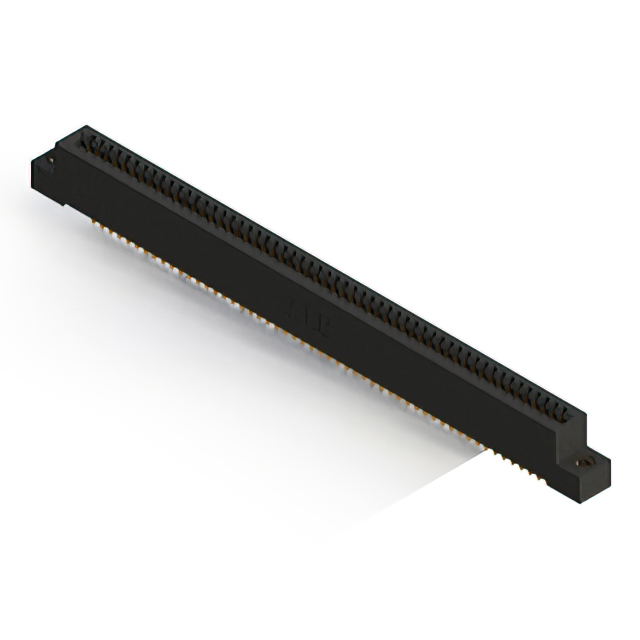

892-055 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 55POS 0.100
| Part | Number of Positions | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Card Type | Contact Type | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Color | Number of Rows | Read Out | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish | Number of Positions/Bay/Row | Pitch | Pitch | Termination Rows | Material - Insulation | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 55 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Solder | 125 °C | -40 C | Female | Black | 1 | Single | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Gold | 55 | 0.1 " | 2.54 mm | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy |
 EDAC Inc. | 55 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Solder | 125 °C | -40 C | Female | Black | 1 | Single | 0.25 Ám | 10 Áin | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Gold | 55 | 0.1 " | 2.54 mm | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy |
 EDAC Inc. | 55 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Wire Wrap | 125 °C | -40 C | Female | Black | 1 | Single | 0.25 Ám | 10 Áin | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 55 | 0.1 " | 2.54 mm | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | ||
 EDAC Inc. | 55 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Wire Wrap | 125 °C | -40 C | Female | Black | 1 | Single | 0.25 Ám | 10 Áin | Gold | 55 | 0.1 " | 2.54 mm | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | |||
 EDAC Inc. | 55 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Solder | 125 °C | -40 C | Female | Black | 1 | Single | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Gold | 55 | 0.1 " | 2.54 mm | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy |
 EDAC Inc. | 55 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Solder Eyelet(s) | 125 °C | -40 C | Female | Black | 1 | Single | 0.25 Ám | 10 Áin | Flush Mount M3 Threaded Insert Top Opening | Gold | 55 | 0.1 " | 2.54 mm | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | ||
 EDAC Inc. | 55 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Wire Wrap | 125 °C | -40 C | Female | Black | 1 | Single | 0.25 Ám | 10 Áin | Gold | 55 | 0.1 " | 2.54 mm | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | |||
 EDAC Inc. | 55 | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Solder | 125 °C | -40 C | Female | Black | 1 | Single | 0.25 Ám | 10 Áin | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 55 | 0.1 " | 2.54 mm | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy | ||
 EDAC Inc. | 55 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Solder | 125 °C | -40 C | Female | Black | 1 | Single | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Gold | 55 | 0.1 " | 2.54 mm | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy |
 EDAC Inc. | 55 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Single Edge | Cantilever | Solder | 125 °C | -40 C | Female | Black | 1 | Single | 0.25 Ám | 10 Áin | Flush Mount M3 Threaded Insert Top Opening | Gold | 55 | 0.1 " | 2.54 mm | 1 | Polyphenylene Sulfide (PPS) | Copper Alloy |
