TR20A Series
Manufacturer: ITT Cannon, LLC
Beta
⌘K
CIRCULAR CONNECTOR CLAMP, STRAIGHT, SEALED, TRIDENT RINGLOCK SERIES, 20, NYLON (POLYAMIDE), 21.1 MM ROHS COMPLIANT: YES
| Part | For Use With/Related Products | Includes | Material Flammability Rating | Cable Opening | Cable Opening | Material | Shell Size - Insert | Type | Shielding | Color | Features | Cable Exit | Ingress Protection | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

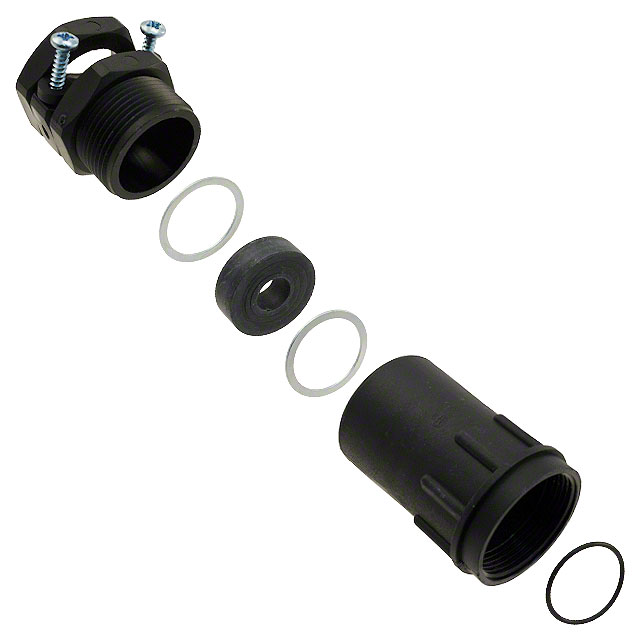

 ITT Cannon, LLC | Jacketed Cable | 1 Grommet 1 O-Ring 2 pc Cable Clamp 2 Screws 2 Washers 9 pcs - 1 Backshell | UL94 V-0 | 22.1 mm | 0.87 in | Polyamide (PA) Nylon | 20 | Backshell Cable Clamp | Unshielded | Black | Clamp Screws Grommet | 180 ° | IP65 - Dust Tight Water Resistant | |||

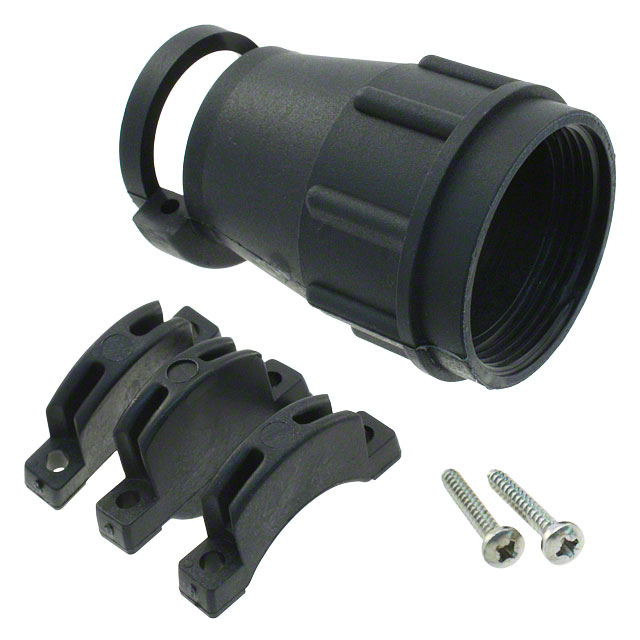

 ITT Cannon, LLC | Discrete Wires or Jacketed Cables | 2 Screws 3 Clamp Bars 6 pcs - 1 Backshell | UL94 V-0 | 21 mm | 0.827 in | Polyamide (PA) Nylon | 20 | Backshell Cable Clamp | Unshielded | Black | Clamp Screws | 180 ° | 36.4 mm | 1.433 in | ||
 ITT Cannon, LLC | Trident Ringlock (TR) Connectors | Metal | 20 | Backshell Heat Shrink Adapter | Unshielded | Silver | 180 ° | 36.5 mm | 1.437 in | 1 3/16-18 UNEF-2B |
