78511 Series

Catalog

BERGSTIK II HEADER .100/

Part	Voltage Rating	Current Rating (Amps)	Insulation Color	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Material Flammability Rating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Number of Rows	Insulation Height	Insulation Height	Contact Material	Fastening Type	Contact Type	Shrouding	Pitch - Mating	Pitch - Mating	Termination	Contact Finish - Mating	Number of Positions	Contact Finish - Post	Insulation Material	Number of Positions
Amphenol ICC (FCI) 78511-405HALF	110 VDC	3 A	Black	Through Hole	-65 ░C	130 °C	0.538 "	13.67 mm	0.318 "	8.08 mm	0.12 in	3.05 mm	Square	UL94 V-0	All	2.54 çm	100 çin	Header	1	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Male Pin	Unshrouded	0.1 in	2.54 mm	Solder
Amphenol ICC (FCI) 78511-206HLF		5 A	Black	Through Hole	-65 ░C	125 °C	0.538 "	13.67 mm	0.318 "	8.08 mm	0.12 in	3.05 mm	Square	UL94 V-0	All	0.38 µm	15 µin	Header	1	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Male Pin	Unshrouded	0.1 in	2.54 mm	Solder	Gold or Gold GXT™	6
Amphenol ICC (FCI) 78511-236H			Black	Through Hole			0.538 "	13.67 mm	0.318 "	8.08 mm	0.12 in	3.05 mm	Square	UL94 V-0	All	0.38 µm	15 µin	Header	1	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Male Pin	Unshrouded	0.1 in	2.54 mm	Solder	Gold or Gold GXT™	36
Amphenol ICC (FCI) 78511-109HLF	110 VDC	5 A	Black	Through Hole	-65 ░C	125 °C	0.538 "	13.67 mm	0.318 "	8.08 mm	0.12 in	3.05 mm	Square	UL94 V-0	All	0.76 Ám	30 Áin	Header	1	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Male Pin	Unshrouded	0.1 in	2.54 mm	Solder	Gold or Gold GXT™	9

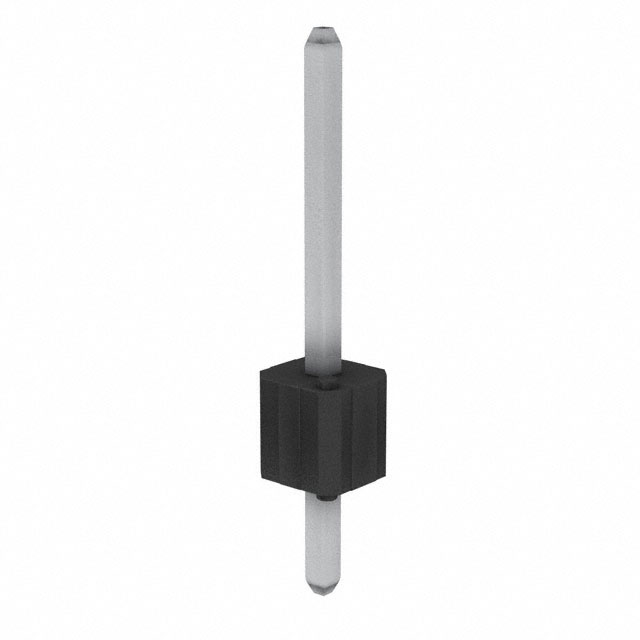

Amphenol ICC (FCI) 78511-401HLF		5 A	Black	Through Hole	-65 ░C	125 °C	0.538 "	13.67 mm	0.318 "	8.08 mm	0.12 in	3.05 mm	Square	UL94 V-0	All	2.54 çm	100 çin	Header	1	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Male Pin	Unshrouded			Solder		1	Tin
Amphenol ICC (FCI) 78511-106HLF	110 VDC	5 A	Black	Through Hole	-65 ░C	125 °C	0.538 "	13.67 mm	0.318 "	8.08 mm	0.12 in	3.05 mm	Square	UL94 V-0	All	0.76 Ám	30 Áin	Header	1	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Male Pin	Unshrouded	0.1 in	2.54 mm	Solder	Gold or Gold GXT™	6		Liquid Crystal Polymer (LCP)
Amphenol ICC (FCI) 78511-428HLF	110 VDC	5 A	Black	Through Hole	-65 ░C	125 °C	0.538 "	13.67 mm	0.318 "	8.08 mm	0.12 in	3.05 mm	Square	UL94 V-0	All	2.54 çm	100 çin	Header	1	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Male Pin	Unshrouded	0.1 in	2.54 mm	Solder		28	Tin
Amphenol ICC (FCI) 78511-116HLF	110 VDC	5 A	Black	Through Hole	-65 ░C	125 °C	0.538 "	13.67 mm	0.318 "	8.08 mm	0.12 in	3.05 mm	Square	UL94 V-0	All	0.76 Ám	30 Áin	Header	1	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Male Pin	Unshrouded	0.1 in	2.54 mm	Solder	Gold or Gold GXT™				16
Amphenol ICC (FCI) 78511-436H		5 A	Black	Through Hole	-65 ░C	125 °C	0.538 "	13.67 mm	0.318 "	8.08 mm	0.12 in	3.05 mm	Square	UL94 V-0	All	2.54 çm	100 çin	Header	1	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Male Pin	Unshrouded	0.1 in	2.54 mm	Solder		36

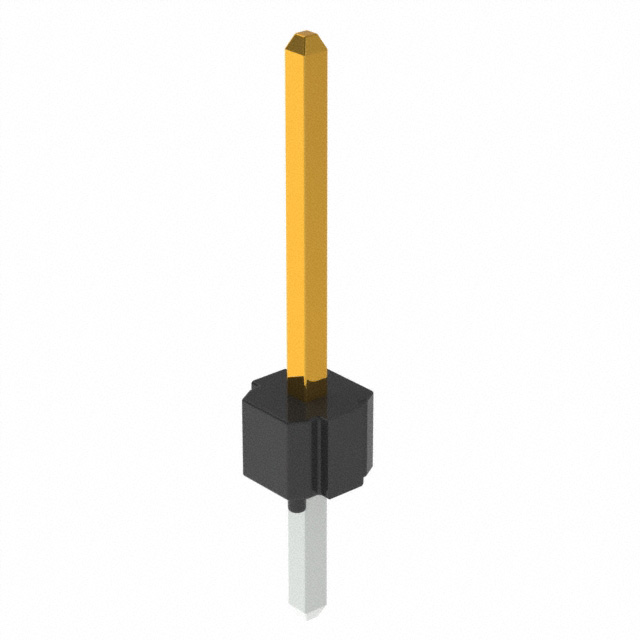

Amphenol ICC (FCI) 78511-500H			Black	Through Hole			0.538 "	13.67 mm	0.318 "	8.08 mm	0.12 in	3.05 mm	Square	UL94 V-0	All	0.38 µm	15 µin	Header	1	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Male Pin	Unshrouded	0.1 in	2.54 mm	Solder	Gold or Gold GXT™			Liquid Crystal Polymer (LCP)	Cuttable
