MPQ4570 Series

Catalog

POWER MANAGEMENT IC DEVELOPMENT TOOLS EVALUATION BOARD FOR MPQ4570

Part	Board Type	Outputs and Type	Outputs and Type	Supplied Contents	Regulator Topology	Contents	Current - Output	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose	Utilized IC / Part	Frequency - Switching	Topology	Voltage - Input (Min) [Min]	Output Type	Voltage - Input (Max) [Max]	Function	Voltage - Output (Max) [Max]	Output Configuration	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Mounting Type	Voltage - Output (Min/Fixed)	Package / Case	Package / Case	Qualification	Grade

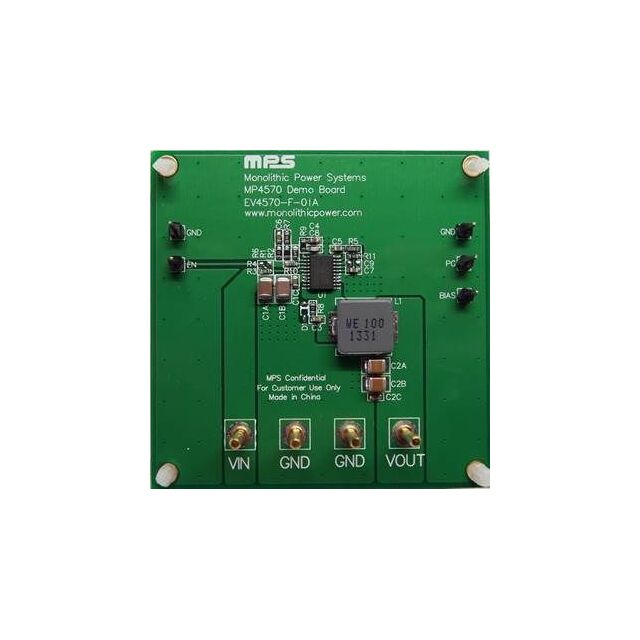

Monolithic Power Systems Inc. EV4570-F-01A	Fully Populated	1	1 Non-Isolated Output Non-Isolated	Board(s)	Buck	Board(s)	3 A	3.3 V	55 V	4.5 V	DC/DC Step Down	MP4570 MPQ4570

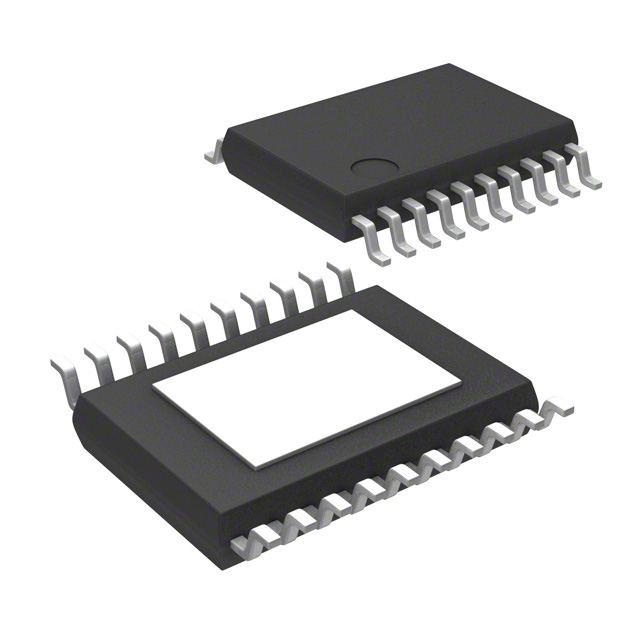

Monolithic Power Systems Inc. MPQ4570GF							3 A						520 kHz	Buck	4.5 V	Adjustable	55 V	Step-Down	49.5 V	Positive	1	-40 C	125 °C	20-TSSOP-EP	Surface Mount	1 V	20-TSSOP Exposed Pad	0.173 " 4.4 mm
Monolithic Power Systems Inc. MPQ4570GF-AEC1							3 A						520 kHz	Buck	4.5 V	Adjustable	55 V	Step-Down	49.5 V	Positive	1	-40 C	125 °C	20-TSSOP-EP	Surface Mount	1 V	20-TSSOP Exposed Pad	0.173 " 4.4 mm	AEC-Q100	Automotive
Monolithic Power Systems Inc. MPQ4570GF-AEC1-Z							3 A						520 kHz	Buck	4.5 V	Adjustable	55 V	Step-Down	49.5 V	Positive	1	-40 C	125 °C	20-TSSOP-EP	Surface Mount	1 V	20-TSSOP Exposed Pad	0.173 " 4.4 mm	AEC-Q100	Automotive
Monolithic Power Systems Inc. MPQ4570GF-Z							3 A						520 kHz	Buck	4.5 V	Adjustable	55 V	Step-Down	49.5 V	Positive	1	-40 C	125 °C	20-TSSOP-EP	Surface Mount	1 V	20-TSSOP Exposed Pad	0.173 " 4.4 mm
