DAC2902 Series
Manufacturer: Texas Instruments
Beta
⌘K
DUAL-CHANNEL, 12-BIT, 125-MSPS DIGITAL-TO-ANALOG CONVERTER (DAC)
| Part | Mounting Type | Settling Time | Differential Output | Output Type | INL/DNL (LSB) | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Architecture | Supplier Device Package | Reference Type | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Number of Bits | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Data Interface | Number of DAC's | Supplied Contents | DAC Type | Sampling Rate (Per Second) | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Surface Mount | 30 ns | Current - Unbuffered | ±1 | 3 V | 5.5 V | Segmented DAC | 48-TQFP (7x7) | External Internal | 48-TQFP | 85 °C | -40 °C | 12 bits | 3 V | 5.5 V | Parallel | ||||||

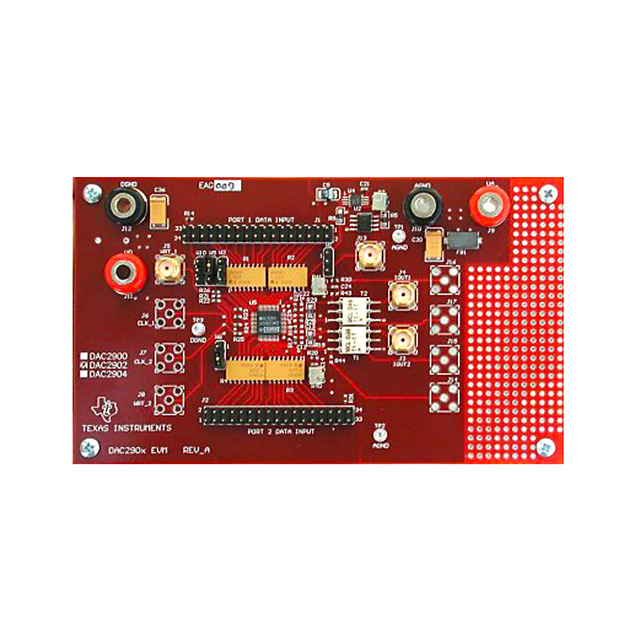

 Texas Instruments | 30 ns | 12 bits | Parallel | 2 | Board(s) | Current | 125 M | DAC2902 | ||||||||||||||
Texas Instruments | Surface Mount | 30 ns | Current - Unbuffered | ±1 | 3 V | 5.5 V | Segmented DAC | 48-TQFP (7x7) | External Internal | 48-TQFP | 85 °C | -40 °C | 12 bits | 3 V | 5.5 V | Parallel | ||||||
Texas Instruments | Surface Mount | 30 ns | Current - Unbuffered | ±1 | 3 V | 5.5 V | Segmented DAC | 48-TQFP (7x7) | External Internal | 48-TQFP | 85 °C | -40 °C | 12 bits | 3 V | 5.5 V | Parallel |
