TPS62360 Series

Catalog

PROCESSOR CORE SUPPLY WITH I2C COMPATIBLE INTERFACE AND REMOTE SENSE. 0.77 TO 1.4 VOUT

Part	Number of Outputs	Frequency - Switching	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Supplier Device Package	Mounting Type	Package / Case	Voltage - Output (Max) [Max]	Voltage - Output (Min/Fixed)	Topology	Function	Output Configuration	Voltage - Input (Max) [Max]	Current - Output	Voltage - Input (Min) [Min]	Outputs and Type	Outputs and Type	Board Type	Supplied Contents	Regulator Topology	Utilized IC / Part	Main Purpose	Voltage - Input [Max]	Voltage - Input [Min]	Contents	Voltage - Output [Min]	Voltage - Output [Max]
Texas Instruments TPS62360YZHT	1	2.5 MHz	85 C	-40 ¯C	Adjustable (Programmable)	16-DSBGA (2.24x2.16)	Surface Mount	16-UFBGA DSBGA	1.4 V	0.77 V 1 V 1.1 V 1.4 V	Buck	Step-Down	Positive	5.5 V	2.5 A	2.5 V
Texas Instruments TPS62360YZHR	1	2.5 MHz	85 C	-40 ¯C	Adjustable (Programmable)	16-DSBGA (2.24x2.16)	Surface Mount	16-UFBGA DSBGA	1.4 V	0.77 V 1 V 1.1 V 1.4 V	Buck	Step-Down	Positive	5.5 V	2.5 A	2.5 V

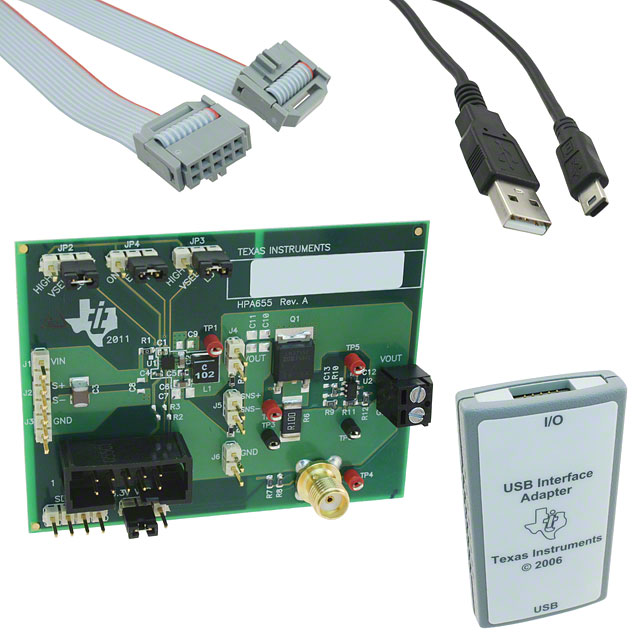

Texas Instruments TPS62360EVM-655		2.5 MHz													3 A		1	1 Non-Isolated Output Non-Isolated	Fully Populated	Board(s)	Buck	TPS62360	DC/DC Step Down	5.5 V	2.5 V	Board(s)	0.77 V	1.4 V
