CV201210 Series

Catalog

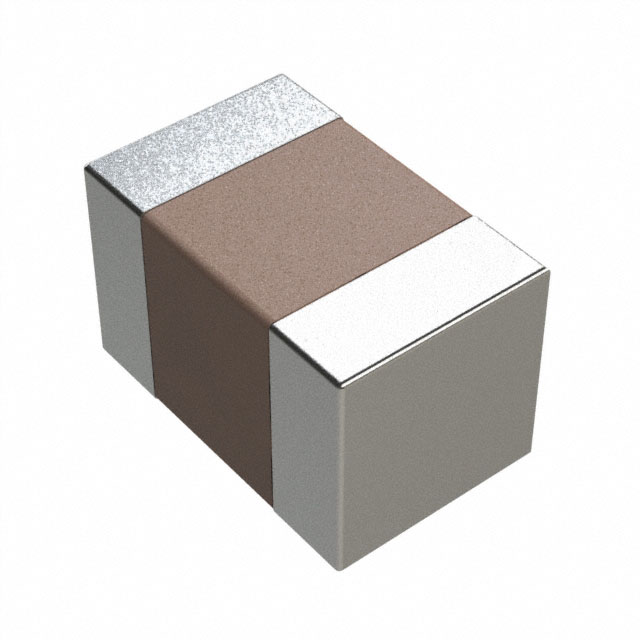

IND2X1.25X1.25MM,5.6UH10%0.015A,SHDSMD /TAPE & REEL - 7" REEL

Part	Inductance Frequency - Test	Frequency - Self Resonant	Type	Inductance	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Material - Core	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Q @ Freq	Mounting Type	Current Rating (Amps)	DC Resistance (DCR) [Max]	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. CV201210-5R6K	4 MHz	32 MHz	Multilayer	5.6 µH	10 %	0.057 in	1.45 mm	Shielded	2 mm	1.25 mm	0.049 "	0.079 in	Ferrite	0805 (2012 Metric)	-55 C	125 °C	0805	4 MHz 45	Surface Mount	0.015 A
Bourns Inc. CV201210-3R3K	10 MHz	41 MHz	Multilayer	3.3 µH	10 %	0.057 in	1.45 mm	Shielded	2 mm	1.25 mm	0.049 "	0.079 in	Ferrite	0805 (2012 Metric)	-55 C	125 °C	0805	10 MHz 45	Surface Mount	30 mA	800 mOhm
Bourns Inc. CV201210-68NK	50 MHz	280 MHz	Multilayer	68 nH	10 %			Shielded	2 mm	1.25 mm	0.049 "	0.079 in	Ferrite	0805 (2012 Metric)	-55 C	125 °C	0805	15 50 MHz	Surface Mount	0.3 A		200 mOhm
Bourns Inc. CV201210-R68K	25 MHz	105 MHz	Multilayer	0.68 µH	10 %	0.057 in	1.45 mm	Shielded	2 mm	1.25 mm	0.049 "	0.079 in	Ferrite	0805 (2012 Metric)	-55 C	125 °C	0805		Surface Mount	150 mA	800 mOhm		25 MHz	25
Bourns Inc. CV201210-100K	2 MHz	24 MHz	Multilayer	10 µH	10 %	0.057 in	1.45 mm	Shielded	2 mm	1.25 mm	0.049 "	0.079 in	Ferrite	0805 (2012 Metric)	-55 C	125 °C	0805	2 MHz 45	Surface Mount	0.015 A		1.15 Ohm
Bourns Inc. CV201210-3R9K	10 MHz	38 MHz	Multilayer	3.9 µH	10 %	0.057 in	1.45 mm	Shielded	2 mm	1.25 mm	0.049 "	0.079 in	Ferrite	0805 (2012 Metric)	-55 C	125 °C	0805	10 MHz 45	Surface Mount	30 mA
Bourns Inc. CV201210-R82K	25 MHz	100 MHz	Multilayer	820 nH	10 %	0.057 in	1.45 mm	Shielded	2 mm	1.25 mm	0.049 "	0.079 in	Ferrite	0805 (2012 Metric)	-55 C	125 °C	0805		Surface Mount	150 mA	1 Ohm		25 MHz	25
Bourns Inc. CV201210-R10K	25 MHz	235 MHz	Multilayer	100 nH	10 %			Shielded	2 mm	1.25 mm	0.049 "	0.079 in	Ferrite	0805 (2012 Metric)	-55 C	125 °C	0805	20 25 MHz	Surface Mount	0.25 A	300 mOhm
Bourns Inc. CV201210-120K	2 MHz	22 MHz	Multilayer	12 µH	10 %	0.057 in	1.45 mm	Shielded	2 mm	1.25 mm	0.049 "	0.079 in	Ferrite	0805 (2012 Metric)	-55 C	125 °C	0805	2 MHz 45	Surface Mount	5 mA	1.25 Ohm
Bourns Inc. CV201210-R22K	25 MHz	170 MHz	Multilayer	220 nH	10 %			Shielded	2 mm	1.25 mm	0.049 "	0.079 in	Ferrite	0805 (2012 Metric)	-55 C	125 °C	0805	20 25 MHz	Surface Mount	0.25 A	500 mOhm
