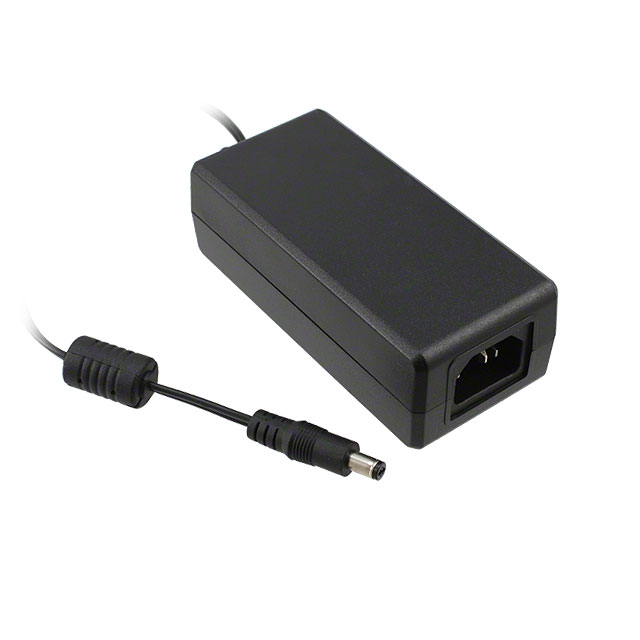

KTPS50 Series

Catalog

AC/DC DESKTOP ADAPTER 15V 50W

Part	Voltage - Input [Min]	Voltage - Input [Max]	Region Utilized	Standard Number	Current - Output (Max) [Max]	Form	Input Type	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Polarization	Cord Length	Cord Length	Efficiency	Input Connector	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Approval Agency	Output Connector	Output Connector [diameter]	Output Connector [x]
Volgen + Furuno KTPS50-1533DT-3P-VI-C-P1	100 VAC	240 VAC	International	60950-1	3.34 A	Desktop (Class I)	Cord (Sold Separately)	ITE (Commercial)	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	50 W	Positive Center	1.5 m	59 in	Level VI	IEC 320-C14	40 °C	0 °C	15 V	IEC	Barrel Plug	2.1 mm 5.5 mm	9.5 mm
Volgen + Furuno KTPS50-2421DT-3P-VI-C-P1	100 VAC	240 VAC	International	60950-1	2.1 A	Desktop (Class I)	Cord (Sold Separately)	ITE (Commercial)	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	50 W	Positive Center	1.5 m	59 in	Level VI	IEC 320-C14	40 °C	0 °C	24 V	IEC	Barrel Plug	2.1 mm 5.5 mm	9.5 mm
