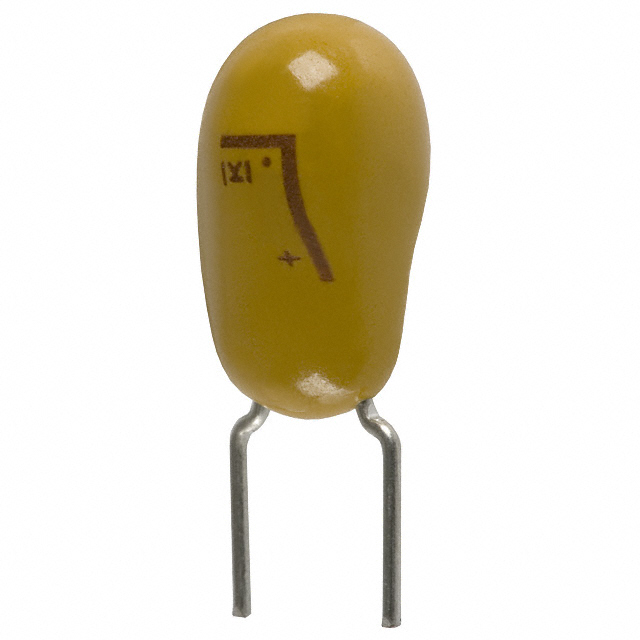

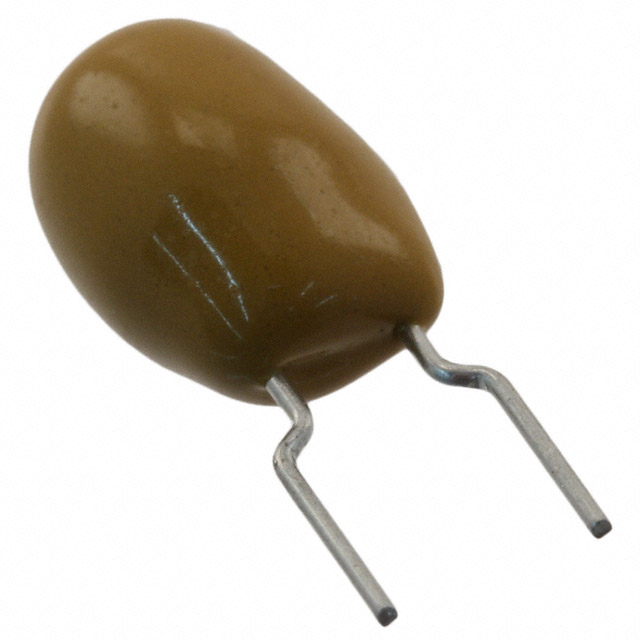

T356K Series

Manufacturer: KEMET

Catalog

CAP TANT 47UF 10% 25V RADIAL

Part	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Lead Spacing	Lead Spacing	Capacitance	Features	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Mounting Type	Manufacturer Size Code	Type	ESR (Equivalent Series Resistance)
KEMET T356K476K025AS	Radial	0.61 in	15.5 mm	25 VDC	0.2 in	5.08 mm	47 µF	General Purpose	0.35 in	8.9 mm	-55 C	125 °C	10 %	Through Hole	K	Conformal Coated	1 Ohms
KEMET T356K106K050AT	Radial	0.61 in	15.5 mm	50 VDC	0.2 in	5.08 mm	10 µF	General Purpose	0.35 in	8.9 mm	-55 C	125 °C	10 %	Through Hole	K	Conformal Coated	1.6 Ohm
KEMET T356K106K050AS	Radial	0.61 in	15.5 mm	50 VDC	0.2 in	5.08 mm	10 µF	General Purpose	0.35 in	8.9 mm	-55 C	125 °C	10 %	Through Hole	K	Conformal Coated	1.6 Ohm
KEMET T356K226K035AS	Radial	0.61 in	15.5 mm	35 V	0.2 in	5.08 mm	22 µF	General Purpose	0.35 in	8.9 mm	-55 C	125 °C	10 %	Through Hole	K	Conformal Coated	1.3 Ohm
