5341FE Series
Manufacturer: Belden Inc.
Beta
⌘K

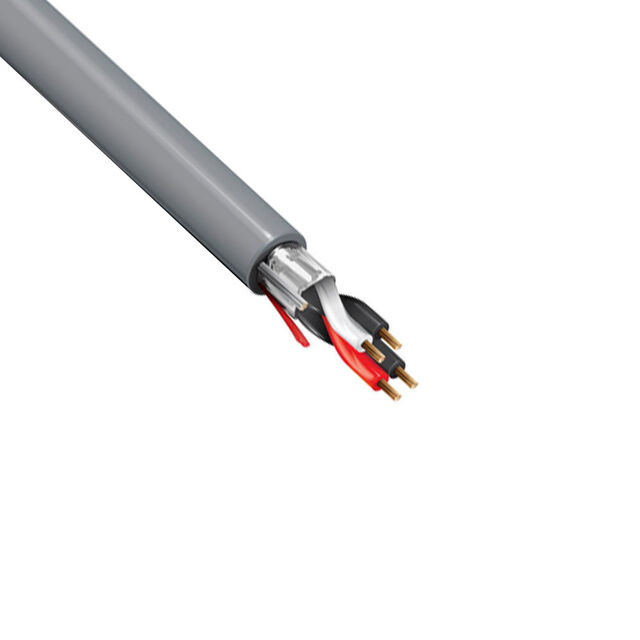

MULTICONDUCTOR CABLE, SHIELDED, 2 CONDUCTOR, 18 AWG, 500 FT, 152.4 M
| Part | Shield Material | Jacket (Insulation) Material | Number of Conductors | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] | Conductor Insulation | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Cable Type | Ratings | Usage | Wire Gauge | Shield Coverage | Features | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | Poly-Vinyl Chloride (PVC) Riser | 4 | 15.24 m 152.4 m | 50 ft 500 ft | 26 AWG | 7 | -20 ░C | 70 °C | 100 ft | 30.5 m | Polypropylene (PP) | Copper Bare | 0.017 " | 0.432 mm | Gray | 0.25 " | 6.35 mm | Foil | Multi-Pair | UL Style CMR | Alarm Security Sound | 18 AWG | |||
 Belden Inc. | Aluminum | Poly-Vinyl Chloride (PVC) Riser | 4 | 304.8 m | 1000 ft | 26 AWG | 7 | -20 ░C | 70 °C | Polypropylene (PP) | Copper Bare | 0.017 " | 0.432 mm | Gray | 0.25 " | 6.35 mm | Foil | Multi-Pair | UL Style CMR | Alarm Security Sound | 18 AWG | 100 % | Rip Cord | 300 VDC | ||
 Belden Inc. | Aluminum | Poly-Vinyl Chloride (PVC) Riser | 4 | 304.8 m | 1000 ft | 26 AWG | 7 | -20 ░C | 70 °C | Polypropylene (PP) | Copper Bare | 0.017 " | 0.432 mm | Gray | 0.25 " | 6.35 mm | Foil | Multi-Pair | UL Style CMR | Alarm Security Sound | 18 AWG | 100 % | Rip Cord | 300 VDC | ||
Belden Inc. | Aluminum | Poly-Vinyl Chloride (PVC) Riser | 4 | 365.8 m | 1200 ft | 26 AWG | 7 | -20 ░C | 70 °C | Polypropylene (PP) | Copper Bare | 0.017 " | 0.432 mm | Gray | 0.25 " | 6.35 mm | Foil | Multi-Pair | UL Style CMR | Alarm Security Sound | 18 AWG | 100 % | Rip Cord | 300 VDC |
