88125 Series
Manufacturer: Belden Inc.
Beta
⌘K

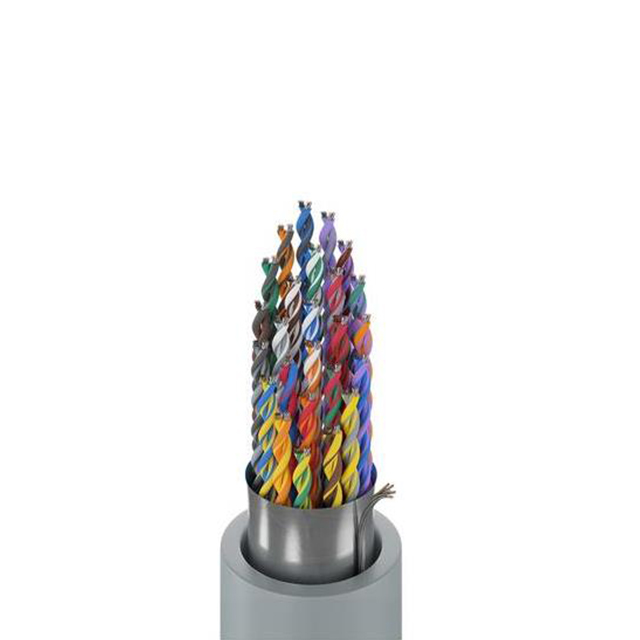

MULTI-PAIR 50CON 24AWG GRY
| Part | Shield Material | Shield Coverage | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Cable Type | Length | Length | Voltage | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Wire Gauge | Conductor Material | Number of Conductors | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Foil | 14.76 mm | 0.581 in | UL Style CMP | 0.019 " | 0.483 mm | Computer | Multi-Pair | 304.8 m | 1000 ft | 300 VDC | Plenum Polyvinylidene Fluoride (PVDF) | 150 °C | -20 ░C | Gray | 24 AWG | Copper Tinned | 50 | Foam Fluorinated Ethylene-Propylene (FFEP) | 7 | 32 AWG | Drain Wire |
