XZFBBM2 Series
Manufacturer: SunLED
Beta
⌘K

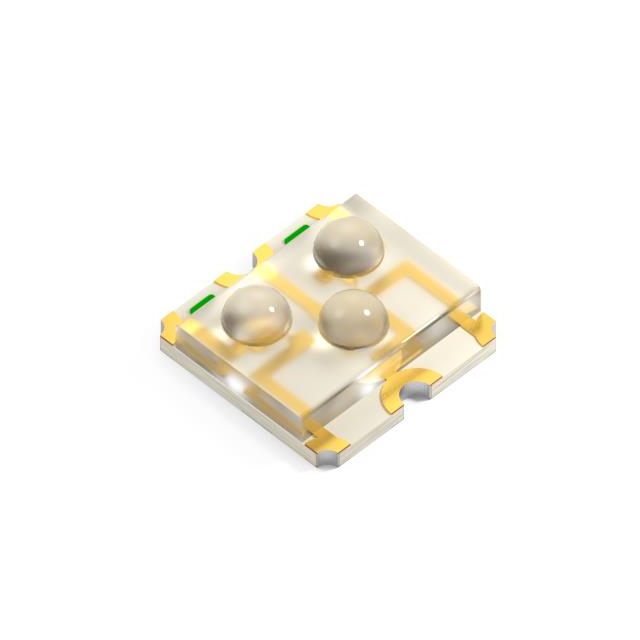

LED RGB CLEAR 6SMD
| Part | Viewing Angle | Voltage - Forward (Vf) (Typ) | Mounting Type | Height (Max) [z] | Current - Test | Lens Style | Supplier Device Package | Lens Color | Package / Case | Configuration | Lens Size [diameter] | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Color | Lens Transparency | Wavelength - Dominant | Size / Dimension [y] | Size / Dimension [x] | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | 50 ° | 2.2 V 3.2 V 3.3 V | Surface Mount | 1.25 mm | 20mA Blue 20mA Green 20mA Red | Rectangle with Domed Top | 6-SMD | Colorless | 6-SMD No Lead | Independent | 1 mm Dia | 520 nm | 640 nm | 465 nm | Blue Green Red | Clear | 470nm Blue 525nm Green 625nm Red | 3.5 mm | 3.5 mm | 1590 mcd | 1890 mcd | 497 mcd |
