SA56-51 Series
Manufacturer: Kingbright
Beta
⌘K

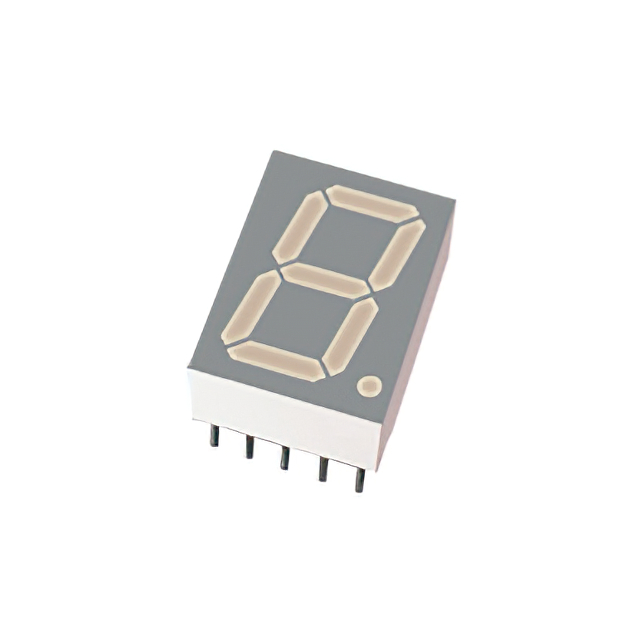

0.56" BLUE 7-SEGMENT LED DISPLAY
| Part | Common Pin | Color | Package / Case | Package / Case | Digit/Alpha Size | Digit/Alpha Size | Millicandela Rating | Wavelength - Peak | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Display Type | Voltage - Forward (Vf) (Typ) | Number of Characters | Current - Test | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kingbright | Common Anode | Blue | 0.6 in 15.24 mm | 10-DIP | 0.56 in | 14.22 mm | 6 mcd | 468 nm | 0.67 " | 8.25 mm | 12.5 mm | 0.492 " | 17.02 mm | 0.325 in | 7-Segment | 3.05 V | 1 | 10 mA | 120 mW |
