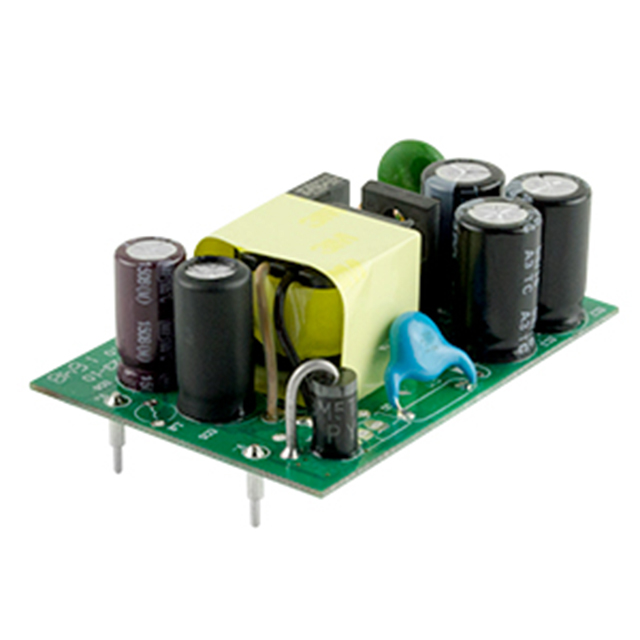

VOF-15B Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 24V 15W
| Part | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Load Regulation | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Type | Line Regulation | Standard Number | Mounting Type | Features | Current - Output (Max) [Max] | Efficiency | Power (Watts) | Approval Agency | Number of Outputs | Voltage - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | ITE (Commercial) | 70 °C | -25 °C | ±1% | 22.9 mm | 0.9 in | 1.67 in | 2.33 " | 42.3 mm | 59.2 mm | 4-DIP Module | Open Frame | 0.5 % | 60950-1 61000-3-2 61000-3-3 62368-1 | Through Hole | Universal Input | 625 mA | 84.5 % | 15 W | CB Scheme EN FCC IEC UL | 1 | 24 V | ||
CUI Inc. | ITE (Commercial) | 70 °C | -25 °C | ±1% | 22.9 mm | 0.9 in | 1.67 in | 2.33 " | 42.3 mm | 59.2 mm | 4-DIP Module | Open Frame | 0.5 % | 60950-1 61000-3-2 61000-3-3 62368-1 | Through Hole | Universal Input | 1 A | 84.5 % | 15 W | CB Scheme EN FCC IEC UL | 1 | 15 V | ||
CUI Inc. | ITE (Commercial) | 70 °C | -25 °C | ±1% | 22.9 mm | 0.9 in | 1.67 in | 2.33 " | 42.3 mm | 59.2 mm | 4-DIP Module | Open Frame | 0.5 % | 60950-1 61000-3-2 61000-3-3 62368-1 | Through Hole | Universal Input | 1.25 A | 84.5 % | 15 W | CB Scheme EN FCC IEC UL | 1 | 12 V | 85 VAC 120 VDC | 264 VAC 370 VDC |
CUI Inc. | ITE (Commercial) | 70 °C | -25 °C | ±1% | 22.9 mm | 0.9 in | 1.67 in | 2.33 " | 42.3 mm | 59.2 mm | 4-DIP Module | Open Frame | 0.5 % | 60950-1 61000-3-2 61000-3-3 62368-1 | Through Hole | Universal Input | 320 mA | 84.63 % | 15 W | CB Scheme EN FCC IEC UL | 1 | 48 V |
