2551-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

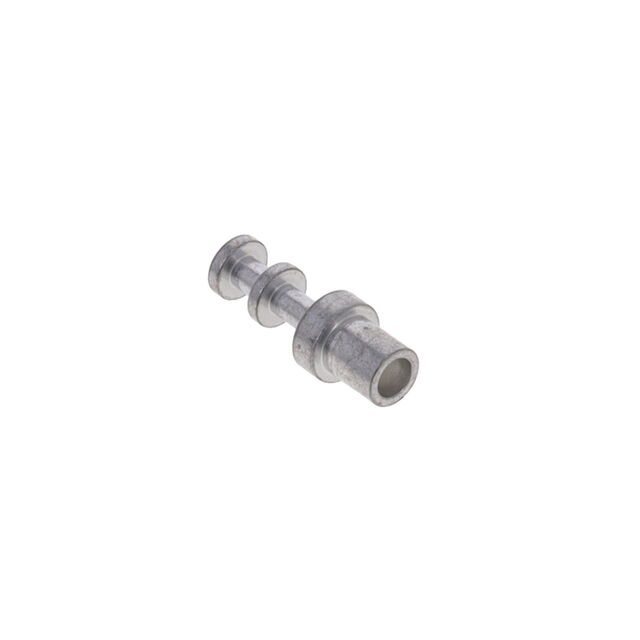

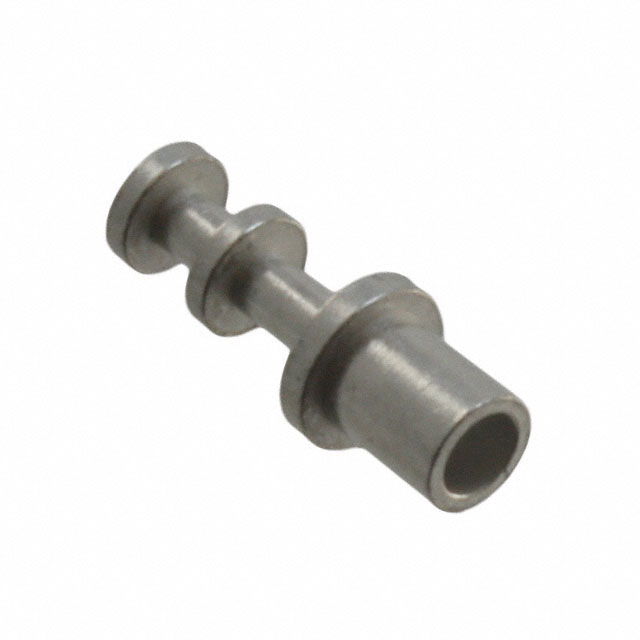

TERM TURRET SINGLE L=6.02MM
| Part | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Terminal Type | Flange Diameter | Flange Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Insulation | Mounting Type | Board Thickness | Board Thickness | Length - Above Board | Length - Above Board | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Termination | Contact Material | Number of Turrets | Staking Side OD [diameter] | Staking Side OD [diameter] | Staking Side ID [diameter] | Staking Side ID [diameter] | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Tin-Lead | 200 Áin | 5.08 Ám | Single End | 3.18 mm | 0.125 in | 2.39 mm | 0.094 " | 2.67 mm | 0.105 in | Non-Insulated | Through Hole | 0.062 in | 1.57 mm | 0.237 in | 6.02 mm | 2.39 mm | 0.094 in | Swage | Brass Alloy | Double | 2.29 mm | 0.09 in | 1.63 mm | 0.064 " | 8.69 mm | 0.342 in |
 Mill-Max Manufacturing Corp. | Tin-Lead | 300 µin | 7.62 µm | Single End | 3.18 mm | 0.125 in | 2.39 mm | 0.094 " | 2.67 mm | 0.105 in | Non-Insulated | Through Hole | 0.062 in | 1.57 mm | 0.237 in | 6.02 mm | 2.39 mm | 0.094 in | Swage | Brass Alloy | Double | 2.29 mm | 0.09 in | 1.63 mm | 0.064 " | 8.69 mm | 0.342 in |
 Mill-Max Manufacturing Corp. | Tin | 200 Áin | 5.08 Ám | Single End | 3.18 mm | 0.125 in | 2.39 mm | 0.094 " | 2.67 mm | 0.105 in | Non-Insulated | Through Hole | 0.062 in | 1.57 mm | 0.237 in | 6.02 mm | 2.39 mm | 0.094 in | Swage | Brass Alloy | Double | 2.29 mm | 0.09 in | 1.63 mm | 0.064 " | 8.69 mm | 0.342 in |
