FPA350 Series
Manufacturer: Ohmite
Beta
⌘K

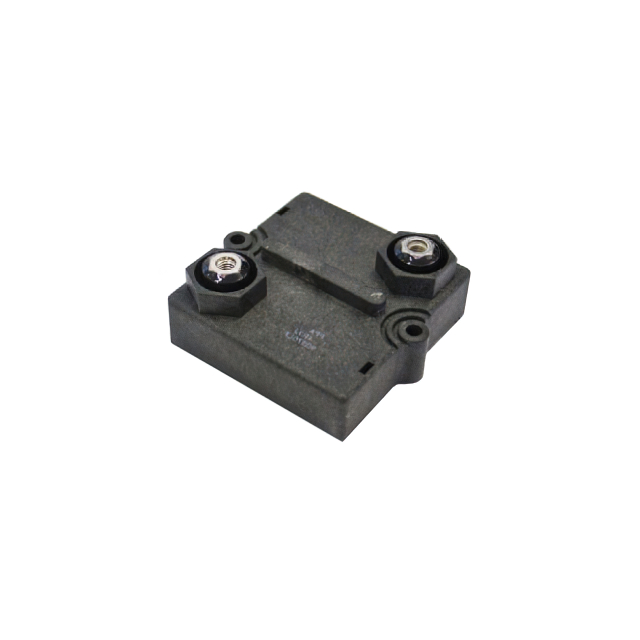

PLANAR RESISTORS - CHASSIS MOUNT 350 WATTS THICK FILM 68 OHM 5%
| Part | Mounting Feature | Power (Watts) | Lead Style | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Composition | Tolerance | Resistance | Operating Temperature [Min] | Operating Temperature [Max] | Temperature Coefficient | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ohmite | Flanges | 350 W | M5 Threaded | 32.5 mm | 1.28 in | Thick Film | 5 % | 68 Ohms | -55 C | 150 °C | 150 ppm/°C | Non-Inductive |
Ohmite | Flanges | 350 W | M5 Threaded | 32.5 mm | 1.28 in | Thick Film | 5 % | 2200 Ohms | -55 C | 150 °C | 150 ppm/°C | Non-Inductive |
Ohmite | Flanges | 350 W | M5 Threaded | 32.5 mm | 1.28 in | Thick Film | 5 % | 22 Ohms | -55 C | 150 °C | 150 ppm/°C | Non-Inductive |
