MAX25301 Series

Catalog

IC REG LINEAR POS PROG 1A 10TDFN

Part	Package / Case	Number of Regulators	Output Type	Voltage Dropout (Max) [Max]	PSRR [Max]	PSRR [Min]	Qualification	Voltage - Output (Min/Fixed)	Current - Output	Output Configuration	Voltage - Output (Max) [Max]	Control Features	Mounting Type	Protection Features	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Grade	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Supplied Contents	Regulator Type	Board Type	Channels per IC	Voltage - Output [Max]	Voltage - Output [Min]	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]

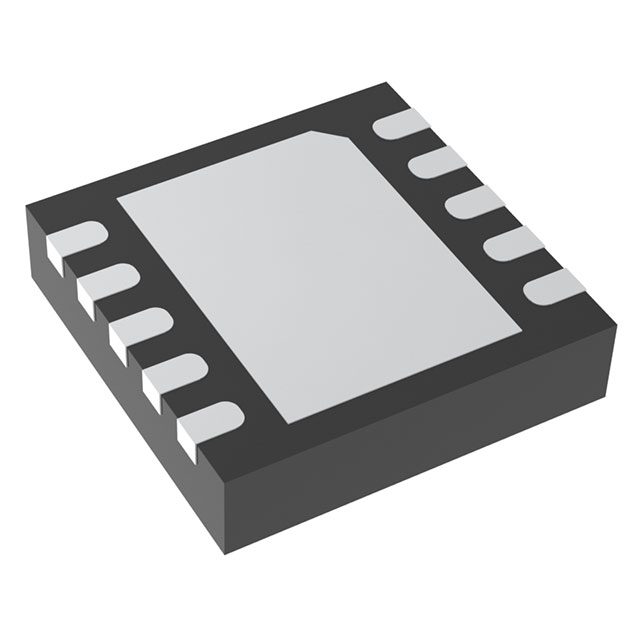

Analog Devices Inc./Maxim Integrated MAX25301BATB/V+	10-WFDFN Exposed Pad	1	Adjustable Programmable	0.3 V	70 db	40 dB	AEC-Q100	0.6 V	1 A	Positive	5.3 V	Enable Reset Out	Surface Mount	Over Current Over Temperature Reverse Current	-40 °C	125 ¯C	10-TDFN (3x3)	Automotive	2 mA	5.5 V

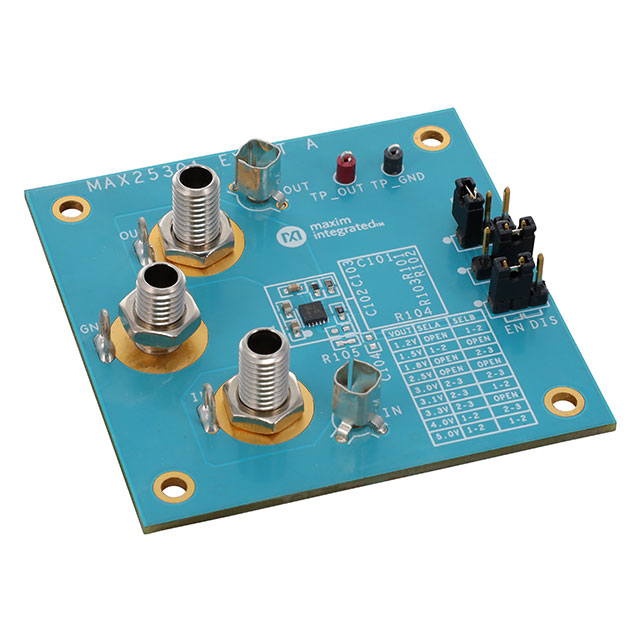

Analog Devices Inc./Maxim Integrated MAX25301EVKIT#									1 A												Board(s)	LDO	Fully Populated	1 - Single	5.3 V	0.6 V	MAX25301	5.5 V	1.7 V
Analog Devices Inc./Maxim Integrated MAX25301AATB/V+	10-WFDFN Exposed Pad	1	Programmable	0.3 V	70 db	40 dB	AEC-Q100	0.6 V	1 A	Positive	5.3 V	Enable Reset Out	Surface Mount	Over Current Over Temperature Reverse Current	-40 °C	125 ¯C	10-TDFN (3x3)	Automotive	2 mA	5.5 V
