ESW477M Series
Manufacturer: KEMET
Beta
⌘K

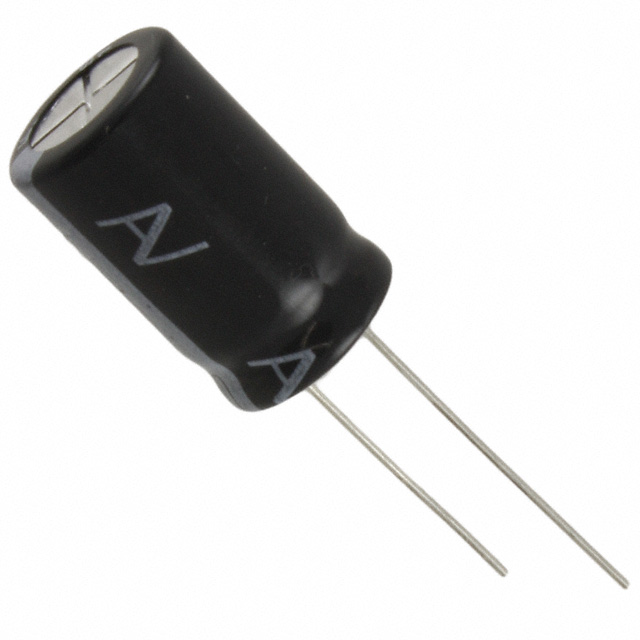

CAP ALUM 470UF 20% 50V RADIAL TH
| Part | Mounting Type | Lead Spacing | Lead Spacing | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Size / Dimension | Size / Dimension [diameter] | Tolerance | ESR (Equivalent Series Resistance) | Impedance | Ripple Current @ Low Frequency | Package / Case | Lifetime @ Temp. | Capacitance | Height - Seated (Max) [Max] [custom] | Height - Seated (Max) [Max] [custom] | Polarization | Voltage - Rated | Ripple Current @ High Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Through Hole | 0.197 " | 5 mm | -40 C | 105 ░C | General Purpose | 13 mm | 0.512 in | 20 % | 45 mOhm | 60 mOhms | 830 mA | Can Radial | 6000 Hrs | 470 µF | 0.866 in | 22 mm | Polar | 50 VDC | 1.66 A |
