N3314 Series

Catalog

CONN HEADER VERT 14POS 2.54MM

Part	Contact Finish Thickness - Post	Connector Type	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Insulation Height [z]	Insulation Height [z]	Contact Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Length - Mating [x]	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Number of Rows [custom]	Contact Material	Insulation Material	Number of Positions	Material Flammability Rating	Mounting Type	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Finish - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Length - Post	Contact Length - Post	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Insulation Height
3M Electronic Specialty N3314-6205	Flash	Header	All	29.21 mm	1.15 in	17.27 mm	0.68 in	Male Pin	Latch Lock/Eject Hooks	-55 C	105 ░C	Shrouded - 4 Wall	0.24 in	6.1 mm	0.1 in	2.54 mm	Wire Wrap	2	Copper Alloy	Glass Filled Polybutylene Terephthalate (PBT) Polyester	14	UL94 V-0	Through Hole	0.1 "	2.54 mm	Black	Gold	Gold	0.76 Ám	30 Áin	Square	15.49 mm	0.61 in	Board to Board Cable
3M Electronic Specialty N3314-6503		Header	All	17.65 mm	0.695 in	17.27 mm	0.68 in	Male Pin	Latch Lock/Eject Hooks	-55 C	105 ░C	Shrouded - 4 Wall	0.24 in	6.1 mm	0.1 in	2.54 mm	Solder	2	Copper Alloy	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	14	UL94 V-0	Through Hole	0.1 "	2.54 mm	Beige	Gold	Tin-Lead	0.76 Ám	30 Áin	Square	3.94 mm	0.155 "	Board to Cable/Wire	200 µin	5.08 µm	1.75 A
3M Electronic Specialty N3314-5002RB		Header	All			8.64 mm	0.34 in	Male Pin	Push-Pull	-55 C	105 ░C	Shrouded - 4 Wall	0.24 in	6.1 mm	0.1 in	2.54 mm	Solder	2	Copper Alloy	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	14	UL94 V-0	Right Angle Through Hole	0.1 "	2.54 mm	Black	Gold	Tin	0.76 Ám	30 Áin	Square			Board to Cable/Wire	200 µin	5.08 µm	1.75 A	0.112 in	2.84 mm

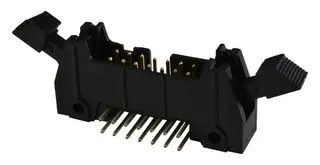

3M Electronic Specialty N3314-5202RB		Header	All			8.64 mm	0.34 in	Male Pin	Latch Lock/Eject Hooks	-55 C	105 ░C	Shrouded - 4 Wall	0.24 in	6.1 mm	0.1 in	2.54 mm	Solder	2	Copper Alloy	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	14	UL94 V-0	Right Angle Through Hole	0.1 "	2.54 mm	Black	Gold	Tin	0.76 Ám	30 Áin	Square			Board to Cable/Wire	200 µin	5.08 µm	1.75 A	0.112 in	2.84 mm
3M Electronic Specialty N3314-1303RB		Header	All					Male Pin	Latch Lock/Eject Hooks Long	-55 C	105 ░C	Shrouded - 3 Wall	0.24 in	6.1 mm	0.1 in	2.54 mm	Solder	2	Copper Alloy	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	14	UL94 V-0	Right Angle Through Hole	0.1 "	2.54 mm	Black	Gold	Tin	0.76 Ám	30 Áin	Square	3.94 mm	0.155 "	Board to Cable/Wire	200 µin	5.08 µm	1.75 A			7.87 mm	0.31 in
3M Electronic Specialty N3314-2003RB		Header	All	17.65 mm	0.695 in			Male Pin	Push-Pull	-55 C	105 ░C	Shrouded - 3 Wall	0.24 in	6.1 mm	0.1 in	2.54 mm	Solder	2	Copper Alloy	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	14	UL94 V-0	Through Hole	0.1 "	2.54 mm	Black	Gold	Tin	0.76 Ám	30 Áin	Square	3.94 mm	0.155 "	Board to Cable/Wire	200 µin	5.08 µm	1.75 A			0.685 in		17.4 mm
3M Electronic Specialty N3314-2302RB		Header	All	16.56 mm	0.652 in	17.27 mm	0.68 in	Male Pin	Latch Lock/Eject Hooks Long	-55 C	105 ░C	Shrouded - 3 Wall	0.24 in	6.1 mm	0.1 in	2.54 mm	Solder	2	Copper Alloy	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	14	UL94 V-0	Through Hole	0.1 "	2.54 mm	Black	Gold	Tin	0.76 Ám	30 Áin	Square			Board to Cable/Wire	200 µin	5.08 µm	1.75 A	0.112 in	2.84 mm
3M Electronic Specialty N3314-5302RB		Header	All			8.64 mm	0.34 in	Male Pin	Latch Lock/Eject Hooks Long	-55 C	105 ░C	Shrouded - 4 Wall	0.24 in	6.1 mm	0.1 in	2.54 mm	Solder	2	Copper Alloy	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	14	UL94 V-0	Right Angle Through Hole	0.1 "	2.54 mm	Black	Gold	Tin	0.76 Ám	30 Áin	Square			Board to Cable/Wire	200 µin	5.08 µm	1.75 A	0.112 in	2.84 mm
3M Electronic Specialty N3314-6203RB		Header	All	17.65 mm	0.695 in	17.27 mm	0.68 in	Male Pin	Latch Lock/Eject Hooks	-55 C	105 ░C	Shrouded - 4 Wall	0.24 in	6.1 mm	0.1 in	2.54 mm	Solder	2	Copper Alloy	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	14	UL94 V-0	Through Hole	0.1 "	2.54 mm	Black	Gold	Tin	0.76 Ám	30 Áin	Square	3.94 mm	0.155 "	Board to Cable/Wire	200 µin	5.08 µm	1.75 A
3M Electronic Specialty N3314-6202RB		Header	All	16.56 mm	0.652 in	17.27 mm	0.68 in	Male Pin	Latch Lock/Eject Hooks	-55 C	105 ░C	Shrouded - 4 Wall	0.24 in	6.1 mm	0.1 in	2.54 mm	Solder	2	Copper Alloy	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	14	UL94 V-0	Through Hole	0.1 "	2.54 mm	Black	Gold	Tin	0.76 Ám	30 Áin	Square			Board to Cable/Wire	200 µin	5.08 µm	1.75 A	0.112 in	2.84 mm
