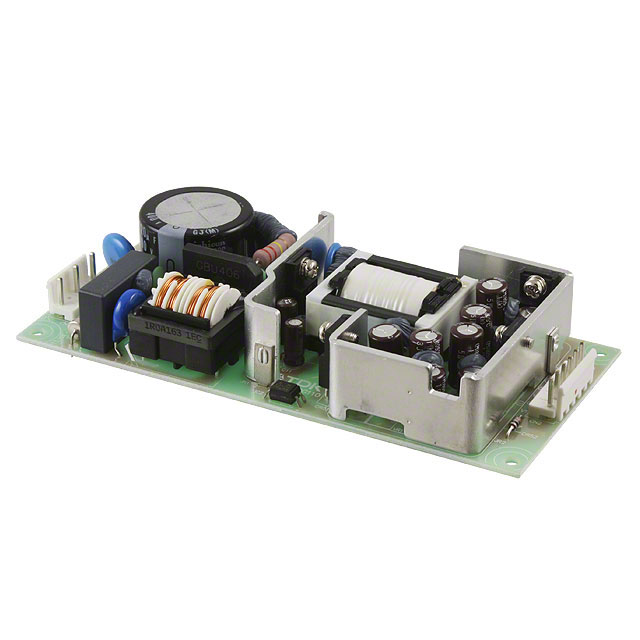

MTW60 Series
Manufacturer: TDK Corporation
Beta
⌘K
SWITCHING POWER SUPPLIES 60W 5V 5A, 15V 2A -15V 0.5A V1 ADJ
| Part | Minimum Load Required | Number of Outputs | Current - Output 1 | Current - Output 2 | Power (Watts) | Mounting Type | Applications | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Max] | Voltage - Input [Min] | Type | Voltage - Output 2 | Current - Output 3 | Voltage - Output 3 | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Output 1 | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 3 | 5 A | 2 A | 60 W | Chassis Mount | ITE (Commercial) | 76 % | 70 °C | -10 °C | 265 VAC | 85 VAC | Open Frame | 15 V | 500 mA | -15 V | 3000 V | 3.27 in | 185 mm | 26 mm | 1.02 " | 7.28 in | 83 mm | 5 V | Adjustable Output PFC Universal Input | |
TDK Corporation | 3 | 5 A | 2.5 A | 60 W | Chassis Mount | ITE (Commercial) | 76 % | 70 °C | -10 °C | 265 VAC | 85 VAC | Open Frame | 12 V | 500 mA | -12 V | 3000 V | 3.27 in | 185 mm | 26 mm | 1.02 " | 7.28 in | 83 mm | 5 V | Adjustable Output PFC Universal Input |
