K5at0 Series Series

Illuminated SMT Tact Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Illuminated SMT Tact Switch

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Features	Switch Function	Termination Style	Actuator Orientation	Actuator Height off PCB, Vertical [z]	Illumination	Outline [y]	Outline [x]	Illumination Type, Color	Switch Travel	Operating Force	Mounting Type	Circuit	Ingress Protection	Actuator Type	Mechanical Life
Littelfuse/Commercial Vehicle Products K5ATGN43GP	125 °C	-40 °C	0.1 A 32 VDC	Tactile Feedback	Off-Mom	Gull Wing	Top Actuated	6.1 mm	Illuminated	8 mm	8.4 mm	Green LED	0.5 mm	400 gf	Surface Mount	SPST-NO	IP40	Round Button	100000 Cycles
Littelfuse/Commercial Vehicle Products K5ATBU43GP	125 °C	-40 °C	0.1 A 32 VDC	Tactile Feedback	Off-Mom	Gull Wing	Top Actuated	6.1 mm	Illuminated	8 mm	8.4 mm	Blue LED	0.5 mm	400 gf	Surface Mount	SPST-NO	IP40	Round Button	100000 Cycles

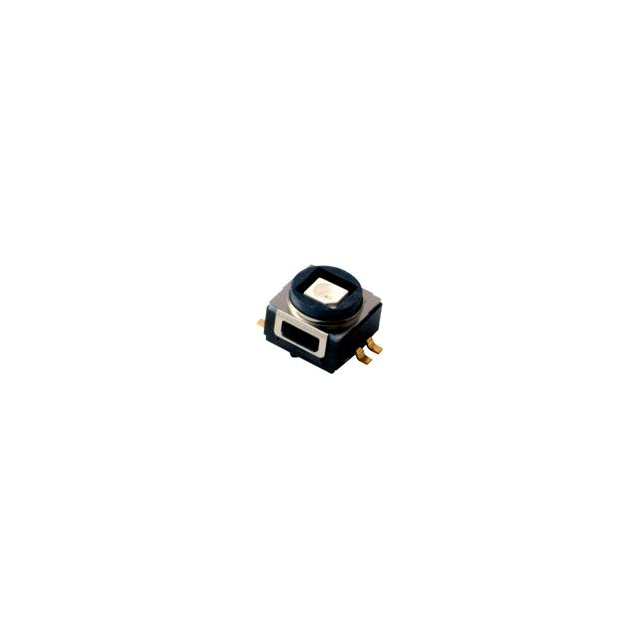

Littelfuse/Commercial Vehicle Products K5ATBU43GPR	125 °C	-40 °C	0.1 A 32 VDC	Tactile Feedback	Off-Mom	Gull Wing	Top Actuated	6.1 mm	Illuminated	8 mm	8.4 mm	Blue LED	0.5 mm	400 gf	Surface Mount	SPST-NO	IP40	Round Button	100000 Cycles

Catalog

Illuminated SMT Tact Switch

Key Features

• Excellent ergonomics: sharp tactile feel and audible click

• Reduced space usage on board "2 in 1"

• High bright LED’s

Description

C&K’s K5AT series illuminated SMT tact switch offers high, bright LED lights and reduced space usage on board "2 in 1." It’s excellent ergonomics, sharp tactile feel and audile click make it ideal for network infrastructure, telecom and medical applications that need to perform in the harshest environments.
