M3UGK Series

Catalog

IDC CABLE - MKS50K/MC50M/MCS50K

Part	Features	Connector Type	Pitch - Connector	Pitch - Connector	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Length	Pitch - Cable	Pitch - Cable	Color	Number of Rows [custom]	Contact Finish	Number of Positions	Shielding	Number of Positions [custom]	Length [x]	Length [x]
3M Electronic Specialty M3UGK-5006R	Flange (Card Edge) Polarizing Key Strain Relief (Socket)	Socket to Card Edge	0.1 in	2.54 mm	IDC	30 Áin	0.76 Ám	152.4 mm	0.5 '	6 "	0.05 in	1.27 mm	Multiple Ribbon	2	Gold	50	Unshielded
3M Electronic Specialty M3UGK-1006J	Flange (Card Edge) Polarizing Key Strain Relief (Socket)	Socket to Card Edge	0.1 in	2.54 mm	IDC	30 Áin	0.76 Ám	152.4 mm	0.5 '	6 "	0.05 in	1.27 mm		2	Gold	10	Unshielded

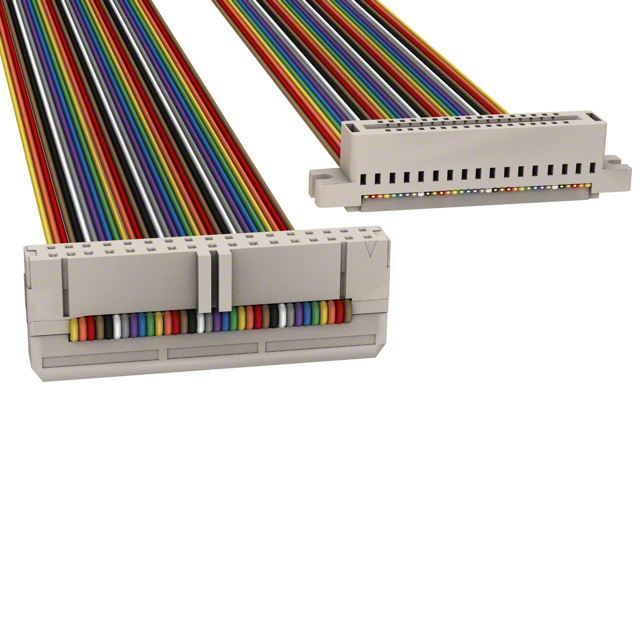

3M Electronic Specialty M3UGK-3406R	Flange (Card Edge) Polarizing Key Strain Relief (Socket)	Socket to Card Edge	0.1 in	2.54 mm	IDC	30 Áin	0.76 Ám	152.4 mm	0.5 '	6 "	0.05 in	1.27 mm	Multiple Ribbon	2	Gold		Unshielded	34

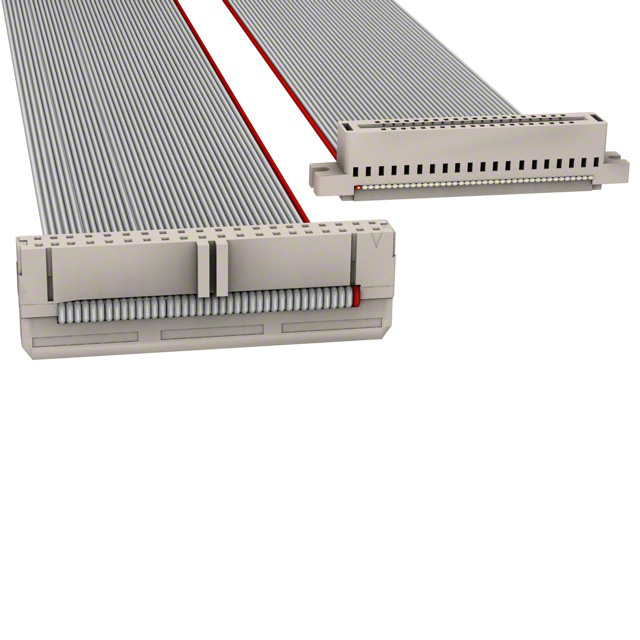

3M Electronic Specialty M3UGK-4006J	Flange (Card Edge) Polarizing Key Strain Relief (Socket)	Socket to Card Edge	0.1 in	2.54 mm	IDC	30 Áin	0.76 Ám	152.4 mm	0.5 '	6 "	0.05 in	1.27 mm		2	Gold	40	Unshielded
3M Electronic Specialty M3UGK-1606J	Flange (Card Edge) Polarizing Key Strain Relief (Socket)	Socket to Card Edge	0.1 in	2.54 mm	IDC	30 Áin	0.76 Ám	152.4 mm	0.5 '	6 "	0.05 in	1.27 mm		2	Gold	16	Unshielded
3M Electronic Specialty M3UGK-1660K	Flange (Card Edge) Polarizing Key Strain Relief (Socket)	Socket to Card Edge	0.1 in	2.54 mm	IDC	30 Áin	0.76 Ám	1.52 m	60 in		0.05 in	1.27 mm	Multiple Twisted Pair (Flat)	2	Gold	16	Unshielded
3M Electronic Specialty M3UGK-4040K	Flange (Card Edge) Polarizing Key Strain Relief (Socket)	Socket to Card Edge	0.1 in	2.54 mm	IDC	30 Áin	0.76 Ám	1.02 m	3.34 ft		0.05 in	1.27 mm	Multiple Twisted Pair (Flat)	2	Gold	40	Unshielded
3M Electronic Specialty M3UGK-1618R	Flange (Card Edge) Polarizing Key Strain Relief (Socket)	Socket to Card Edge	0.1 in	2.54 mm	IDC	30 Áin	0.76 Ám				0.05 in	1.27 mm	Multiple Ribbon	2	Gold	16	Unshielded		457.2 mm	1.5 ft
3M Electronic Specialty M3UGK-4036J	Flange (Card Edge) Polarizing Key Strain Relief (Socket)	Socket to Card Edge	0.1 in	2.54 mm	IDC	30 Áin	0.76 Ám	91.44 cm	3 ft		0.05 in	1.27 mm		2	Gold	40	Unshielded
3M Electronic Specialty M3UGK-4018J	Flange (Card Edge) Polarizing Key Strain Relief (Socket)	Socket to Card Edge	0.1 in	2.54 mm	IDC	30 Áin	0.76 Ám				0.05 in	1.27 mm		2	Gold	40	Unshielded		457.2 mm	1.5 ft
