EVQ-6Q Series

Catalog

SWITCH TACTILE SPST-NO 0.02A 15V

Part	Illumination	Actuator Orientation	Switch Function	Termination Style	Outline [x]	Outline [y]	Mechanical Life	Operating Force	Actuator Height off PCB, Vertical [z]	Switch Travel	Contact Rating @ Voltage [x]	Circuit	Mounting Type	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]
Panasonic Industrial Automation Sales EVQ-6Q202W	Non-Illuminated	Top Actuated	Off-Mom	J Lead	6.5 mm	6 mm	2000000 Cycles	80 gf	2.5 mm	0.2 mm	0.02 A 15 VDC	SPST-NO	Surface Mount	Standard	85 °C	-40 °C

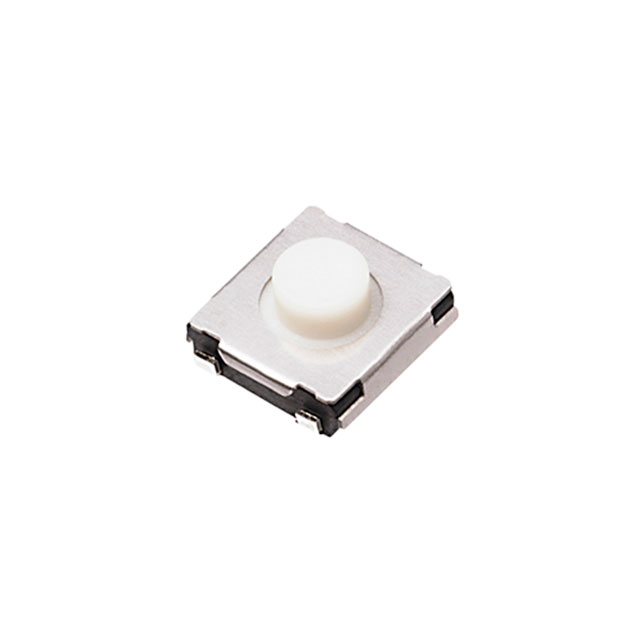

Panasonic Industrial Automation Sales EVQ-6Q201W	Non-Illuminated	Top Actuated	Off-Mom	J Lead	6.5 mm	6 mm	2000000 Cycles	80 gf	2 mm	0.2 mm	0.02 A 15 VDC	SPST-NO	Surface Mount	Standard	85 °C	-40 °C
