UDK Series
Manufacturer: Phoenix Contact
Beta
⌘K
DIN RAIL TERMINAL BLOCKS UDK 4 BU
| Part | Material Flammability Rating | Material - Insulation | Stripping Length | Color | Termination Style | Voltage - IEC | Type | Current - UL | Number of Positions | Voltage - UL | Number of Levels | Current - IEC | Terminal - Width [y] | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

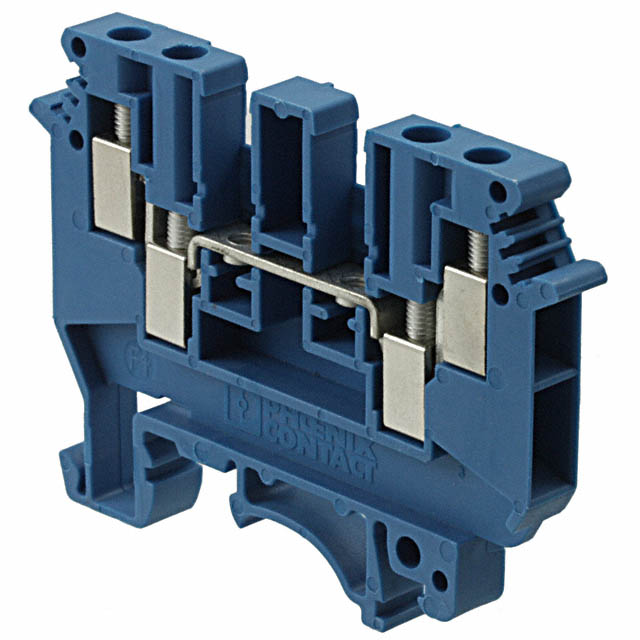

 Phoenix Contact | UL94 V-2 | Nylon Polyamide (PA) | 8 mm | Blue | Screw | 630 V | Feed Through | 35 A | 4 | 600 V | 1 | 32 A | 6.2 mm | 0.2 mm² | 6 mm² | 10 AWG | 30 AWG |
 Phoenix Contact | UL94 V-2 | Nylon Polyamide (PA) | 8 mm | Gray | Screw | 630 V | Feed Through | 4 | 1 | 6.2 mm | 0.2 mm² | 6 mm² | |||||

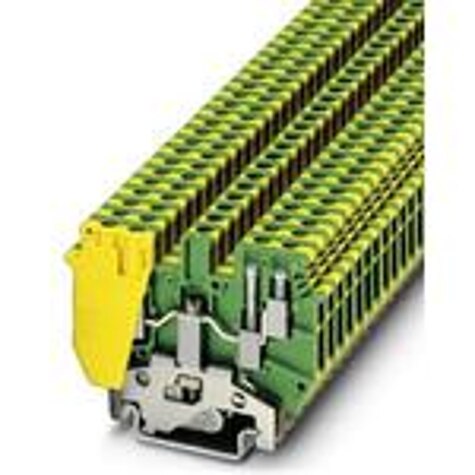

 Phoenix Contact | UL94 V-2 | Nylon Polyamide (PA) | 8 mm | Green Yellow | Screw | Ground Earth | 4 | 1 | 6.2 mm | 0.2 mm² | 6 mm² | 10 AWG | 22 AWG |
