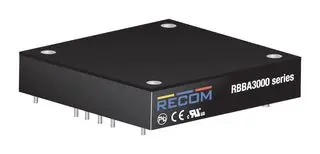

RABBA3000 Series
Non-Isolated DC/DC Converters 50A DC/DC-Converter INNOLINE' 1/2 Brick
Manufacturer: Recom Power
Catalog
Non-Isolated DC/DC Converters 50A DC/DC-Converter INNOLINE' 1/2 Brick
Beta
⌘K
Non-Isolated DC/DC Converters 50A DC/DC-Converter INNOLINE' 1/2 Brick
Non-Isolated DC/DC Converters 50A DC/DC-Converter INNOLINE' 1/2 Brick
Non-Isolated DC/DC Converters 50A DC/DC-Converter INNOLINE' 1/2 Brick
| Part | Type | Current - Output (Max) [Max] | Efficiency | Package / Case | Mounting Type | Voltage - Input (Max) [Max] | Power (Watts) | Applications | Number of Outputs | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Supplier Device Package | Voltage - Input (Min) [Min] | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | Non-Isolated PoL Module | 50 A | 96 % | Half Brick | Through Hole | 60 V | 3000 W | ITE (Commercial) | 1 | 0.51 in | 63.2 mm | 2.39 in | 2.49 " | 60.6 mm | 13 mm | Half Brick | 9 V | Adjustable Output Baseplate Remote On/Off Remote Sense | 85 °C | -40 C | 0 V | 60 V |
