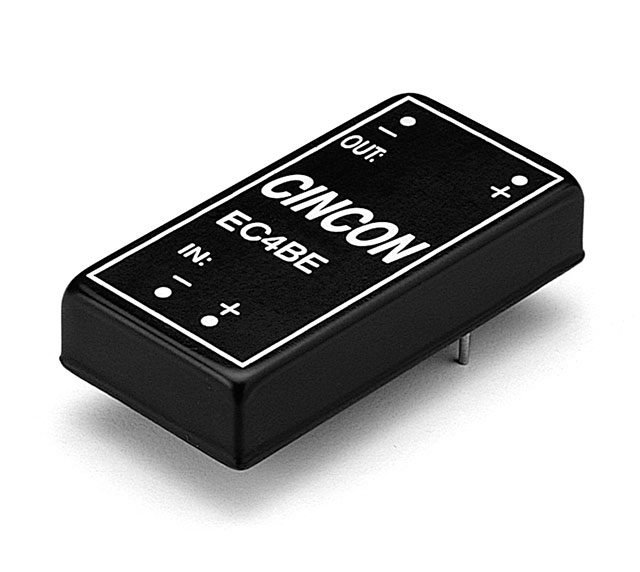

ec4be Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

CONVERTER: DC/DC; 10W; UIN: 9÷18VDC; UOUT: 5VDC; 5V; IOUT: 2A; DIP; THT

Part	Voltage - Output 1	Voltage - Input (Max) [Max]	Efficiency	Power (Watts)	Size / Dimension	Approval Agency	Type	Standard Number	Package / Case	Mounting Type	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Current - Output (Max) [Max]	Applications	Features	Number of Outputs	Current - Output (Max)	Voltage - Output 2	Current - Output (Max)
Cincon Electronics Co. LTD EC4BE01	5 V	18 V	76 %	10 W	0.4 in 10.2 mm 25.4 mm 50.8 mm	CE cURus	Isolated Module	60950-1	5-DIP Module 4 Leads	Through Hole	9 V	-40 °C	100 °C	500 V	2 A	ITE (Commercial)	SCP	1
Cincon Electronics Co. LTD EC4BE06	5 V	18 V	78 %	10 W	0.4 in 10.2 mm 25.4 mm 50.8 mm	CE cURus	Isolated Module	60950-1	5-DIP Module	Through Hole	9 V	-40 °C	100 °C	500 V		ITE (Commercial)	SCP	2	1 A	-5 V
Cincon Electronics Co. LTD EC4BE23	15 V	72 V		10 W	0.4 in 10.2 mm 25.4 mm 50.8 mm	CE cURus	Isolated Module	60950-1	5-DIP Module 4 Leads	Through Hole	36 V	-40 °C	100 °C	500 V	666 mA	ITE (Commercial)	SCP	1
Cincon Electronics Co. LTD EC4BE24	12 V	72 V		10 W	0.4 in 10.2 mm 25.4 mm 50.8 mm	CE cURus	Isolated Module	60950-1	5-DIP Module	Through Hole	36 V	-40 °C	100 °C	500 V		ITE (Commercial)	SCP	2	415 mA	-12 V	415 mA
Cincon Electronics Co. LTD EC4BE02	12 V	18 V	78 %	10 W	0.4 in 10.2 mm 25.4 mm 50.8 mm	CE cURus	Isolated Module	60950-1	5-DIP Module 4 Leads	Through Hole	9 V	-40 °C	100 °C	500 V	830 mA	ITE (Commercial)	SCP	1
Cincon Electronics Co. LTD EC4BE03	15 V	18 V	78 %	10 W	0.4 in 10.2 mm 25.4 mm 50.8 mm	CE cURus	Isolated Module	60950-1	5-DIP Module 4 Leads	Through Hole	9 V	-40 °C	100 °C	500 V	666 mA	ITE (Commercial)	SCP	1
Cincon Electronics Co. LTD EC4BE25	15 V	72 V		10 W	0.4 in 10.2 mm 25.4 mm 50.8 mm	CE cURus	Isolated Module	60950-1	5-DIP Module	Through Hole	36 V	-40 °C	100 °C	500 V		ITE (Commercial)	SCP	2	333 mA	-15 V
Cincon Electronics Co. LTD EC4BE04	12 V	18 V	78 %	10 W	0.4 in 10.2 mm 25.4 mm 50.8 mm	CE cURus	Isolated Module	60950-1	5-DIP Module	Through Hole	9 V	-40 °C	100 °C	500 V		ITE (Commercial)	SCP	2	415 mA	-12 V	415 mA
