EN3C4M Series

Catalog

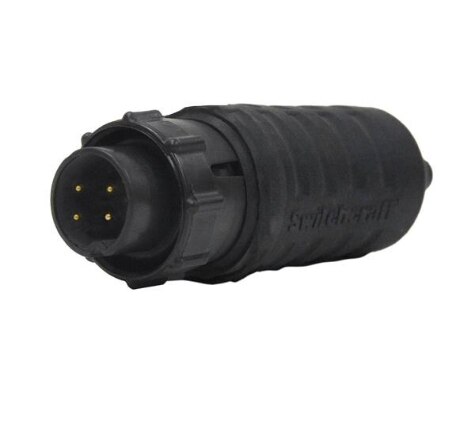

EN3 HARSH ENVIRONMENT CABLE END, 4-PIN, MALE, SOLDER CUP, BULK

Part	Features	Material Flammability Rating	Ingress Protection	Orientation	Backshell Material, Plating	Contact Material	Fastening Type	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Type	Color	Current Rating (Amps)	Shielding	Connector Type	Contact Finish - Mating	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Voltage Rating	Number of Positions	Applications	Insert Material
SWITCHCRAFT/CONXALL EN3C4MLX
SWITCHCRAFT/CONXALL EN3C4MCX	Backshell Cable Clamp Coupling Nut	UL94 V-0	IP66 IP68	Keyed	Thermoplastic	Copper Alloy	Bayonet Lock	Plastic	-40 C	65 °C	Crimp	Free Hanging (In-Line)	Black	7.5 A	Unshielded	Plug Male Pins	Gold	4.06 mm	0.265 in	0.16 "	6.73 mm	250 VAC	4	General Purpose Instrumentation Marine Medical	Elastomer
SWITCHCRAFT/CONXALL EN3C4MX	Backshell Cable Clamp Coupling Nut	UL94 V-0	IP66 IP68	Keyed	Thermoplastic	Copper Alloy	Bayonet Lock	Plastic	-40 C	65 °C		Free Hanging (In-Line)	Black	7.5 A	Unshielded	Plug Male Pins	Gold	4.06 mm	0.265 in	0.16 "	6.73 mm	250 VAC	4	General Purpose Instrumentation Marine Medical	Elastomer
SWITCHCRAFT/CONXALL EN3C4MCKX	Backshell Cable Clamp Coupling Nut	UL94 V-0	IP66 IP68	Keyed	Thermoplastic	Copper Alloy	Bayonet Lock	Plastic	-40 C	65 °C	Crimp	Free Hanging (In-Line)	Black	7.5 A	Unshielded	Plug Male Pins	Gold	4.06 mm	0.265 in	0.16 "	6.73 mm	250 VAC	4	General Purpose Instrumentation Marine Medical	Elastomer
SWITCHCRAFT/CONXALL EN3C4MKX	Backshell Cable Clamp Coupling Nut	UL94 V-0	IP66 IP68	Keyed	Thermoplastic	Copper Alloy	Bayonet Lock	Plastic	-40 C	65 °C		Free Hanging (In-Line)	Black	7.5 A	Unshielded	Plug Male Pins	Gold	4.06 mm	0.265 in	0.16 "	6.73 mm	250 VAC	4	General Purpose Instrumentation Marine Medical	Elastomer
