G832MB Series

Manufacturer: Amphenol ICC (Commercial Products)

Catalog

Catalog

BTB 64P P=0.8MM PLUG H=4.7MM GOL

...

Part	Number of Rows [custom]	Pitch	Pitch	Connector Type	Contact Finish	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Number of Positions	Mounting Type	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (Commercial Products) G832MB110642022HR	2	0.8 mm	0.031 in	Plug Outer Shroud Contacts	Gold	4.7 mm	0.185 in	5 mm 7 mm 9 mm 13 mm 17 mm	64	Surface Mount	Board Guide Pick and Place	Flash

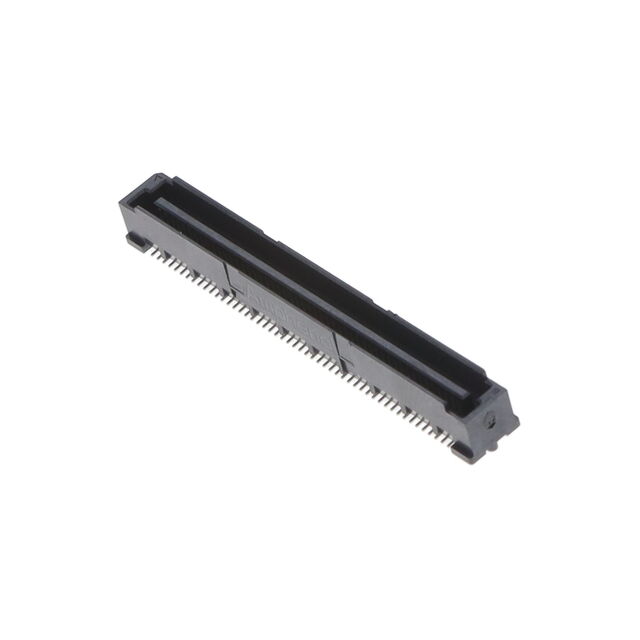

Amphenol ICC (Commercial Products) G832MB111003322HR	2	0.8 mm	0.031 in	Plug Outer Shroud Contacts	Gold	5.7 mm	0.224 in	6 mm 8 mm 10 mm 14 mm 18 mm	100	Surface Mount	Board Guide Pick and Place		0.203 çm	8 µin
Amphenol ICC (Commercial Products) G832MB030401022HR	2	0.8 mm	0.031 in	Receptacle Center Strip Contacts	Gold	3.7 mm	0.146 in	5 mm 6 mm 7 mm 8 mm	40	Surface Mount	Board Guide Pick and Place	Flash

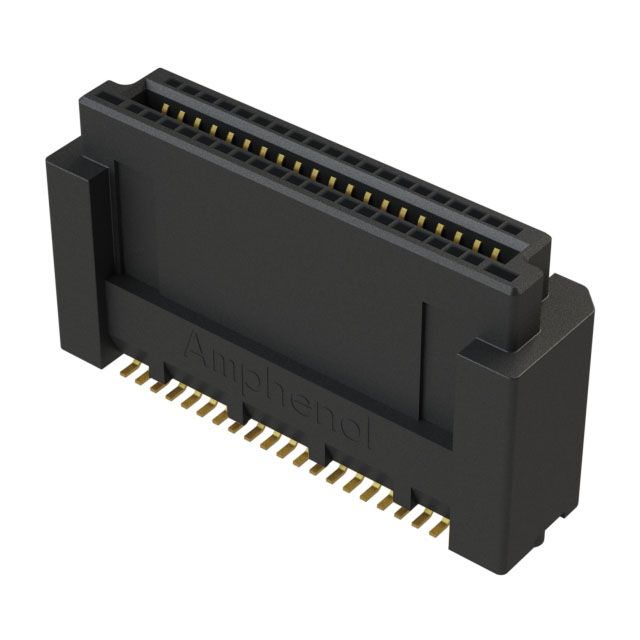

Amphenol ICC (Commercial Products) G832MB010406322HR	2	0.8 mm	0.031 in	Receptacle Center Strip Contacts	Gold	11.7 mm	0.461 in	13 mm 14 mm 15 mm 16 mm	40	Surface Mount	Board Guide Pick and Place		0.203 çm	8 µin
Amphenol ICC (Commercial Products) G832MB030805322HR	2	0.8 mm	0.031 in	Receptacle Center Strip Contacts	Gold	7.7 mm	0.303 in	9 mm 10 mm 11 mm 12 mm	80	Surface Mount	Board Guide Pick and Place		0.203 çm	8 µin
Amphenol ICC (Commercial Products) G832MB030807022HR	2	0.8 mm	0.031 in	Receptacle Center Strip Contacts	Gold			17 mm 18 mm 19 mm 20 mm	80	Surface Mount	Board Guide Pick and Place	Flash
Amphenol ICC (Commercial Products) G832MB010646322HR	2	0.8 mm	0.031 in	Receptacle Center Strip Contacts	Gold	11.7 mm	0.461 in	13 mm 14 mm 15 mm 16 mm	64	Surface Mount	Board Guide Pick and Place		0.203 çm	8 µin
Amphenol ICC (Commercial Products) G832MB030601022HR	2	0.8 mm	0.031 in	Receptacle Center Strip Contacts	Gold	3.7 mm	0.146 in	5 mm 6 mm 7 mm 8 mm	60	Surface Mount	Board Guide Pick and Place	Flash
Amphenol ICC (Commercial Products) G832MB010405022HR	2	0.8 mm	0.031 in	Receptacle Center Strip Contacts	Gold	7.7 mm	0.303 in	9 mm 10 mm 11 mm 12 mm	40	Surface Mount	Board Guide Pick and Place	Flash

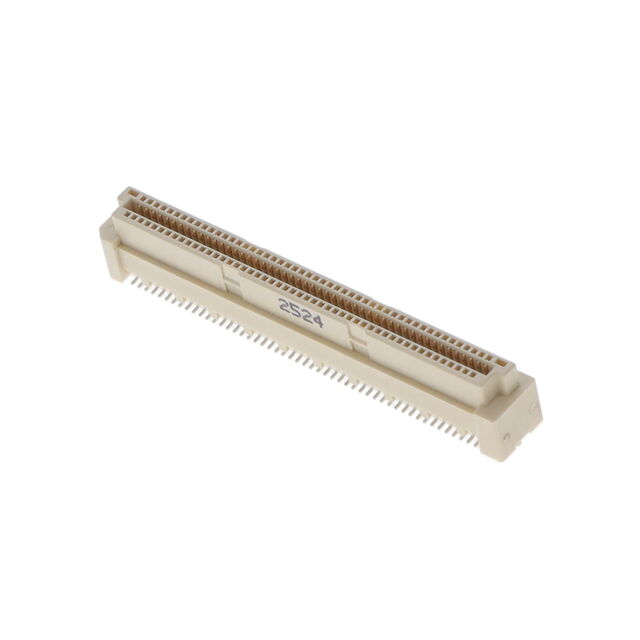

Amphenol ICC (Commercial Products) G832MB031005322HR	2	0.8 mm	0.031 in	Receptacle Center Strip Contacts	Gold	7.7 mm	0.303 in	9 mm 10 mm 11 mm 12 mm	100	Surface Mount	Board Guide Pick and Place		0.203 çm	8 µin
