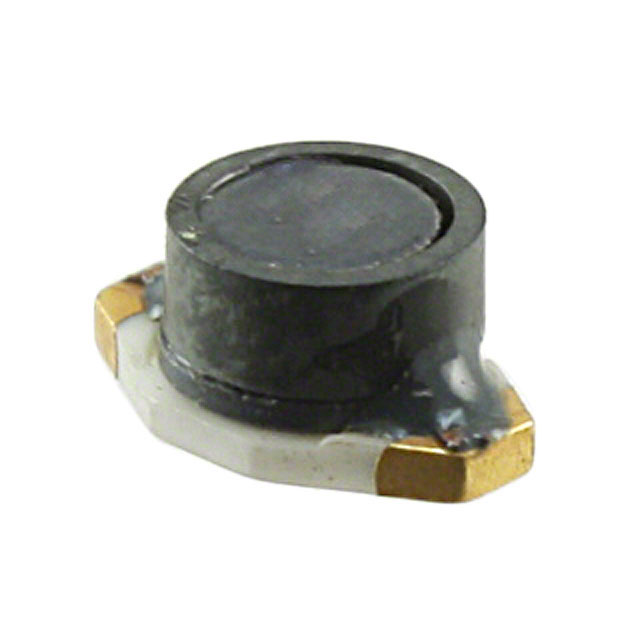

LMXS-D Series
Manufacturer: KYOCERA AVX
Beta
⌘K
POWER INDUCTORS - SMD 10UH 20%
| Part | DC Resistance (DCR) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Q @ Freq [custom] | Q @ Freq [custom] | Inductance | Inductance Frequency - Test | Shielding | Material - Core | Frequency - Self Resonant | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Type | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | 75 mOhm | 85 °C | -40 C | 1 A | 200 kHz | 40 | 10 µH | 100 kHz | Shielded | Ferrite | 38 MHz | Nonstandard | 0.26 in | 4.45 mm | 0.175 " | 6.6 mm | Surface Mount | Drum Core Wirewound | 20 % |
