83242 Series
Manufacturer: Belden Inc.
Beta
⌘K

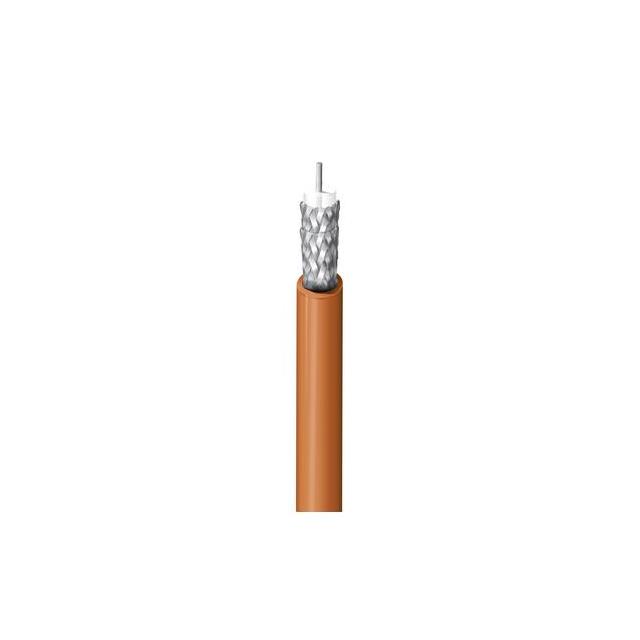

RG-142B/U COAX
| Part | VoP, Velocity of Propagation | Conductor Material | Dielectric Material | Shield Coverage | Shield Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Length | Length | Impedance | Wire Gauge | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Usage | Features | Cable Type | Conductor Strand | Cable Group | Jacket Color | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 70 | Copper Covered Silver Coated Steel | Polytetrafluoroethylene (PTFE) | 95 % | Copper Silver Coated | -70 °C | 200 °C | 2.95 mm | 0.116 in | 100 ' | 30.48 m | 50 Ohms | 19 AWG | Fluorinated Ethylene-Propylene (FEP) | 0.195 " | 4.95 mm | Double Braid | Aerospace | UV Resistant | Coaxial - Plenum | Solid | RG-142 | Brown | ||
Belden Inc. | 70 | Copper Covered Silver Coated Steel | Polytetrafluoroethylene (PTFE) | 95 % | Copper Silver Coated | -70 °C | 200 °C | 2.95 mm | 0.116 in | 50 Ohms | 19 AWG | Fluorinated Ethylene-Propylene (FEP) | 0.195 " | 4.95 mm | Double Braid | Aerospace | UV Resistant | Coaxial - Plenum | Solid | RG-142 | Brown | 152.4 m | 500 ft |
