77312 Series

Catalog

BERGSTIK

Part	Number of Rows	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Length - Mating	Contact Length - Mating	Insulation Color	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Contact Type	Material Flammability Rating	Mounting Type	Termination	Contact Material	Contact Length - Post	Contact Length - Post	Contact Shape	Contact Finish - Post	Insulation Height	Insulation Height	Contact Length - Mating [x]	Overall Contact Length	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length
Amphenol ICC (FCI) 77312-491LF	1	Thermoplastic	0.1 in	2.54 mm	7	0.505 in	12.83 mm	Black	Push-Pull	125 °C	-65 ░C	Unshrouded	Header	2 çm	78.7 çin	3 A	2.03 µm	80 µin	0.724 in	18.4 mm	4	Male Pin	UL94 V-0	Through Hole	Solder	Phosphor Bronze	3.02 mm	0.119 in	Square	Tin	0.1 in	2.54 mm

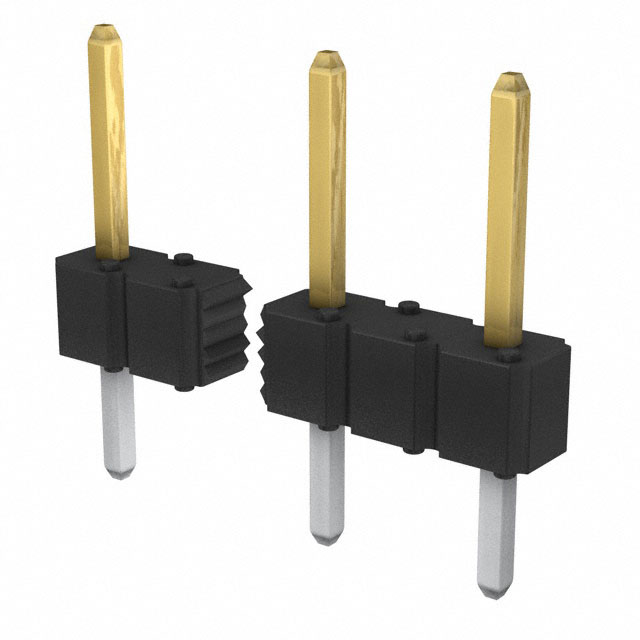

Amphenol ICC (FCI) 77312-179LF	1	Thermoplastic	0.1 in	2.54 mm	35		5.84 mm	Black	Push-Pull	125 °C	-65 ░C	Unshrouded	Header	2 çm	78.7 çin	3 A	0.76 Ám	30 Áin		11.81 mm	18	Male Pin	UL94 V-0	Through Hole	Solder	Phosphor Bronze			Square	Tin	0.1 in	2.54 mm	0.23 in	0.465 in	Gold GXT™	0.135 in	3.43 mm

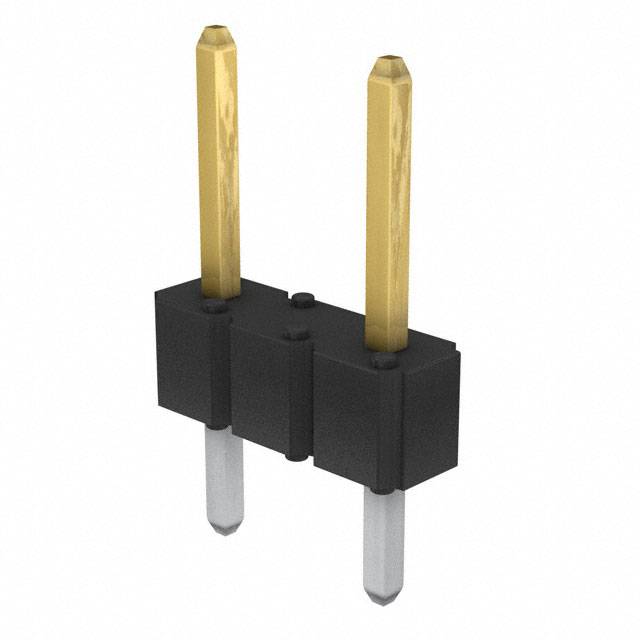

Amphenol ICC (FCI) 77312-150	1	Thermoplastic	0.1 in	2.54 mm		0.225 in	5.72 mm	Black	Push-Pull			Unshrouded	Header	2 çm	78.7 çin		0.76 Ám	30 Áin		11.3 mm	2	Male Pin	UL94 V-0	Through Hole	Solder	Phosphor Bronze			Square	Tin	0.1 in	2.54 mm		0.445 "	Gold GXT™	0.12 in	3.05 mm

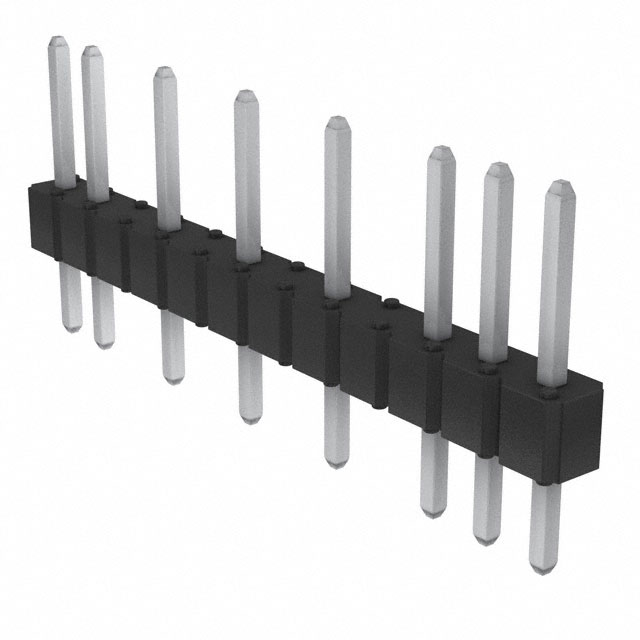

Amphenol ICC (FCI) 77312-483LF	1	Thermoplastic	0.1 in	2.54 mm	12		5.84 mm	Black	Push-Pull	125 °C	-65 ░C	Unshrouded	Header	2 çm	78.7 çin	3 A	2.03 µm	80 µin		11.81 mm	8	Male Pin	UL94 V-0	Through Hole	Solder	Phosphor Bronze			Square	Tin	0.1 in	2.54 mm	0.23 in	0.465 in		0.135 in	3.43 mm

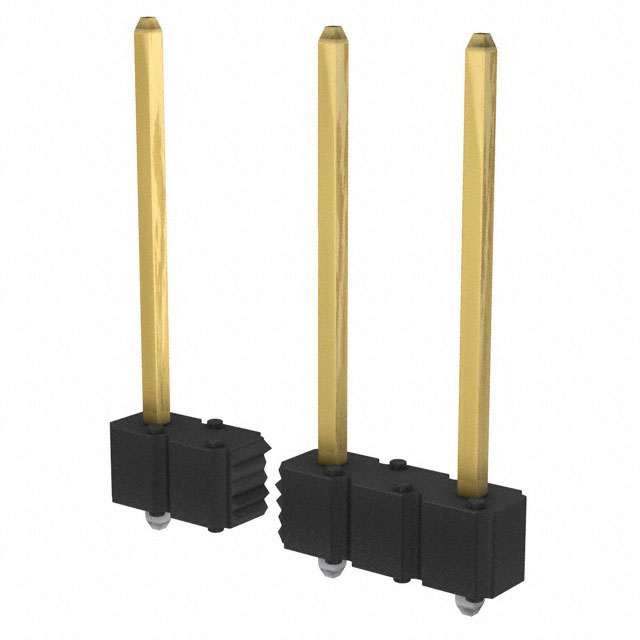

Amphenol ICC (FCI) 77312-187LF	1	Thermoplastic	0.1 in	2.54 mm		0.495 in	12.57 mm	Black	Push-Pull	125 °C	-65 ░C	Unshrouded	Header	2 çm	78.7 çin	3 A	0.76 Ám	30 Áin		0.626 in	9	Male Pin	UL94 V-0	Through Hole	Solder	Phosphor Bronze	0.8 mm	0.031 in	Square	Tin	0.1 in	2.54 mm			Gold GXT™			15.9 mm
Amphenol ICC (FCI) 77312-452LF	1	Thermoplastic	0.1 in	2.54 mm	13	0.225 in	5.72 mm	Black	Push-Pull	125 °C	-65 ░C	Unshrouded	Header	2 çm	78.7 çin	3 A	2.03 µm	80 µin		11.3 mm	7	Male Pin	UL94 V-0	Through Hole	Solder	Phosphor Bronze			Square	Tin	0.1 in	2.54 mm		0.445 "		0.12 in	3.05 mm
Amphenol ICC (FCI) 77312-193LF	1	Thermoplastic	0.1 in	2.54 mm		0.14 in	3.56 mm	Black	Push-Pull	125 °C	-65 ░C	Unshrouded	Header	2 çm	78.7 çin	3 A	0.76 Ám	30 Áin		9.14 mm	2	Male Pin	UL94 V-0	Through Hole	Solder	Phosphor Bronze			Square	Tin	0.1 in	2.54 mm		0.36 in	Gold GXT™	0.12 in	3.05 mm
Amphenol ICC (FCI) 77312-S87LF	1	Thermoplastic	0.1 in	2.54 mm		0.494 in	12.55 mm	Black	Push-Pull	125 °C	-65 ░C	Unshrouded	Header			3 A	0.38 µm	15 µin		0.626 in	9	Male Pin	UL94 V-0	Through Hole	Solder	Phosphor Bronze	0.8 mm	0.031 in	Square		0.1 in	2.54 mm			Gold GXT™			15.9 mm

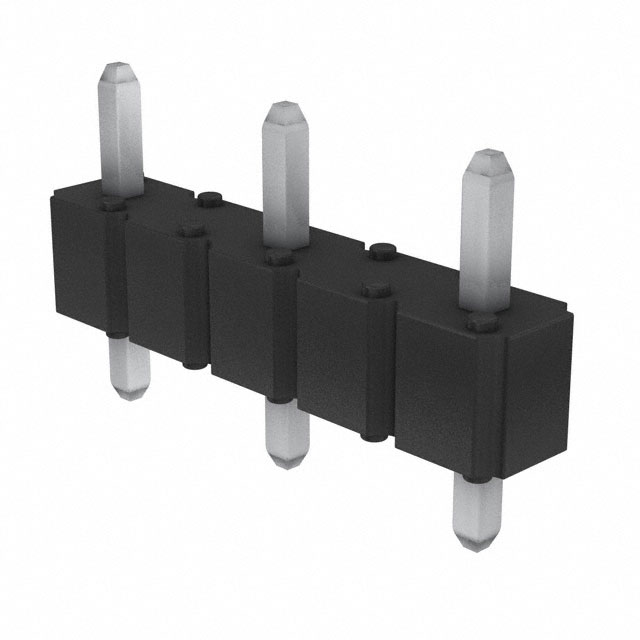

Amphenol ICC (FCI) 77312-476LF	1	Thermoplastic	0.1 in	2.54 mm		0.098 "	2.5 mm	Black	Push-Pull			Unshrouded	Header	2 çm	78.7 çin		2.03 µm	80 µin		6.84 mm	3	Male Pin	UL94 V-0	Through Hole	Solder	Phosphor Bronze			Square	Tin	0.1 in	2.54 mm		0.269 in		0.071 "	1.8 mm
Amphenol ICC (FCI) 77312-153LF	1	Thermoplastic	0.1 in	2.54 mm	35	0.225 in	5.72 mm	Black	Push-Pull	125 °C	-65 ░C	Unshrouded	Header	2 çm	78.7 çin	3 A	0.76 Ám	30 Áin		11.3 mm	18	Male Pin	UL94 V-0	Through Hole	Solder	Phosphor Bronze			Square	Tin	0.1 in	2.54 mm		0.445 "	Gold GXT™	0.12 in	3.05 mm
